23FS 80, FS 80 R, FS 85, FS 85 R
English / USA
: Place the clamp (5) on the handle
support.
: Insert screws (6) in the holes and
clamp (3) and tighten them
moderately.
: Line up the bike handle.
: Tighten down the screws firmly.

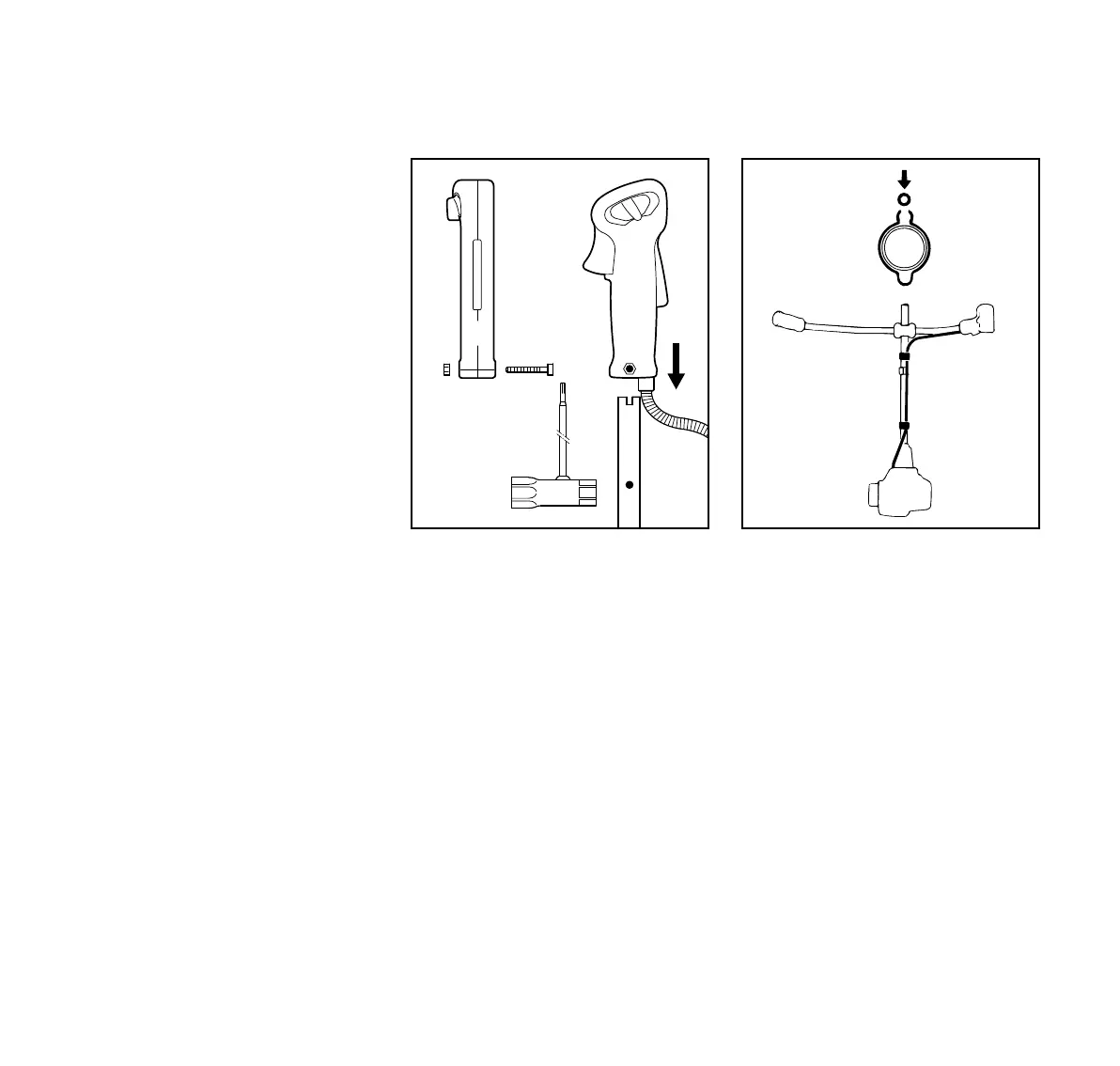

Fitting the control handle
: Release the screw (7). The nut (8)
remains in the control handle (9).
: Push the control handle onto the
bike handle (1) – the throttle trigger
(10) must point towards the
gearhead.
: Line up the holes (11).
: Fit screw in control handle and
tighten down firmly.
Fitting the throttle cable
Do not kink the throttle cable – make
sure the throttle trigger moves freely!
: Press the throttle cable (12) into the
retainers (13).
Adjust the throttle cable*
On control handles with slide*:
: Go to chapter "Adjusting the
Throttle Cable"
* see “Guide to Using this Manual”
11
7
9
10
1
11
002BA229 KN
8
12
13
12
13
13
393BA049 KN
