Stihl HL User Manual

19HL
English / USA
1 Cutting blades
2 Blade scabbard
3 Blade drive gear
4 Angle drive
5 Drive tube
6 Sliding sleeve
7 Adjusting lever
8 Quadrant
9 Bush
Definitions
1. Cutting Blades
Steel blades for cutting hedges and
shrubs.
2. Blade Scabbard
Covers and protects cutting blades
when hedge cutter is not in use.
3. Blade Drive Gear
Converts rotary movement of angle
drive into reciprocating movement
of cutting blades.
4. Angle Drive
Transmits rotary movement of drive
shaft to the blade drive gear.
5. Drive Tube (Boom)
Encloses and protects the drive
shaft between the coupling sleeve
and gearbox.
6. Sliding Sleeve*
Locks and unlocks the cutter bar
adjusting mechanism.
7. Adjusting Lever*
Used to set cutter bar to the
required angle.
8. Quadrant*
Locks the cutter bar in the required
position.
9. Bush
Locates drive tube in coupling
sleeve.
* see "Guide to Using this Manual"

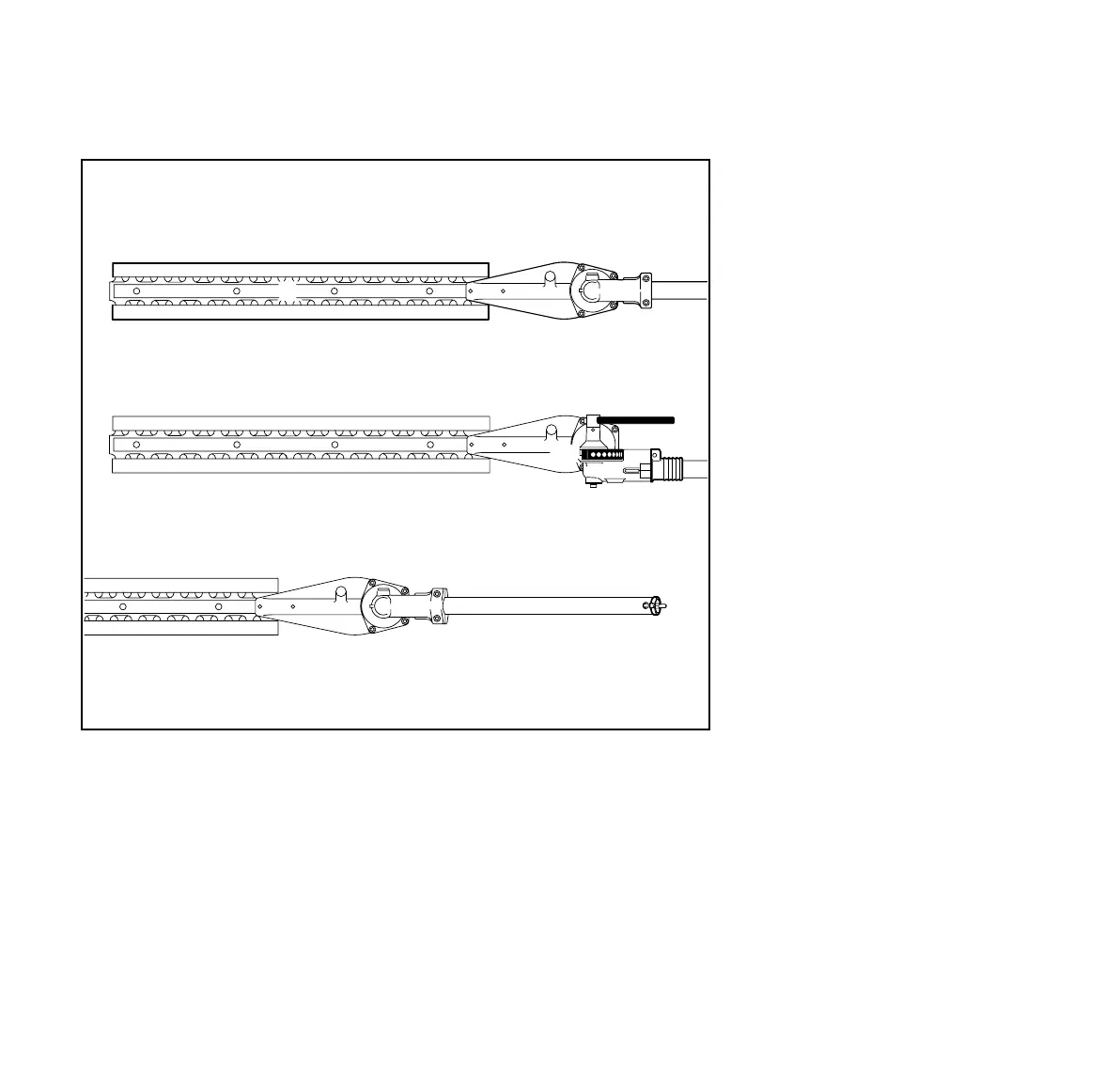

Main Parts
2
1
6
8
5
4
3
401BA009 KN
7
9
5
