Stihl HT User Manual

28
English / USA
HT
1 Oilomatic saw chain
2 Guide bar
3 Oil tank
4 Oil filler cap
5 Chain sprocket cover
6 Hook
7 Chain guard (scabbard)
8 Chain sprocket
9 Chain tensioner
Definitions
1. Oilomatic Saw Chain.
A loop consisting of cutters, tie
straps and drive links.
2. Guide Bar.
Supports and guides the saw chain.
3. Oil Tank.
Tank for chain lubricating oil.
4. Oil Filler Cap.
For closing the oil tank.
5. Chain Sprocket Cover.
Covers and protects the sprocket.
6. Hook.
For hooking the machine to a
branch and pulling branches away.
7. Chain Guard (Scabbard).
Covers chain for transportation and
during out-of-service periods.
8. Chain Sprocket.
The toothed wheel that drives the
saw chain.
9. Chain Tensioner.
Permits precise adjustment of chain
tension.

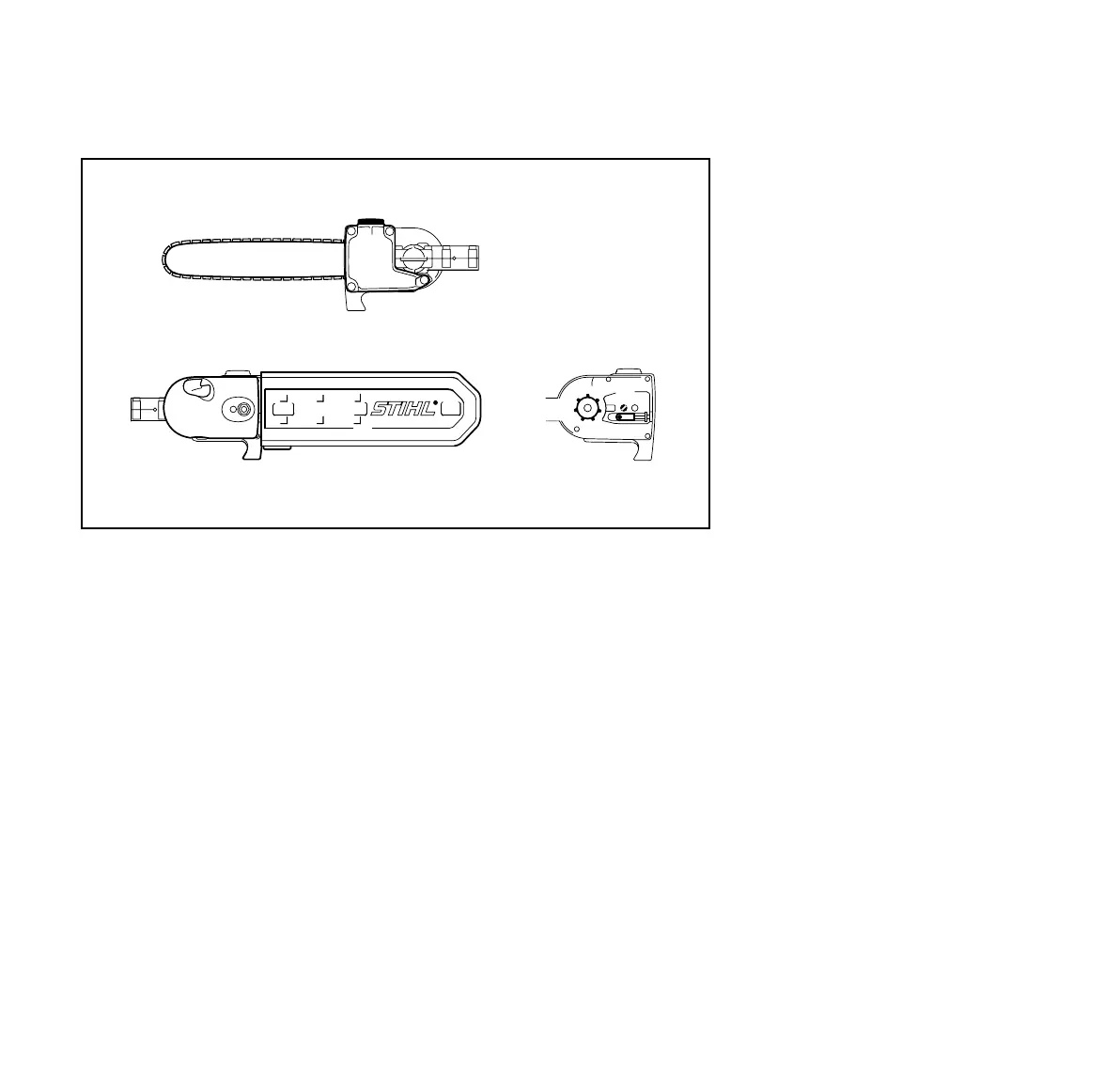

Parts and Controls
402BA025 KN
8
9
7
6
5
4
3
2
1

Stihl HT Specifications

General

Brand	Stihl
Model	HT
Category	Pole Saw
Language	English
