18 MS 311, MS 391

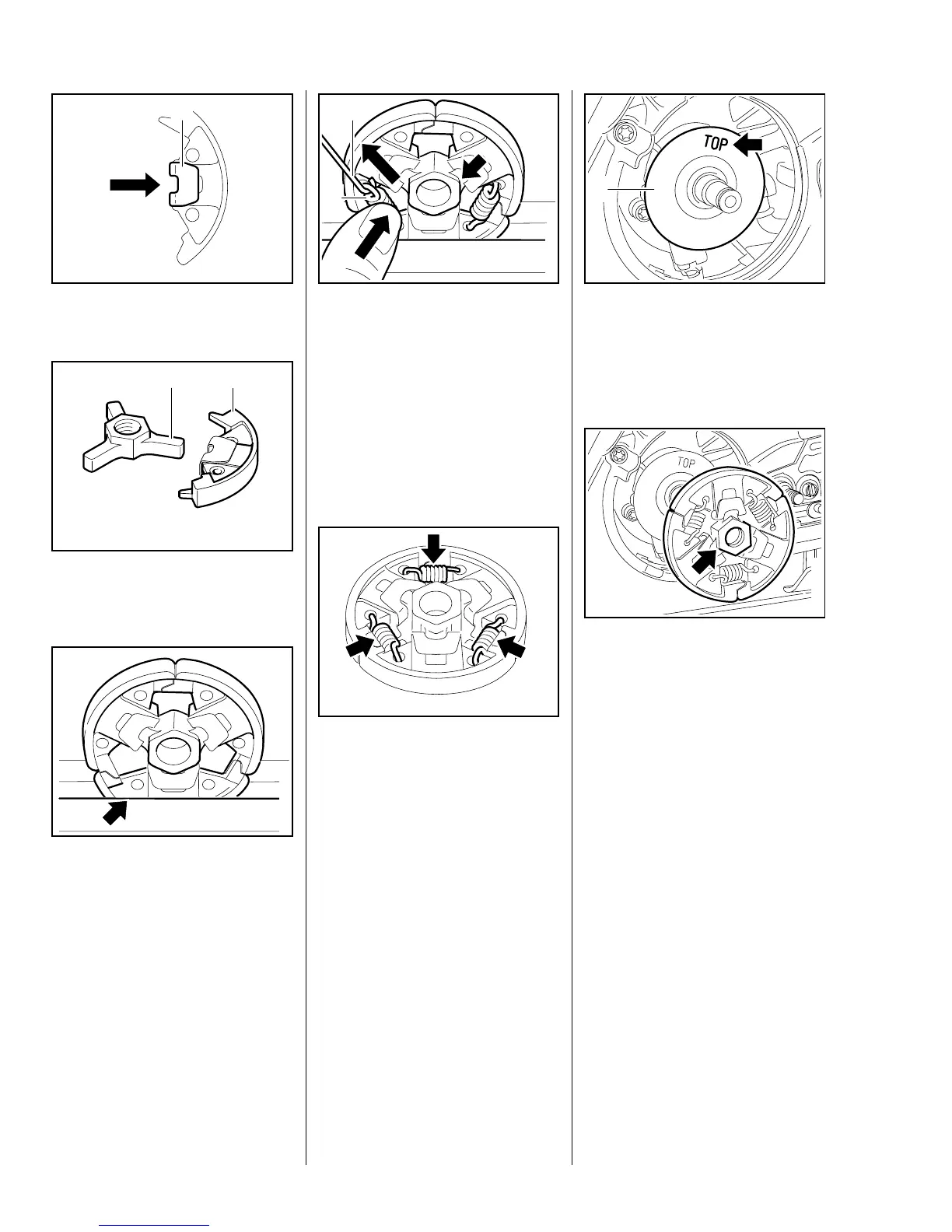

: Fit the retainers (1).
: Fit the clutch shoes (2) over the
arms (1).
: Clamp the clutch in a
vise (arrow).
4903RA007 TG
1
4903RA008 TG
1
2
4903RA009 TG
Attach the springs (1) on the side
with the raised hexagon (arrow).
: Attach one end of each spring (1)
to the clutch shoes.
: Use the hook (2) 5910 890 2800
to attach the other ends of the
springs and press them firmly into
the clutch shoes.
: Check the clutch – all springs
(arrows) must be properly
attached.
4903RA010 TG
1
2
4903RA011 TG
Make sure the washer (1) is in
place.
Installed position is correct when
TOP (arrow) faces outwards.
: Position the clutch on the
crankshaft stub so that the raised
hexagon (arrow) faces outwards.
4903RA012 TG
1
4903RA013 TG
