Stihl RLA 240 User Manual

0478-670-9909-A
46
English 8 Adjusting the Lawn Scarifier for the User

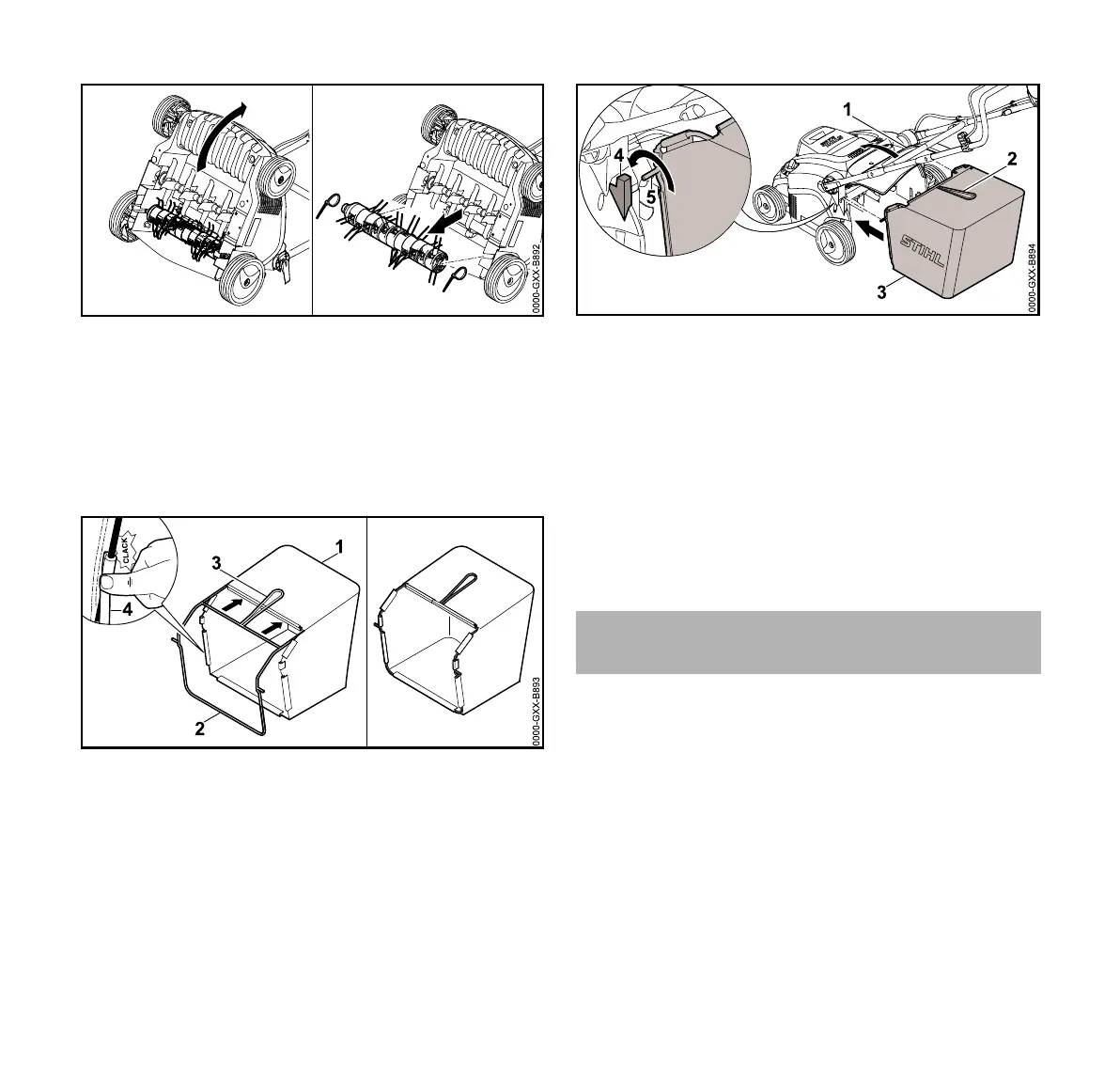

► Remove the cable ties.
► Remove the combing roller from the transport
compartment and keep it in a safe place.
7.3 Assembling, Attaching and Detaching the Grass
Catcher Box
7.3.1 Assembling the Grass Catcher Box
► Pull fabric (1) over frame (2) so that the base plate is on
the bottom and handle (3) is on the outside of the fabric.
► Press plastic profiles (4) onto the frame.
The plastic profiles engage with a click.
7.3.2 Attaching the Grass Catcher Box
► Switch the lawn scarifier off.
► Open discharge flap (1) and hold it open.
► Take hold of grass catcher box (3) by handle (2) and
suspend shaft (5) in mount (4).
► Set down discharge flap (1) on grass catcher box (3).
7.3.3 Detaching the Grass Catcher Box
► Switch the lawn scarifier off.
► Place the lawn scarifier on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the handle.
► Close the discharge flap.
8.1 Folding Up and Adjusting the Handlebar
► Switch the lawn scarifier off, pull out the activation key and
remove the battery.
► Place the lawn scarifier on a level surface.
8 Adjusting the Lawn Scarifier for the
User

Stihl RLA 240 Specifications

General

Type	Cordless Lawn Mower
Battery Voltage	36 V
Working Width	34 cm
Battery Type	Lithium-Ion
Cutting Height	25-75 mm
