Installation Notes
Stainless steel panels with handles are
available as accessories. Panels for an 80"
finished height are offered in classic, platinum
and carbon finishes. Panels for an 84" finished
height come in the classic finish only. Panels
can be ordered to include a lock. These
panels are not installed at the factory.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com.
Unit dimensions may vary by ±
1
/
8
".
Specifications
Overall Width 27"
Overall Height 80"
Overall Depth 24"
Door Clearance 25
1
/2"
Wine Storage Capacity 78 bottles*
Refrigerator Capacity 5.3 cu ft
Opening Width 27"
Opening Height 80"
Opening Depth 25"**
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight Glass Door – 410 lbs
Solid Door – 406 lbs
*750 ml bottles.
**Depth is 24" from the front of the unit to its back.
Your design may necessitate moving the unit
back, or cabinets forward to achieve a flush fit.
This will require a minimum opening depth of 25".
ANTI-TIP
BRACKET*
*PLACEMENT OF THE
ANTI-TIP BRACKET
SHOULD BE 24" (610)
FROM THE FRONT OF THE
UNIT WITHOUT PANELS
TO THE BACK OF THE
ANTI-TIP BRACKET.
25"
(635)
27"
(686)
25"
(635)
1
1
/2"
(38)
13
1
/2"
(343)

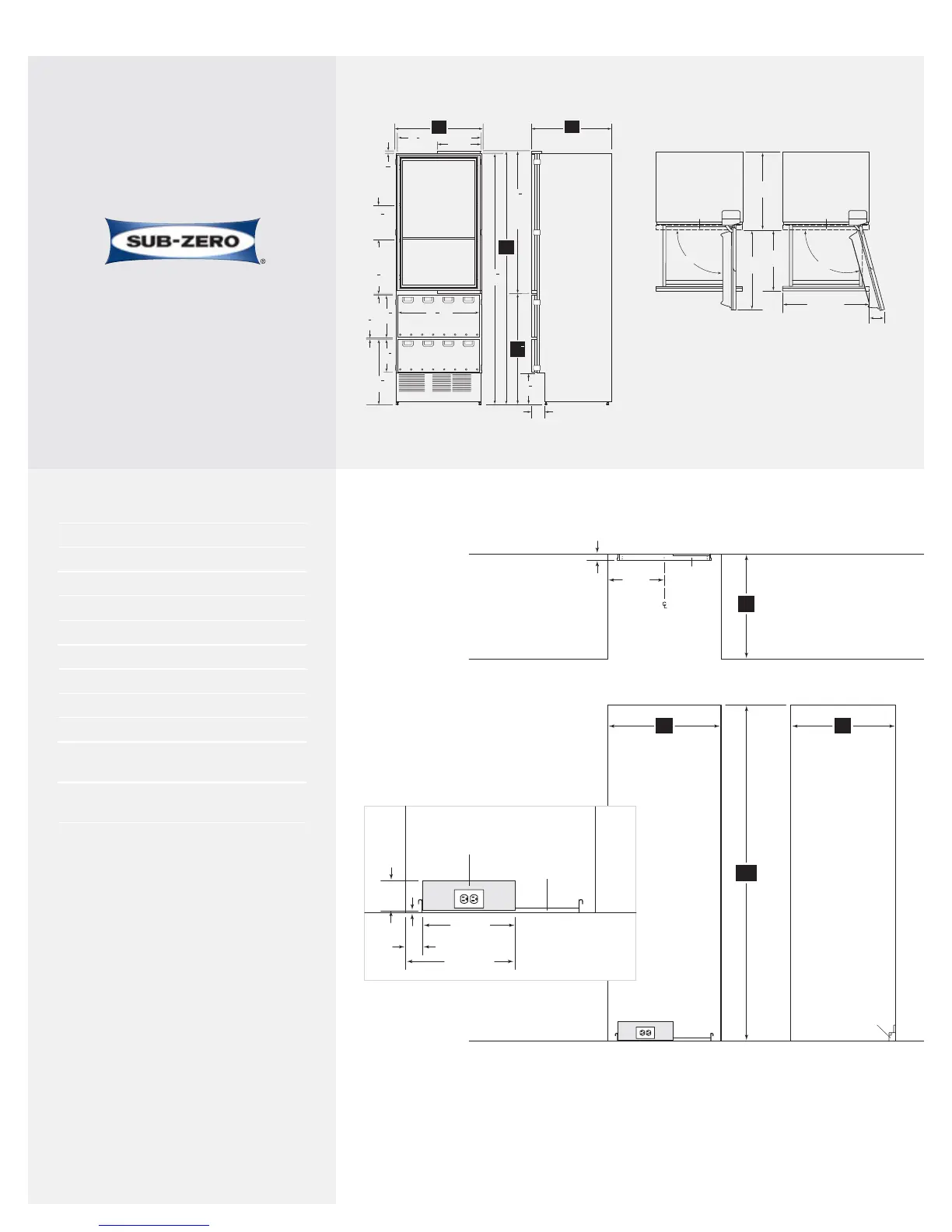

TOP VIEW
SIDE VIEW FRONT VIEW
ANTI-TIP
BRACKET
80"
(2032)
4
1
/2"
(114)
2
1
/2" (64)
15
1
/2" (394)
1
/4"
(6)
13" (330)
ANTI-TIP
BRACKET
LOCATE ELECTRICAL WITHIN
SHADED AREA – ORIENT GROUND
PRONG TO RIGHT AS SHOWN
NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO
PREVENT UNIT FROM TIPPING FORWARD
