Sungrow SG10RS User Manual

12
Symbol Explanation
Read the user manual before maintenance!
Burn danger due to the hot surface that may exceed 60℃.
Danger to life due to high voltages!
Do not touch live parts for 10 minutes after disconnection from
the power sources.
Only qualified personnel can open and maintain the inverter.
External protective grounding terminal.
* The table shown here is for reference only. The actual product received may differ.

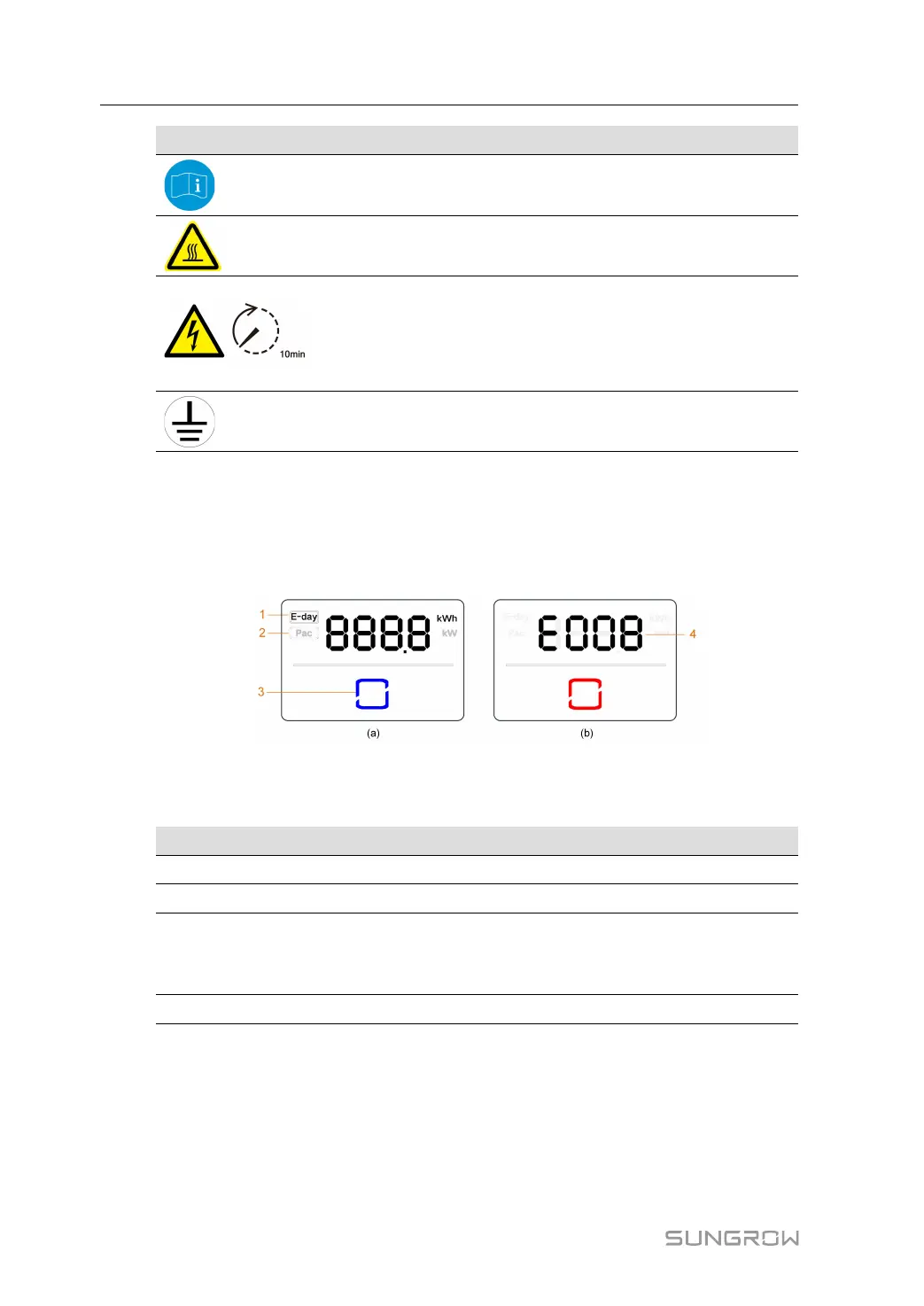

2.4 LED Panel
The LED panel with a display screen and an indicator is on the front of the inverter.
figure 2-4 LED Panel
(a) Normal state (b) Error state
No. Name
Description
1
E-day Today’s energy yield.
2 Pac
Current AC power.
3
LED
indicator
To indicate the working state of the inverter.
Touch it to switch the information in normal state or view multiple er-
ror codes in error state.
4 Error code
The error code in the figure is just an example.
• In normal state, the E-day and Pac information will be displayed alternately. Also you
can touch the LED indicator to switch the information.
• In error state, touch the LED indicator to view multiple error codes.
• If there is no operation for 5 minutes, the display screen will be off. Touch the LED indi-
cator to activate it.
2 Product Description User Manual

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
