Sungrow SG10RS User Manual

24

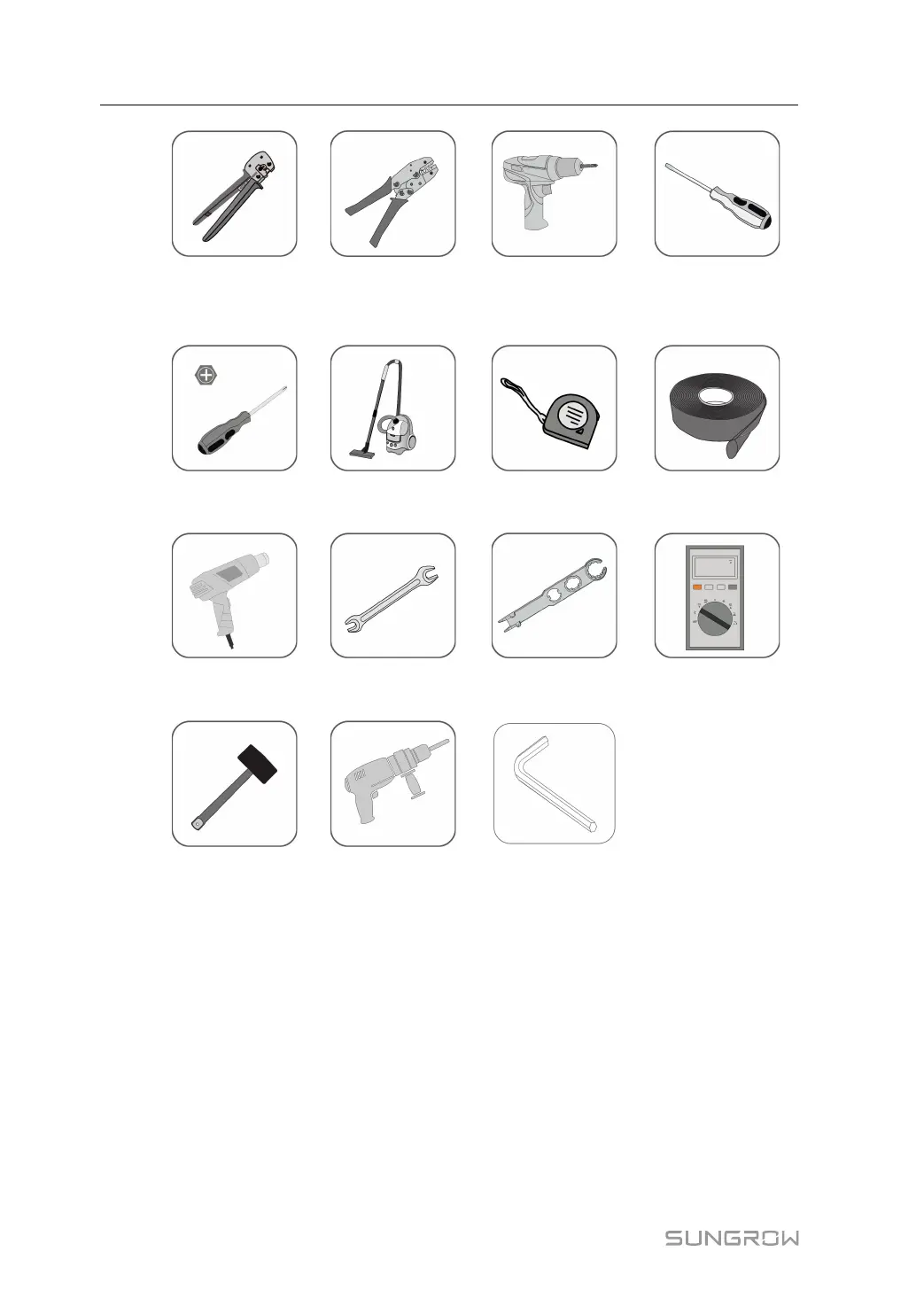

OT terminal crimp-
ing tool (4 mm
2
–6
mm
2
)
MC4 terminal
crimping tool (0.5
mm
2
–1.0 mm
2
)
Electric screwdriver
(M4, M5, M6)
Slotted screwdriver
(M2)
Phillips screwdriver
(M4)
Vacuum cleaner Measuring tape Heat shrink tubing
Heat gun Open-end wrench
(33 mm, 35 mm)
Connector wrench Multimeter (≥ 600
Vdc)
Rubber mallet Hammer drill (φ10) Allen wrench (T27)
4.4 Moving the Inverter
Before installation, remove the inverter from the packing case and move it to the installation
site. Follow the instructions below as you move the inverter:
• Always be aware of the weight of the inverter.
• Lift the inverter using the handles positioned on both sides of the inverter.
• Move the inverter by one or two people or by using a proper transport tool.
• Do not release the equipment unless it has been firmly secured.
4 Mechanical Mounting User Manual

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
