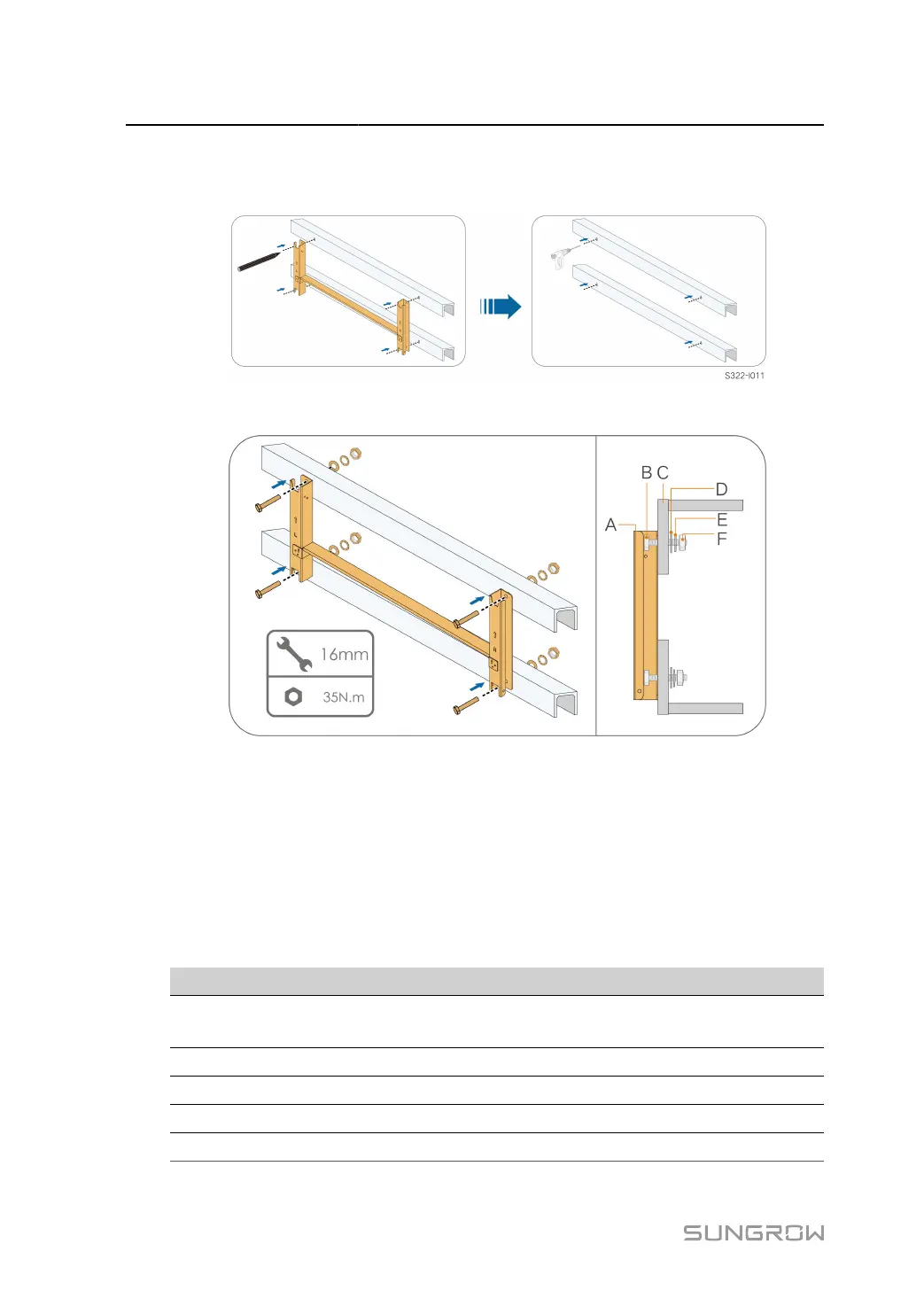

step 2 Level the assembled mounting-bracket by using the level, and mark the positions for drilling holes
on the PV bracket. Drill the holes by using a electric drill.
step 3
Secure the mounting-bracket with bolts.
(A) Mounting-bracket (B) Full threaded bolt (C) Metal bracket
(D) Flat washer (E) Spring washer (F) Hex nuts
- - End
4.5.2 Wall-Mounted Installation
Tools
Item Specification
Phillips screwdriver / electric screw
driver
M4
Marker -
Level -
Hammer drill Drill bit: φ12
wrench Opening: 16mm
28

Sungrow SG125CX-P2 Specifications

General

Max. DC Voltage	1100 V
Rated AC Power	125 kW
Max. DC Power	150 kW
Start-up Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. Short-circuit Current per MPPT	40 A
Max. AC Power	137.5 kW
Max. AC Current	198 A
Rated AC Voltage	400 V
Rated Grid Frequency	50/60 Hz
Total Harmonic Distortion	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Connection Type	MC4
Protection Class	IP66
Maximum DC Input Power	150 kW
DC Inputs per MPPT	2
Cooling Method	Smart forced air cooling
Operating Temperature Range	-25°C to +60°C
Humidity Range	0 - 100%
Communication	RS485, Ethernet
