Sungrow SG125CX-P2 User Manual

4 Mechanical Mounting User Manual
After removing the nut, spring washer, and flat washer, level the front of the expansion
tube with the wall. Otherwise, the mounting brackets will not stay steady on the wall.
step 4

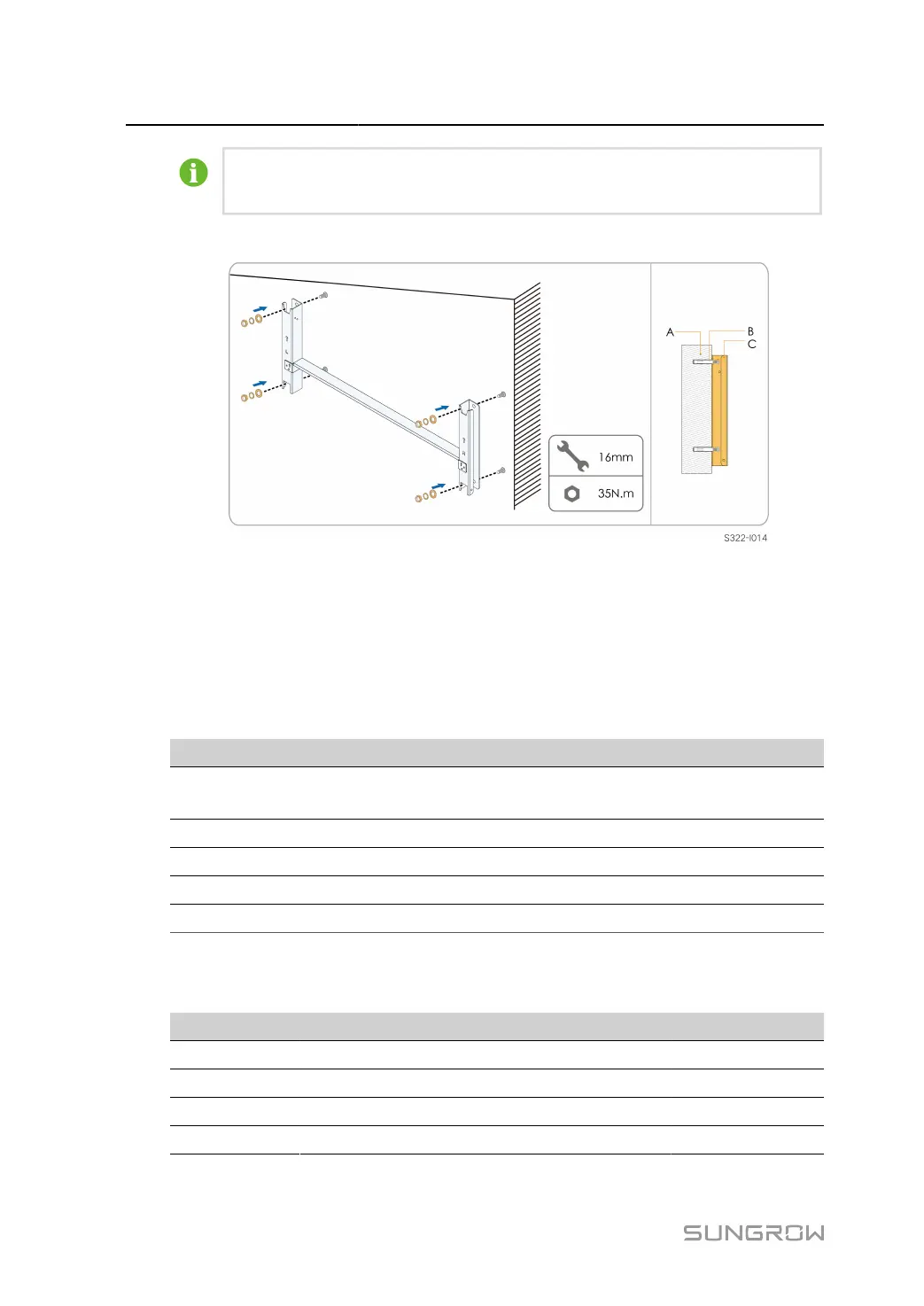

Install the mounting-bracket to the wall with the expansion bolts with the expansion bolts.
(A) Wall (B) Expansion bolt (C) Mounting-bracket
- - End
4.5.3 Pole-Mounting
Tools
Item Specification
Phillips screwdriver / electric screw
driver
M4
Marker —
Level —
Electric drill * Drill bit: φ12
wrench Opening: 16 mm
* Check whether other tools are needed according to the specification of clamp bolts.
Spare parts
Item Quantity Specification Source
Grub screw 2 M4×10 Delivery scope
Bolt assembly 4 M10 Delivery scope
Nut assembly 4 M10 Self-prepared
U-beam 2 — Self-prepared
30

Sungrow SG125CX-P2 Specifications

General

Max. DC Voltage	1100 V
Rated AC Power	125 kW
Max. DC Power	150 kW
Start-up Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. Short-circuit Current per MPPT	40 A
Max. AC Power	137.5 kW
Max. AC Current	198 A
Rated AC Voltage	400 V
Rated Grid Frequency	50/60 Hz
Total Harmonic Distortion	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Connection Type	MC4
Protection Class	IP66
Maximum DC Input Power	150 kW
DC Inputs per MPPT	2
Cooling Method	Smart forced air cooling
Operating Temperature Range	-25°C to +60°C
Humidity Range	0 - 100%
Communication	RS485, Ethernet
