5-56
SERVICE AND APPEARANCE CARE
78J01-03E

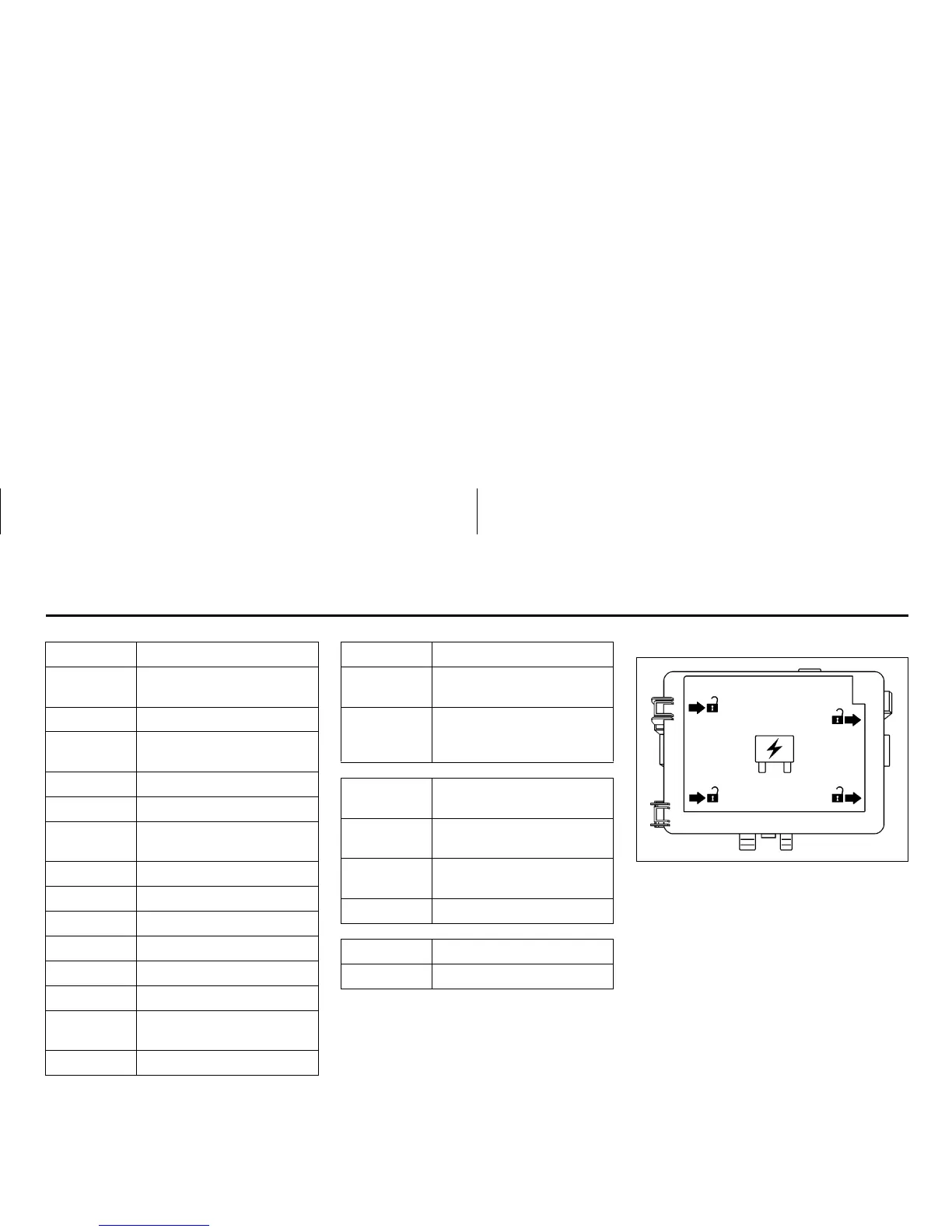

Engine Compartment Fuse Block
1869142
The engine compartment fuse block is
located on the driver side of the engine
compartment.
Refer to “Engine Compartment Overview”
in this section for more information on loca-
tion.
Fuses Usage
11
Passenger Side Turn Sig-
nal
12 Amplifier
13
Steering Wheel Illumina-
tion
SPARE Spare
14 Infotainment
15
Climate Control System,
Remote Function Actuator
16 Canister Vent
17 Radio
18 Cluster
19 Ignition Switch
20 Body Control Module
21 Not Used
22
Center High-Mounted
Stoplamp, Dimmer
23 Interior Lights
Relays Usage
RAP RLY
Retained Accessory
Power Relay
REAR
DEFOG
RLY
Rear Defogger Relay
Circuit
Breakers
Usage
PWR
WNDW
Power Windows
PWR
SEATS
Power Seats
EMPTY Empty
Misc. Usage
PLR Fuse Puller
