Engine Lubrication System: 1E-12

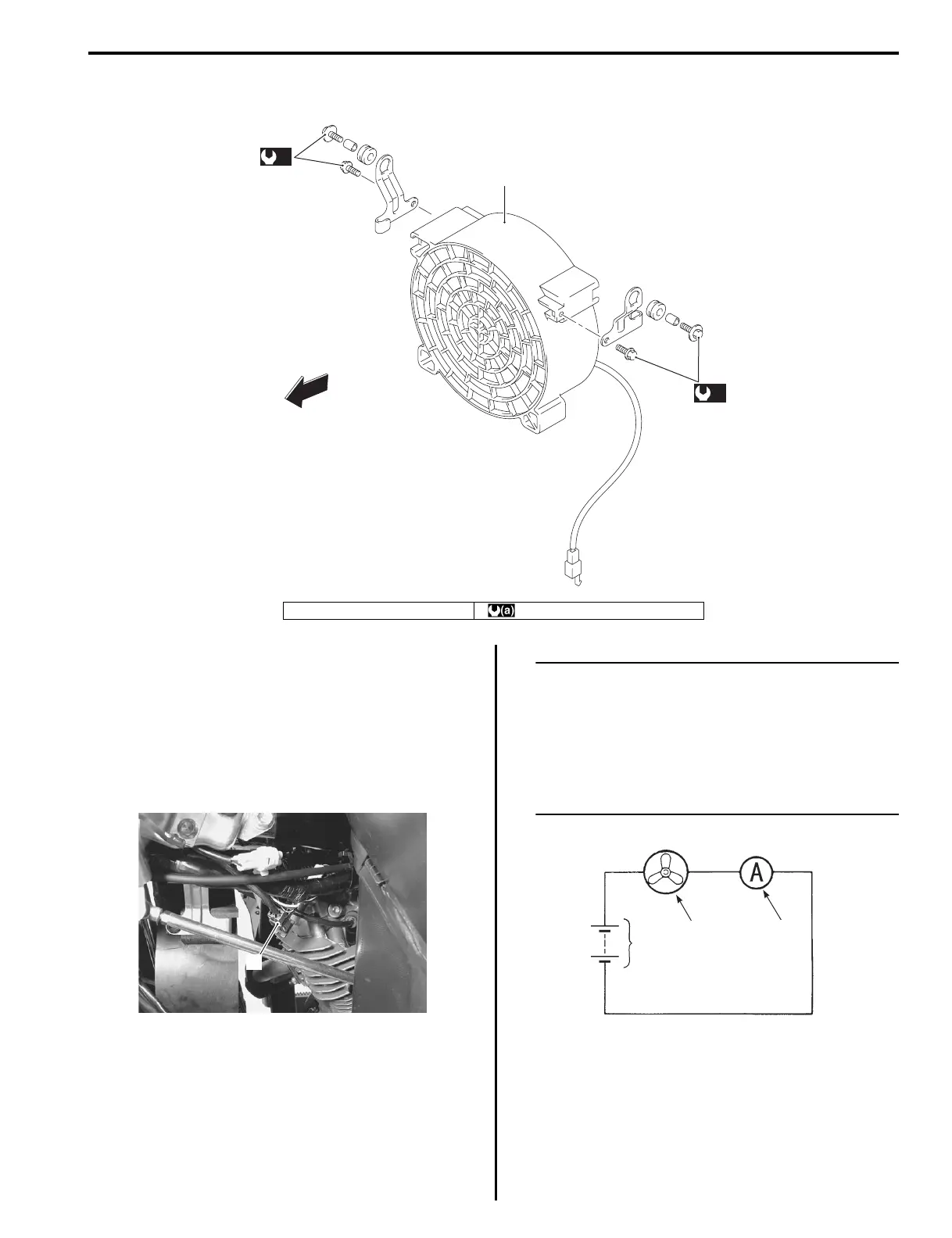

Cooling Fan Components
B827H11506012
Cooling Fan Inspection
B827H11506013
Inspect the cooling fan in the following procedures:
1) Remove the left inner fender. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
2) Disconnect the cooling fan motor lead wire coupler
(1).
3) Test the cooling fan motor for load current with a
ammeter connected as shown in the figure. If the fan
motor does not turn, replace the cooling fan
assembly with a new one. Refer to “Cooling Fan
Removal and Installation (Page 1E-13)”.
NOTE
• When making this test, it is not necessary
to remove the cooling fan.
• The voltmeter is for making sure that the
battery applies 12 V to the motor. With the
fan motor with electric motor fan running
at full speed, the ammeter should be
indicating not more than 8 A.
4) Connect the cooling fan motor coupler.
FWD
(a)
(a)
1
I827H1150049-01
1. Cooling fan assembly : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
1
I827H1150034-01
2
3
4
I718H1160048-01
