Suzuki LT-A400F Service Manual

2D-2 Wheels and Tires:
Repair Instructions

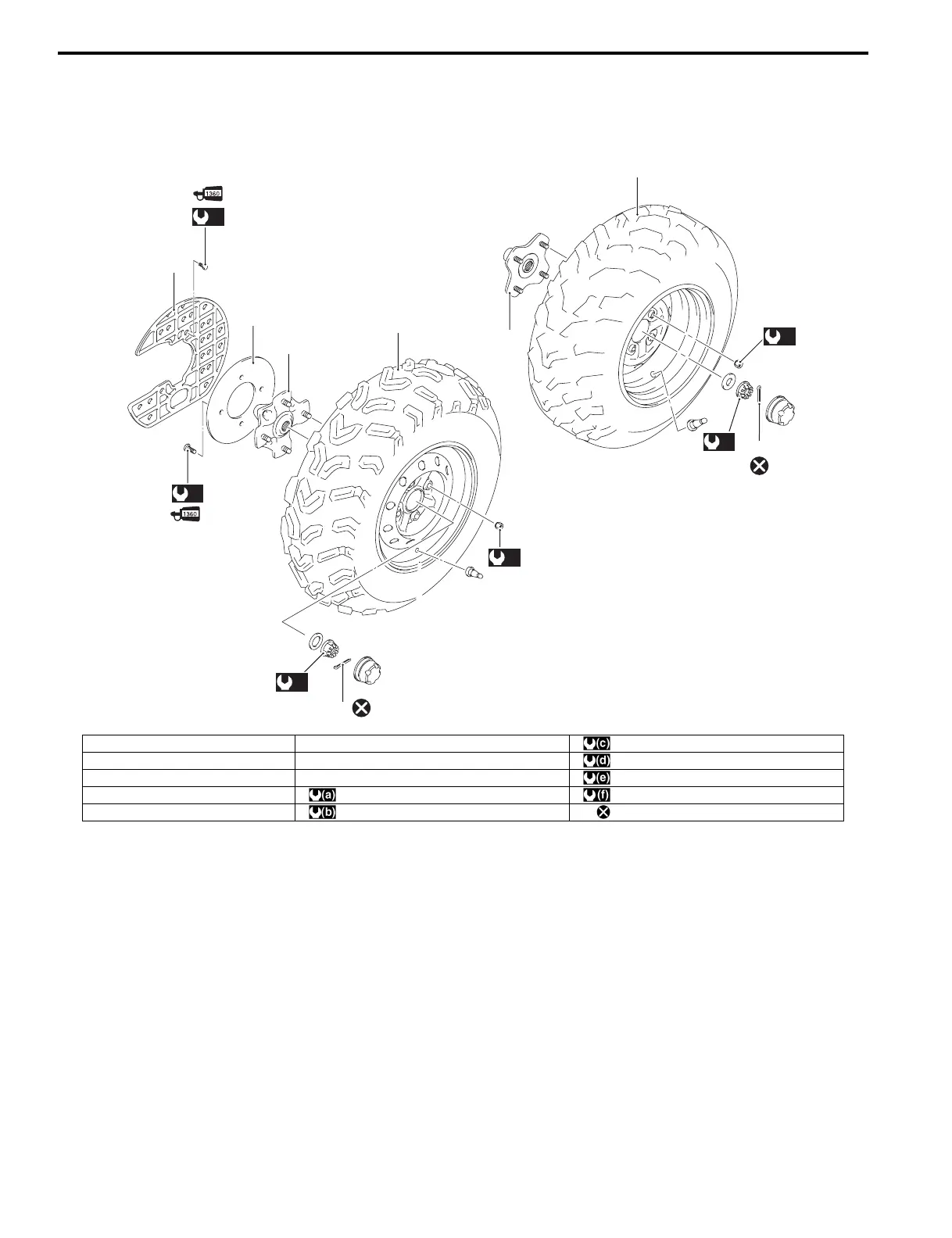

Front and Rear Wheel Components
B827H12406001
1
3
5
6
7
8
4
2
(b)
(a)
(c)
(e)
(d)
(f)
I827H1240004-02
1. Front tire 6. Rear tire : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Cotter pin 7. Cotter pin : 12 N⋅m (1.2 kgf-m, 8.5 lb-ft)
3. Front wheel hub 8. Rear wheel hub : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
4. Brake disc : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft) : 121 N⋅m (12.1 kgf-m, 87.5 lb-ft)
5. Disc cover : 110 N⋅m (11.0 kgf-m, 79.5 lb-ft) : Do not reuse.
