Differential: 3B-4
Front Drive (Differential) Gear Oil Level
Inspection (LT-A400F, LT-F400F)
B827H13206003
Refer to “Front Differential Gear Oil Inspection (LT-
A400F, LT-F400F) in Section 0B (Page 0B-9)”.
Front Drive (Differential) Gear Oil Replacement
(LT-A400F, LT-F400F)
B827H13206004
Refer to “Front Differential Gear Oil Inspection (LT-
A400F, LT-F400F) in Section 0B (Page 0B-9)”.

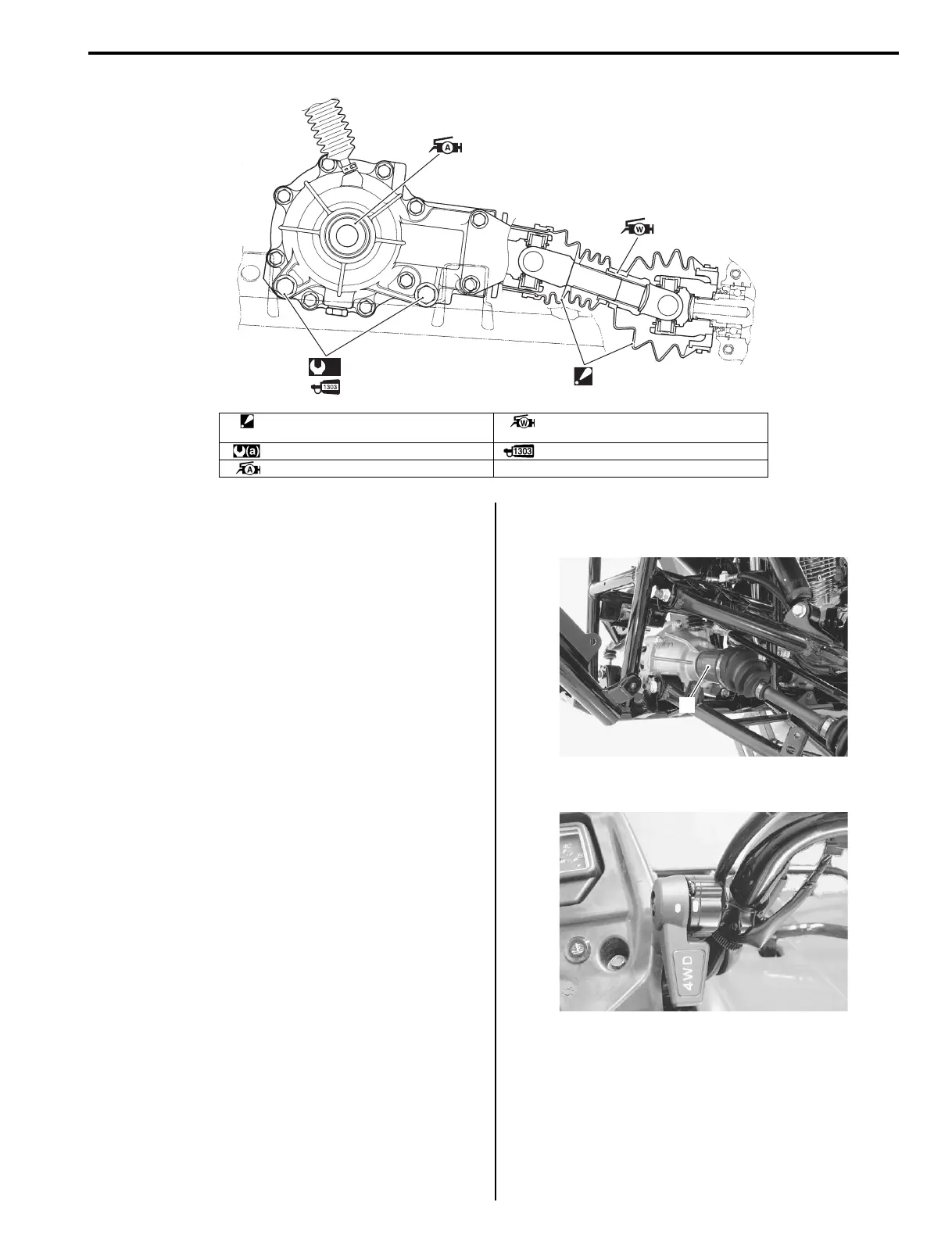

Front Drive (Differential) Assembly Removal
and Installation (LT-A400F, LT-F400F)
B827H13206005
Removal
1) Drain front differential gear oil. Refer to “Front
Differential Gear Oil Inspection (LT-A400F, LT-
F400F) in Section 0B (Page 0B-9)”.
2) Remove the inner fenders. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
3) Remove the steering knuckles. Refer to “Front
Wheel Hub / Steering Knuckle Removal and
Installation in Section 2B (Page 2B-3)”.
4) Hold the inboard joint (1) of the drive shaft and tug
the drive shaft horizontally.
5) Set the transfer selection lever to 4WD position.
1
(a)
I827H1320002-02
1. Propeller shaft boot
: P-24 only
: Apply water resistance grease.
:45 N⋅m (4.5 kgf-m, 32.5 lb-ft) : Apply thread lock to the thread part.
: Apply grease.
1
I827H1320003-01
I827H1320004-01
To Next Page
