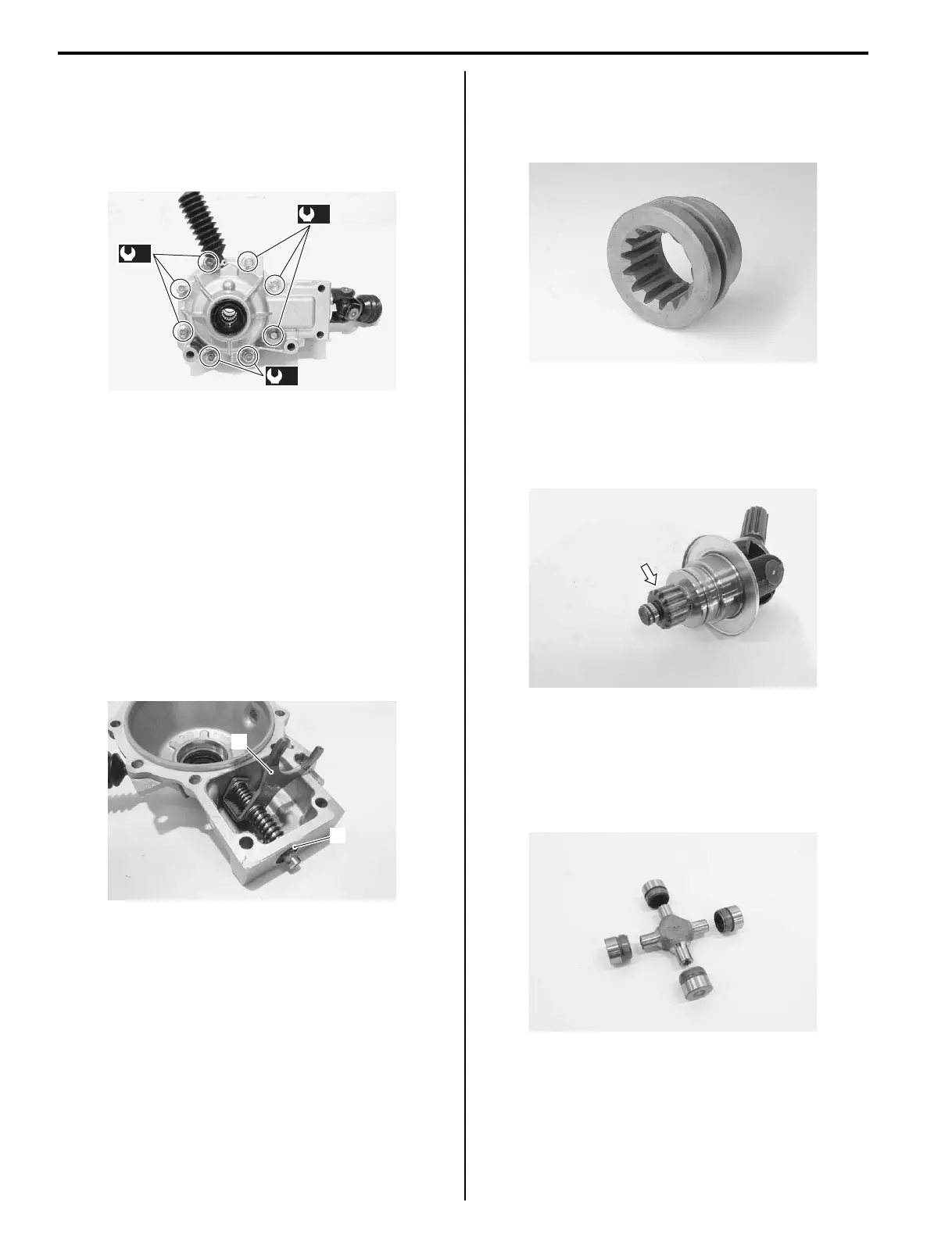

3B-13 Differential:
• Tighten the front drive (differential) case cover bolts to
the specified torque.
Tightening torque
Front drive (differential) gear case cover bolt (a):
23 N·m (2.3 kgf-m, 16.5 lb-ft)
Front Drive (Differential) Related Parts
Inspection (LT-A400F, LT-F400F)
B827H13206007
Refer to “Front Drive (Differential) Assembly
Disassembly and Assembly (LT-A400F, LT-F400F)
(Page 3B-5)”.
2WD / 4WD Shifting Fork
Inspect the shifting fork (1) for wear and damage. If any
wear or damage is found, replace the shifting fork with
new one. If the shifting fork is damaged, inspect the
groove of the shifting sleeve.
Also, inspect the shifting fork shaft oil seal (2) for wear or
damage.
2WD/4WD Shifting Sleeve
Inspect the 2WD/4WD shifting sleeve for wear or
damage. If any defects are found, replace the 2WD/4WD
shifting sleeve with new one.
Universal Joint Yoke
Inspect the splines of universal joint for wear or damage.
If any wear or damage is found, replace the universal
joint yoke with a new one.
Universal Joint
Inspect the universal joint and outer surface of the
bearing for scuffing, wear and damage. If any defects
are found, replace the bearings and universal joint as a
set.
(a)
(a)
(a)
I827H1320044-02
1
2
I827H1320045-01
I831G1320054-01
I827H1320046-02
I827H1320047-01
To Next Page
