Suzuki LT-A400F Service Manual

Transfer: 3C-16

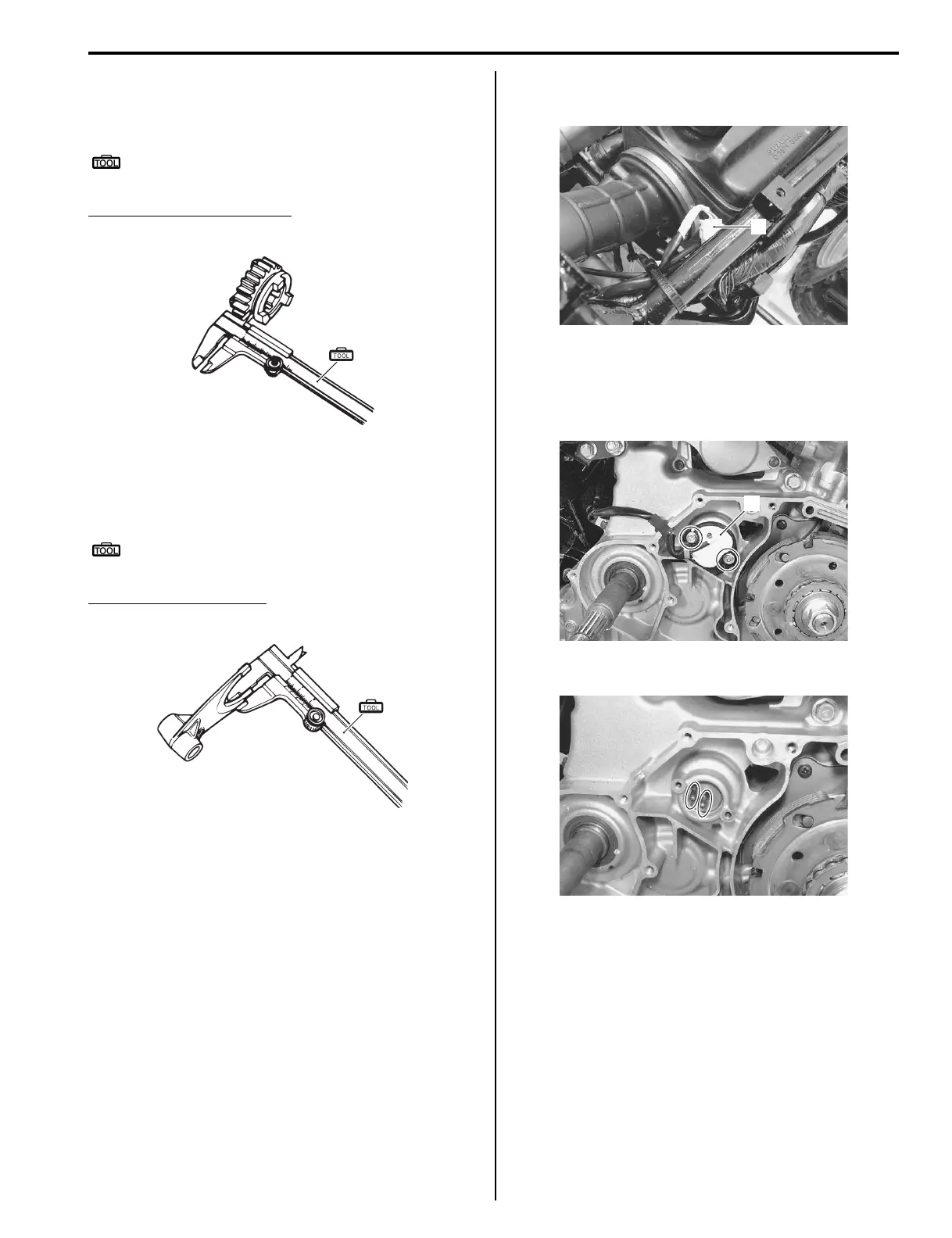

Gearshift Fork Groove Width
Measure the gearshift fork groove width using the
vernier calipers.
Special tool
(A): 09900–20102 (Vernier calipers (1/20 mm,
200 mm))
Gearshift fork groove width
Standard (Transfer): 5.5 – 5.6 mm (0.217 – 0.220 in)
Gearshift Fork Thickness
Measure the gearshift fork thickness using the vernier
calipers.
Special tool
(A): 09900–20102 (Vernier calipers (1/20 mm,
200 mm))
Gearshift fork thickness
Standard (Transfer): 5.3 – 5.4 mm (0.209 – 0.213 in)
Gear Position (GP) Switch Inspection
B827H13306012
Refer to “Gear Position Switch Inspection in Section 1I
(Page 1I-8)”.
Gear Position (GP) Switch Removal and
Installation (LT-A400/F)
B827H13306013
Removal
1) Turn the ignition switch OFF.
2) Remove the rear fender. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
3) Disconnect the gear position switch lead wire
coupler (1).
4) Remove the drive V-belt inner cover. Refer to “Clutch
Shoe Removal and Installation in Section 5A
(Page 5A-16)”.
5) Remove the gear position switch (2).
6) Remove the switch contacts and springs.
(A
)
I649G1520057-03
(A)
I649G1520058-03
1
I827H1190029-01
2
I827H1330034-01
I827H1330062-01
