Automatic Transmission: 5A-22

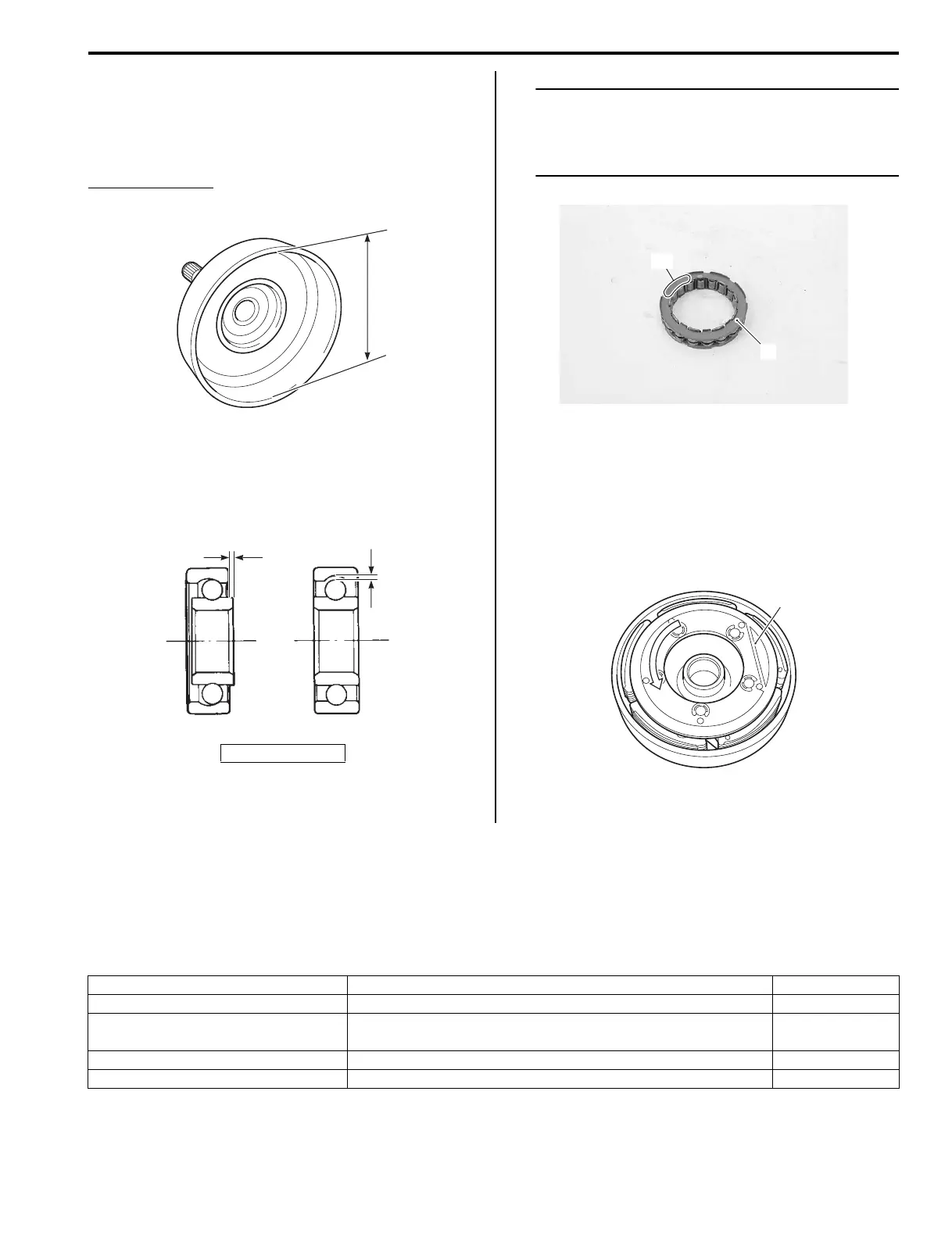

Clutch Wheel
Inspect the clutch wheel for any abnormal surface
damage. Measure the inside diameter of the clutch
wheel. If the measurement exceeds the service limit,
replace the clutch wheel with a new one.
Clutch wheel I.D.
Service limit: 140.5 mm (5.53 in)
V-belt Inner Cover Bearing
Rotate the inner race by finger to inspect for abnormal
play, noise and smooth rotation. If there is anything
unusual, replace the bearing with a new one.
One Way Clutch
1) Install the one way clutch (1) into the clutch wheel.
NOTE
When Installing the one way clutch (1) into
the clutch wheel, make sure that the
“OUTSIDE” letter “A” in the one way clutch
faces to the clutch wheel.
• Install the clutch shoe (2) into the clutch wheel and
turn the clutch shoe by hand to inspect the one way
clutch for a smooth movement. The clutch shoe turns
one direction only. If a large resistance is felt to
rotation, inspect the one way clutch for damage or one
way clutch contacting surface of the clutch shoe for
wear or damage. If any defects are found, replace
them with new ones.
Specifications
Service Data (LT-A400/F)
B827H15107001
Clutch
Unit: mm (in)
“a”: play
I831G1510086-01
“a”
“a”
I831G1510087-01
“A”
1
I827H1510078-01
2
I827H1510079-01
Item Standard Limit
Clutch wheel I.D. 140.0 – 140.2 (5.512 – 5.520) 140.5 (5.53)
Clutch shoe —
No groove at any
part
Clutch engagement r/min 1 700 – 2 200 r/min —
Clutch lock-up r/min 3 300 – 3 900 r/min —
