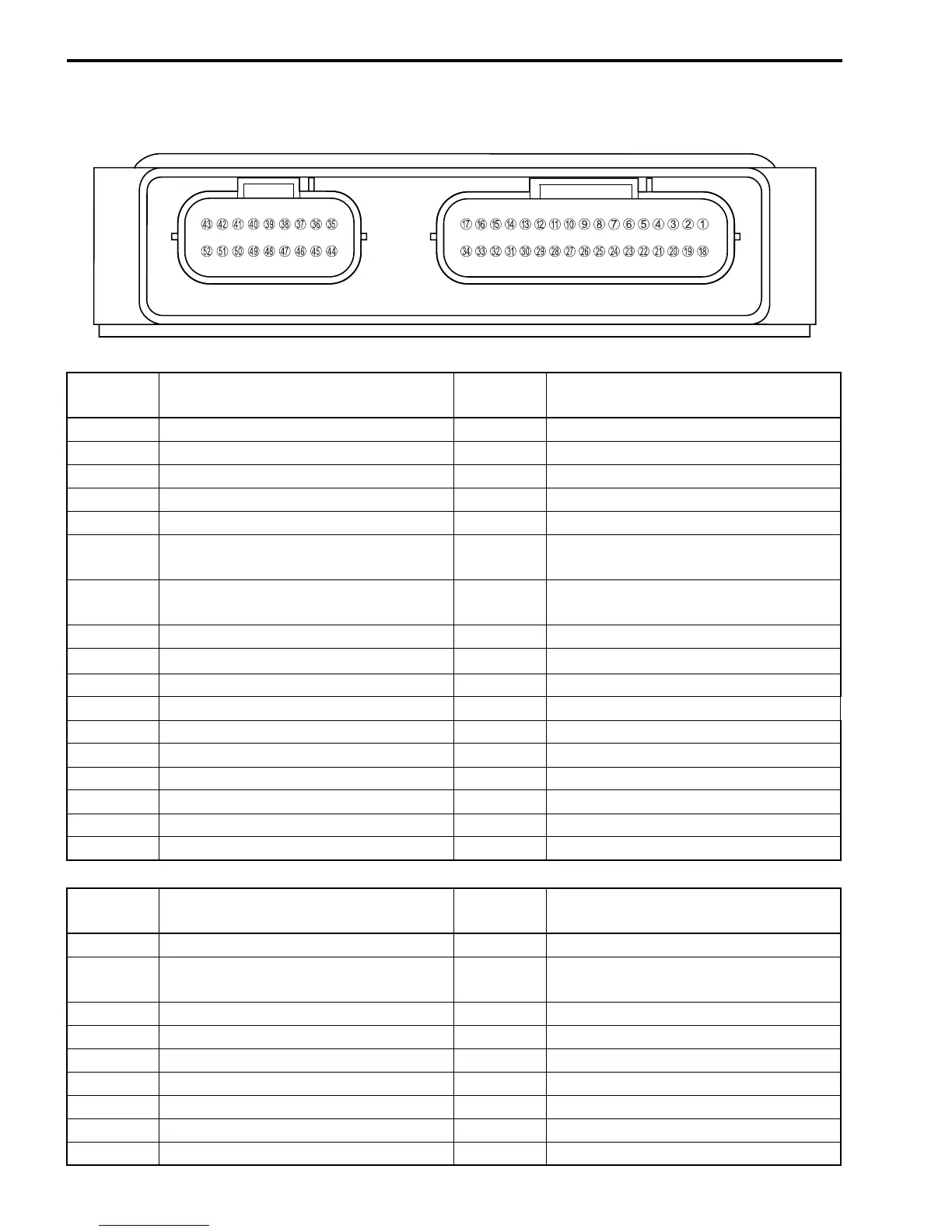

32 VL1500K5 (’05-MODEL)
ECM TERMINAL
TERMINAL
NO.
CIRCUIT
TERMINAL
NO.
CIRCUIT
1 GP switch signal (GP)
H Ignition switch signal (AT)
2 IAT sensor signal (IAT)
I EOT sensor signal (EOT)
3 Rear cylinder IAP sensor signal (IAP. R)
J TO sensor signal (TOS)
4 STP sensor signal (STP)
K TP sensor signal (TP)
5 Blank
L Front cylinder IAP sensor signal (IAP. F)
6
Power source for sensors (VCC)
M
HO2 control selector (EXS)
[For E-02, 19, 24]
7
HO2 sensor signal (HO2S)
[For E-02, 19, 24]
N
Mode select switch (MS)
8 Clutch lever position switch (CLP)
O Starter switch (STA)
9
CKP sensor signal (CKP
‑
)
P
Neutral switch (NT)
0 Power source for fuel injector (VM)
Q CKP sensor signal (CKP+)
A Power source (B+1)
R –
B Power source for back-up (B+2)
S Blank
C ECM ground (E1)
T Blank
D Sensors ground (E2)
U Serial data for speedometer (TECH)
E –
V Serial data for self-diagnosis (SDL)
F –
W –
G –
X –
TERMINAL
NO.
CIRCUIT
TERMINAL
NO.
CIRCUIT
Y STVA signal (STVA. 1B)
d STVA signal (STVA. 2B)
Z
HO2 sensor heater (HO2. H)
[For E-02, 19, 24]
e
Fuel pump relay (FP Relay)
[ STVA signal (STVA. 1A)
f STVA signal (STVA. 2A)
\ Blank
g PAIR control solenoid valve (PAIR)
] Ground (E01)
h Ground (E02)
^ Rear cylinder Fuel injector (#1)
i Decomp. solenoid (DRL)
a Front cylinder Fuel injector (#2)
j Starter relay (STR)
b Blank
k Blank
c Front cylinder Ignition coil (IG2)
l Rear cylinder Ignition coil (IG1)
