Sym Mio 50 User Manual

8. V-Belt Drive System / Kick Starter
8-7

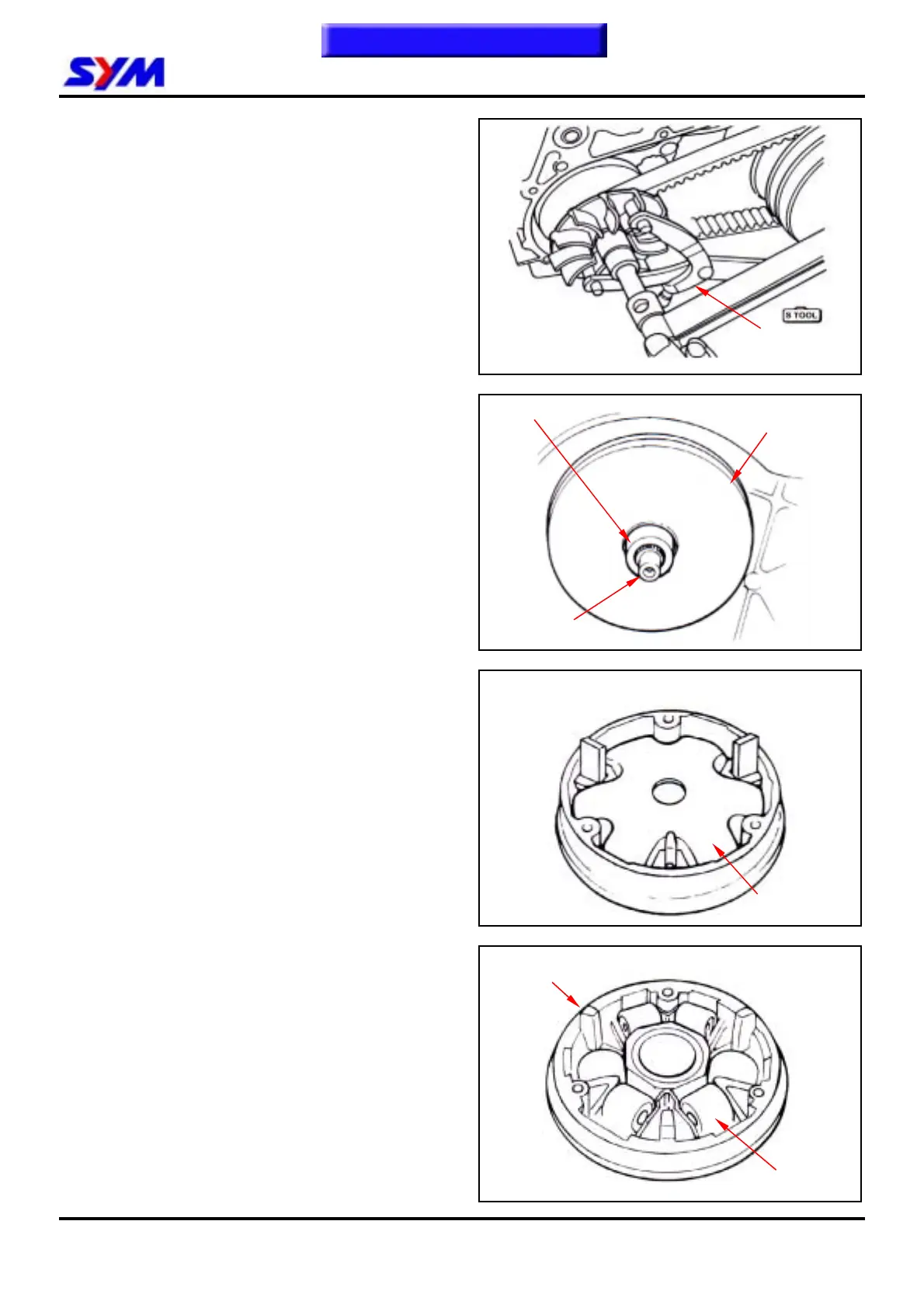

Movable Drive Face
Removal
Remove left crankcase cover.
Hold drive face with universal fixture, and then
remove drive face nut.
Remove drive face.
Special Service Tool:
Universal fixture SYM-2210100
Take out the drive belt from the drive face.
Remove movable drive face set and drive face
boss from crankshaft.
Remove ramp plate.
Remove weight rollers from movable drive face.
Movable drive face
Weight roller
Movable drive face
Drive face boss
Ramp plate
Crankshaft
Universal fixture
