Optional - To mount on a wall
(Wall mount hardware and accessories are not included.)
Preparation must be done before mounting your TV on a wall.
Note: Do not place your TV in a location exposed to direct sunlight, heat, fire, or moisture.
To mount on a wall
The VESA number is the horizontal and vertical measurement of the mounting holes. For
example, 200X200 refers to the fact that the mounting measurements are 200mm horizontally
and 200mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net weight to avoid
causing damage.
50” Models Purchase a VESA 200x200, 4 M6x12mm screws
To mount your TV to the wall, purchase a VESA wall mount
If you are mounting your TV to the wall, don’t attach the stands.
55” Models Purchase a VESA 200x300, 4 M6x12mm screws
65” Models Purchase a VESA 300x300, 4 M6x12mm screws
6
Exposure will damage the TV.
1-1

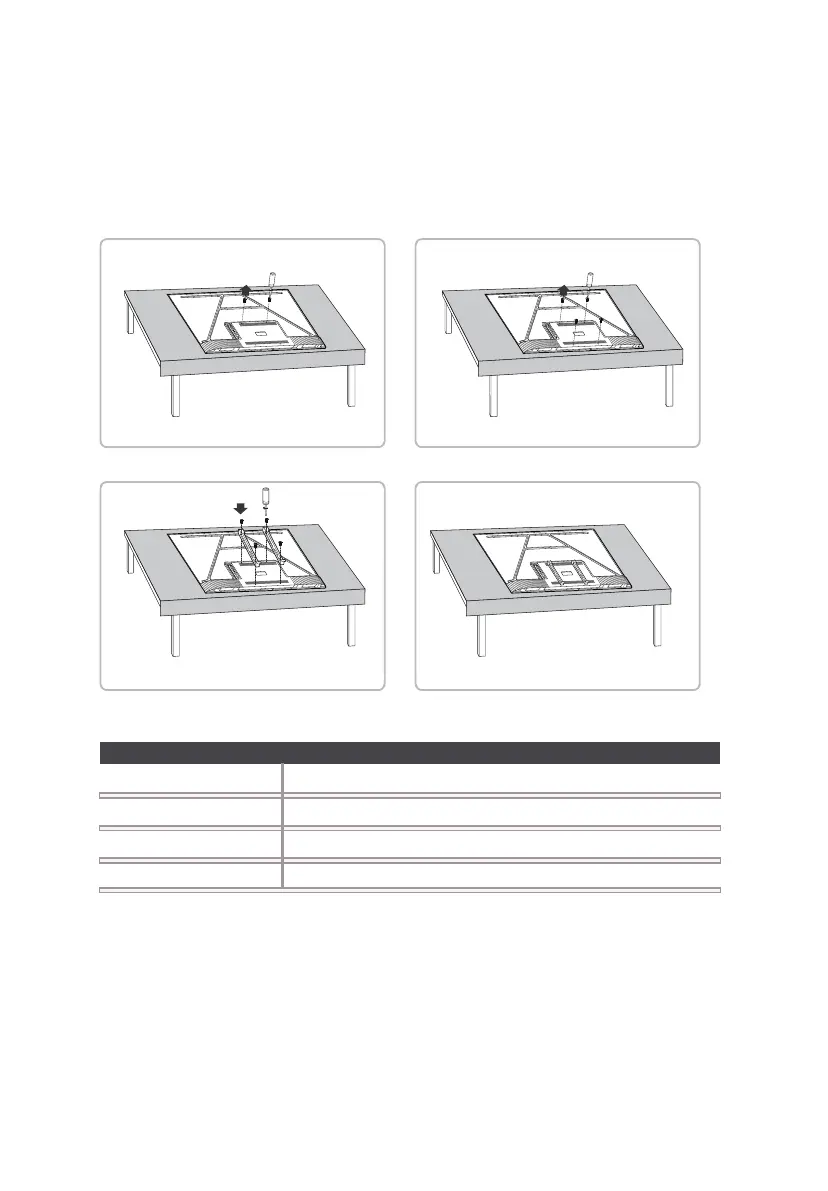

Place your TV on a soft, cushioned surface. Remove the 2
screws from the back of the TV and store in a safe place.
1-2
2 3
75 50/55/65
50/55
/65”/75
Place your TV on a soft, cushioned surface. Remove the 4
screws from the back of the TV and store in a safe place.
Screw the VESA bracket tightly onto the back cover with 4
VESA screws
purchased with the wall mount separately.
Follow the instructions that come with the wall mount to
hang the TV on the wall.
75” Models Purchase a VESA 300x300, 4 M6x25mm screws
Warning: This product should only be mounted by a professional installer.
Warning: Never install or mount this product to the ceiling with the screen side facing down.
Installing or mounting this product to the ceiling or the underside of a structure or surface is
hazardous and may result in personal injury and/or property damage.
