Technics SA-5570 User Manual

Ghar Shree Kon

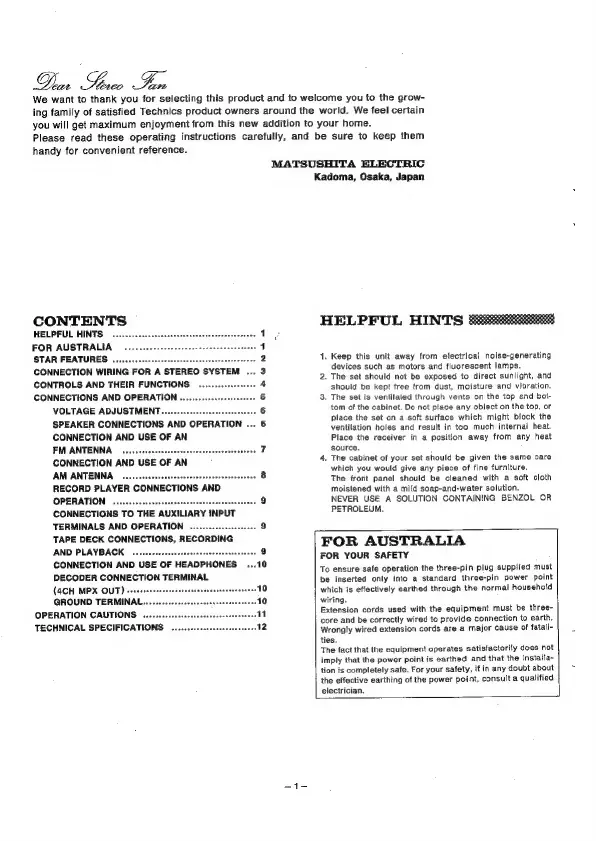

We want to thank you for selecting this product and to welcome you to the grow-
ing family of satisfied Technics product owners around the world. We feel certain
you will get maximum enjoyment from this new addition to your home.
Please read these operating instructions carefully, and be sure to keep them
handy for convenient reference.
CONTENTS
HELPFUL HINTS
FOR AUSTRALIA
STAR FEATURES ...sccssercssessessseseeseesees
CONNECTION WIRING FOR A STEREO SYSTEM
CONTROLS AND THEIR FUNCTIONS ..
CONNECTIONS AND OPERATION ...
VOLTAGE ADJUSTMENT..........00sseeeceeeee
SPEAKER CONNECTIONS AND OPERATION ... 6
CONNECTION AND USE OF AN
FM ANTENNA
CONNECTION AND USE OF AN
AM ANTENNA
RECORD PLAYER CONNECTIONS AND
OPERATION
CONNECTIONS TO THE AUXILIARY INPUT
TERMINALS AND OPERATION .......
TAPE DECK CONNECTIONS, RECORDING
AND PLAYBACK
CONNECTION AND USE OF HEADPHONES
DECODER CONNECTION TERMINAL
(4CH MPX OUT) -
GROUND TERMINA\
OPERATION CAUTIONS .......
TECHNICAL SPECIFICATIONS
errr seessenseserevensnenrene 7
1d
MATSUSHITA ELECTRIC
Kadoma, Osaka, Japan
HELPFUL HINTS
1, Keep this unit away from electrical noise-generating
devices such as motors and fluorescent lamps.
2. The set should not be exposed to direct sunlight, and
should be kept free from dust, moisture and vibration.
3. The set is ventilated through vents on the top and bot-
tom of the cabinet. Do not place any obiect on the top, or
place the set on a soft surface which might block the
ventilation holes and result in too much internal heat.
Place the receiver in a position away from any heat
source.
4, The cabinet of your set should be given the same care
which you would give any piece of fine furniture,
The front panel should be cleaned with a soft cloth
moistened with a mild soap-and-water solution.
NEVER USE A SOLUTION CONTAINING BENZOL OR
PETROLEUM.
FOR AUSTRALIA
FOR YOUR SAFETY
To ensure safe operation the three-pin plug supplied must
be inserted only into a standard three-pin power point
which is effectively earthed through the normal household
wiring.
Extension cords used with the equipment must be three-
core and be correctly wired to provide connection to earth.
Wrongly wired extension cords are a major cause of fatali-
ties.
The fact that the equipment operates satistactorily does not
imply that the power point is earthed and that the installa~
tion is completely safe. For your safety, if in any doubt about
the effective earthing of the power point, consult a qualified
electrician.
