Mina tS ERRORS

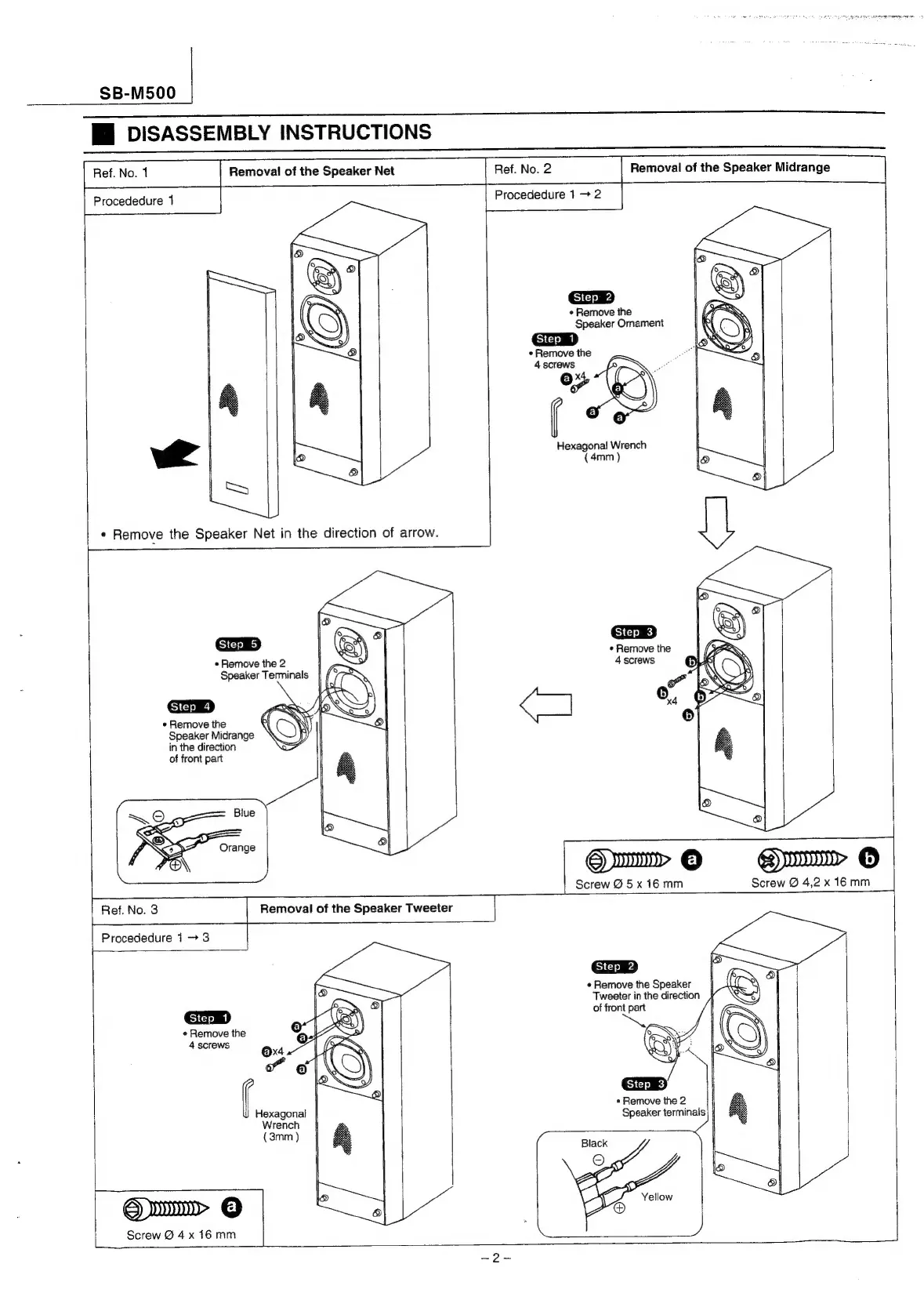

Hi DISASSEMBLY INSTRUCTIONS
Procededure 1
« Remove the 2
Speaker Terminals
« Remove the
Speaker Midrange
in the direction
of front part
Removal of the Speaker Net
Ref. No. 2
Procededure 1 — 2
Step 2
¢ Remove the
Speaker Ornament
Step 1
« Remove the
4 screws
Hexagonal! Wrench
(4mm )
« Remove the
4 screws
@mmr @
Screw @5x 16mm
rnp ©
Screw @ 4,2 x 16 mm
-—-
Ref. No. 3 Removal of the Speaker Tweeter
Procededure 1-3
* Remove the
4 screws @x4
om” fa)
( Hexagonal
Wrench 4
(3mm)
Omum»> ©
Screw @ 4x 16mm
« Remove the Speaker
Tweeter in the direction
of front part
Step 3
* Remove the 2
Speaker terminals
Removal of the Speaker Midrange
