Technics SC-CH570 Service Manual

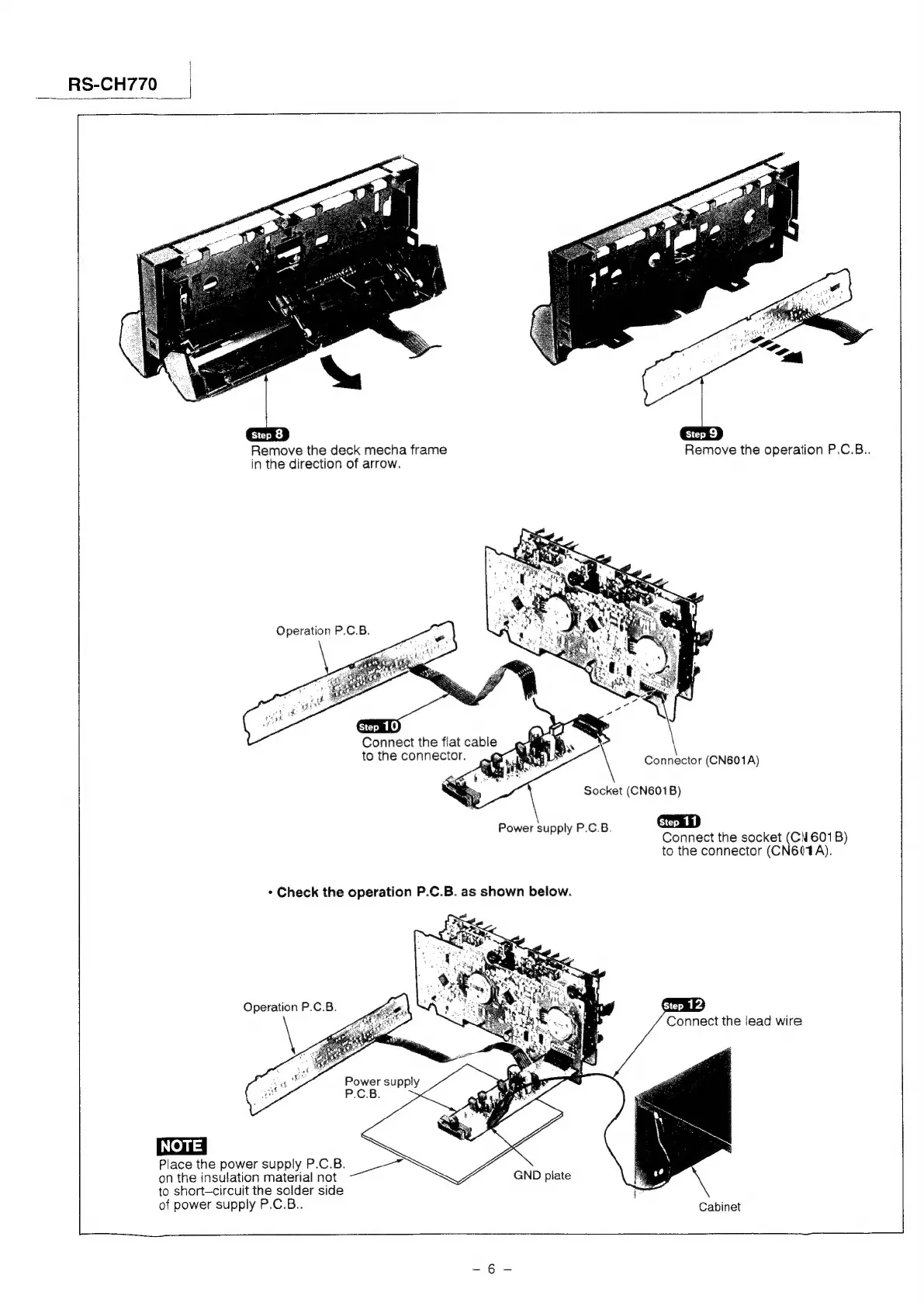

RS-CH770 |
Remove the deck mecha frame
in the direction of arrow.
Remove the operation P.C.B..
Operation P.C.B.
Connect the flat cable
to the connector.
\
Connector (CN601A)
Socket (CN601B)
Power supply P.C.B. aD
Connect the socket (CN 601B)
to the connector (CN6(4A).
¢ Check the operation P.C.B. as shown below.
Operation P.C.B.
Connect the lead wire
NOTE
Place the power supply P.C.B.
on the insulation material! not aes
to short-circuit the solder side
GND plate
of power supply P.C.B..
Cabinet
eae
