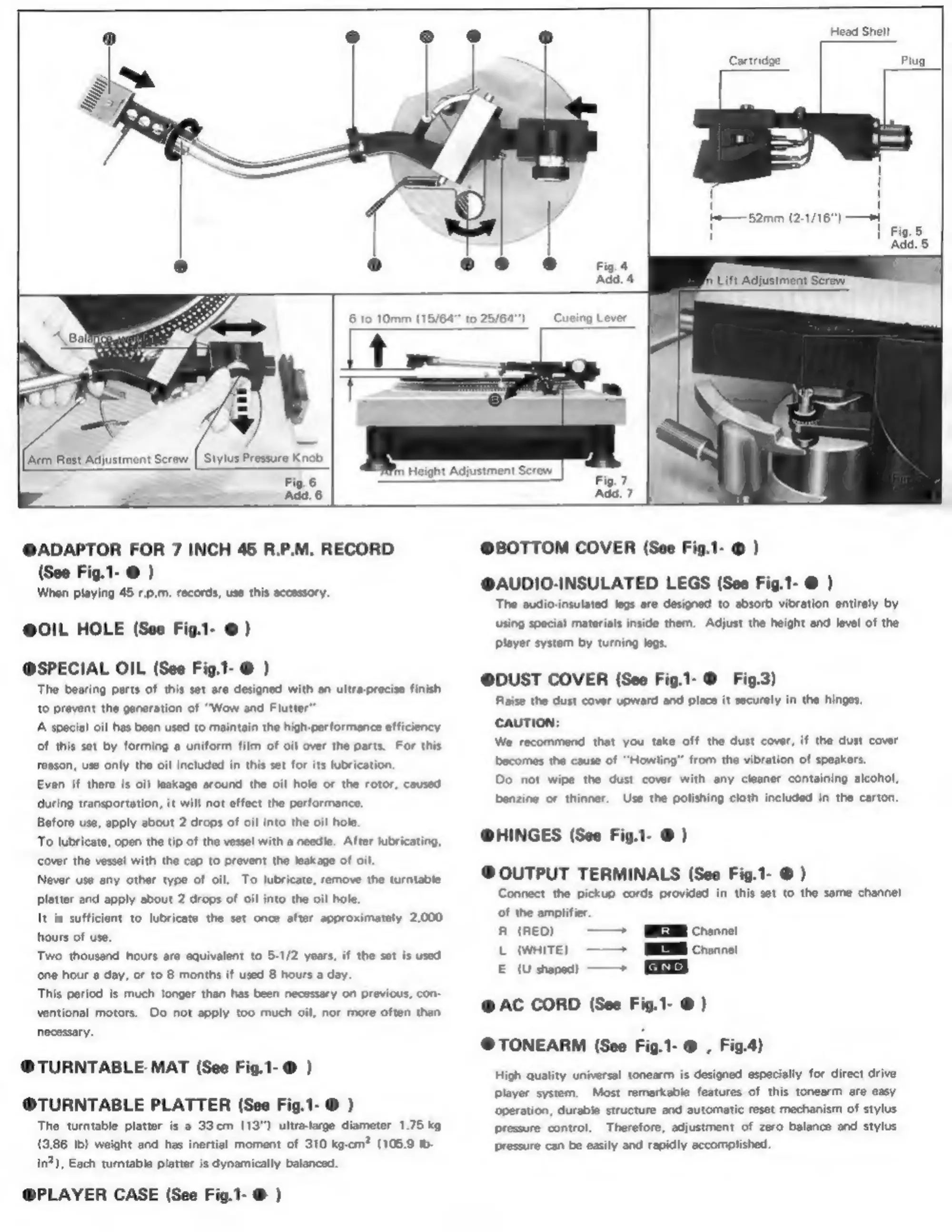

Technics SL-1200 User Manual

Head Shell
Cartridge
I
i
1
1 i
= 52mm (2-1/16") —>t
® @ Fig. 4
Add. 4 Lift Adjustment Serew
Cueing Lever
Fig. 6
Add. 6
fn Height Adjustment Screw
Fig. 7
Add. 7
@ADAPTOR FOR 7 INCH 45 R.P.M. RECORD
(See Fig.1- @ )
When playing 45 r.p.m. records, use this accessory.
@OIL HOLE (See Fig.1- ©)
@SPECIAL OIL (See Fig.1- ® )
The bearing parts of this set are designed with an ultra-precise finish
to prevent the generation of “Wow and Flutter”
A special oil has been used to maintain the high-performance efficiency
of this set by forming a uniform film of oil over the parts. For this
reason, use only the oil included in this set for its lubrication.
Even if there is oil leakage around the oi! hole or the rotor, caused
during transportation, it will not effect the performance.
Before use, apply about 2 drops of oil into the oil hole.
To lubricate, open the tip of the vessel with a needle, After lubricating,
cover the vessel with the cap to prevent the leakage of oil,
Never use any other type of oil. To lubricate, remove the turntable
platter
and
apply
about
2
drops
of
oil
into
the
oil
hole.
It is sufficient to lubricate the set once after approximately 2,000
hours of use.
Two thousand hours are equivalent to 5-1/2 years, if the set is used
one hour a day, or to 8 months if used 8 hours a day.
This period is much longer than has been necessary on previous, con-
ventional motors, Do not apply too much oil, nor more often than
necessary.
@ TURNTABLE MAT (See Fig.
o)
@TURNTABLE PLATTER (See Fig.1- @ )
The
turntable
platter
is
a
33m
(13")
ultra-large
diameter
1.75
kg
(3.86 Ib) weight
and has inertial
moment
of 310 kg-cm?
(105.9
Ib-
in?), Each turntable
platter
is dynamically
balanced.
@PLAYER CASE (See Fig.1- ® )
@BOTTOM COVER (See Fig.1- © )
@®AUDIO-INSULATED LEGS (See Fig.1- ® )
The audio-insulated legs are designed to absorb vibration entirely by
Using special materials inside them, Adjust the height and level of the
player system by turning legs.
@DUST COVER (See Fig.1- ® Fig.3)
Reise the dust cover upward and place it securely in the hinges.
CAUTION:
We
recommend
that
you
take
off
the
dust
cover,
if
the
dust
cover
becomes the cause of “Howling” from the vibration of speakers
Do
not
wipe
the
dust
cover
with
any
cleaner
containing
alcohol,
enzine or thinner. Use the polishing cloth included in the carton.
@HINGES (See Fig.1- ©
® OUTPUT TERMINALS (See Fig.1- © )
Connect
the
pickup
cords
provided
in
this
set
to
the
same
channel
of the amplifier.
R (REO) ——> EEE channel
L (WHITE) ——> [EB Channel
E (U shop) —> EES
@
AC
CORD
(See
Fig.1-
©
)
@
TONEARM
(See
Fig.1-
@
,
Fig.4)
High
quality
universal
tonearm
is
designed
especially
for
direct
drive
player
system.
Most
remarkable
features
of
this
tonearm
are
easy
operation,
durable
structure
and
automatic
reset
mechanism
of
stylus
pressure
control.
Therefore,
adjustment
of
zero
balance
and
stylus
pressure
can
be easily
and
rapidly
accomplished.
Fig. 5
Add. 5

Technics SL-1200 Specifications

Turntable Section

type	Direct drive player system
turntable platter diameter	33 cm
inertial moment	310 kg-cm
turntable speeds	33.1/3 and 45 r.p.m.
motor	20 poles (rotor), 15 poles (stator) ultra low-speed brushless DC motor
power supply	AC 120V, 60Hz
wow and flutter	0.03% WRMS
rumble	-50 dB (DIN A) -70 dB (DIN B)
build-up time	1/2 rotation at 3-1/3 r.p.m.

Tonearm Section

type	EPA-120 Direct reading stylus pressure adjustment
effective length	220 mm
overhang	14 mm

Weight and Dimensions

weight	10 kg
dimensions (w x d x h)	45.3 x 36.6 x 18.0 cm
