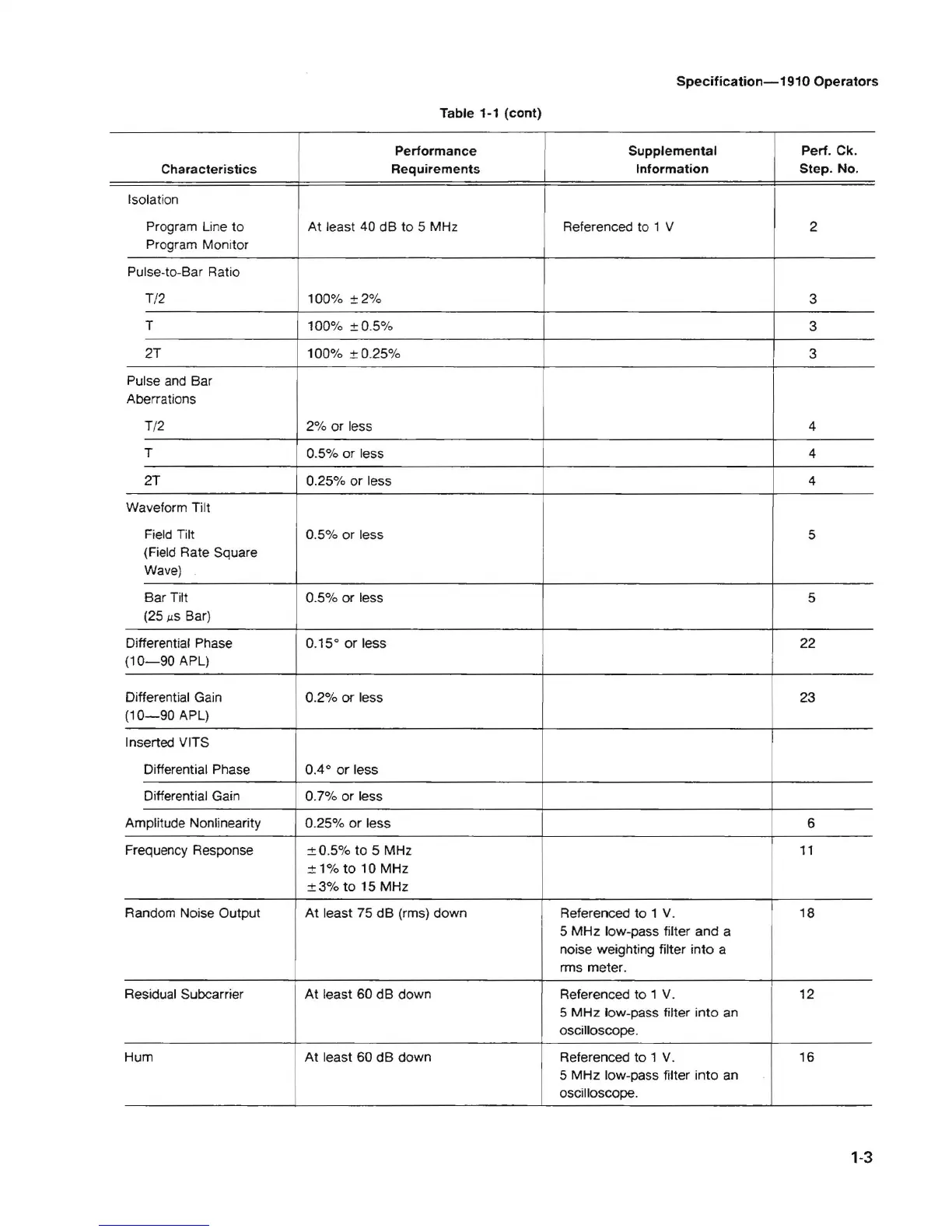

Table 1-1 (cont)
Specification-1910 Operators
Performance
Supplemental Perf. Ck.
Characteristics Requirements
Information Step. No.
Isolation
Program Line
to At least 40 dB to 5 MHz
ReferenCed to 1V 2
Program Monitor
Pulse-to-Bar Ratio
T/2 100%
±2%
3
T
100%
±0.5%
3
2T
100% ±0.25%
3
Pulse
and Bar
Aberrations
T/2
2% or less 4
T
0.5% or less 4
2T 0.25%
or less 4
Waveform Tilt
Field Tilt
0.5%
or less
5
(Field Rate Square
Wave)
Bar Tilt 0.5% or less
5
(251-'s Bar)
Differential Phase 0.15°
or less 22
(10-90 APL)
Differential Gain 0.2% or less
23
(10-90 APL)
Inserted VITS
Differential Phase
0.4°
or less
Differential Gain
0.7% or less
Amplitude Nonlinearity
0.25%
or less
6
Frequency Response
±0.5% to 5 MHz
11
±1%t010MHz
±3% to 15 MHz
Random Noise Output At least 75 dB (rms) down
Referenced to 1
V.
18
5 MHz low-pass filter and a
noise weighting filter into a
mns meter.
Residual Subcarrier At least 60
dB down Referenced to 1 V. 12
5
MHz low-pass filter into an
oscilloscope.
Hum
At least 60 dB down
Referenced to 1
V.
16
5
MHz low-pass filter into an
oscilloscope.
