Tektronix CT-1 Instruction Manual

CT-1/CT-2 Current Transformer
1
Introduction
The CT-1 and CT-2 are high-frequency, bidirectional current probes. The CT-1 is
a 1 GHz current probe and the CT-2 is a 200 MHz current probe. Each current
probe comes with a P6041 probe cable to allow you to connect directly to an
oscilloscope to make measurements.
Earth ground
mounting stud
P6041 Probe
connection

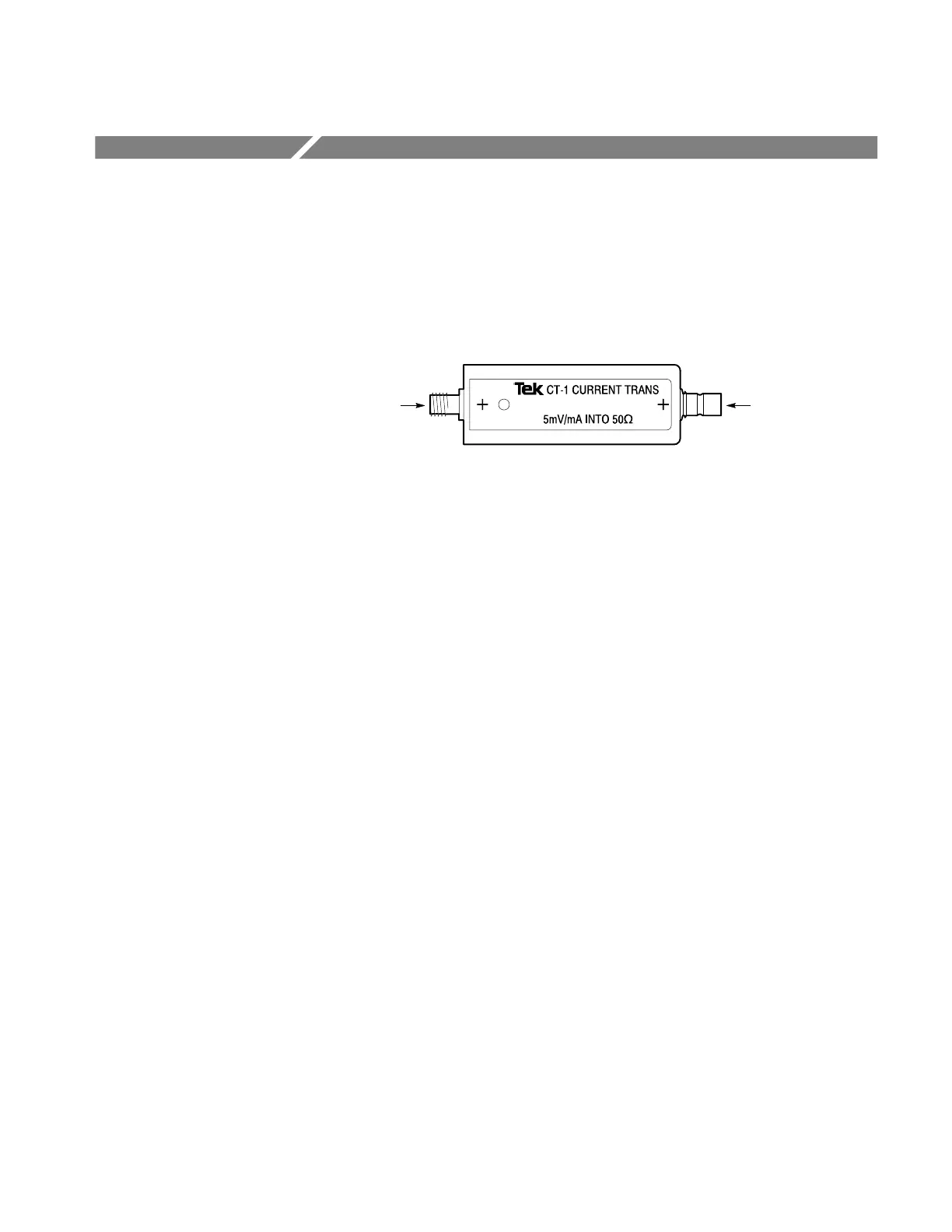

Figure 1: CT-1 current probe
The CT-1 and CT-2 are available as separately purchased units (Option 09). See
the Replaceable Parts List at the end of this manual for ordering information.
This manual provides information on four subjects:
H Description
H Operation
H Specifications
H Replaceable Parts List
