Model 237-ALG-2
2 PA-298 Rev. D / June 2013
Before each use, inspect the cable, connector, and boots for wear, cracks, or breaks. Make sure the boots
completely cover the alligator clips after making connections.
The outer shield of the triaxial connector provides protection from voltages on the center and inner shield
conductors. Make sure the outer shell is always connected to earth ground or a properly grounded chassis.
Make sure both ends of the cable are properly connected before applying power. This prevents voltages from
being exposed and connections from shorting together.
Never touch or change connections when power is applied to the cable assembly. Always turn off all power and
discharge all capacitors before connecting or disconnecting the cable.
Mechanical characteristics

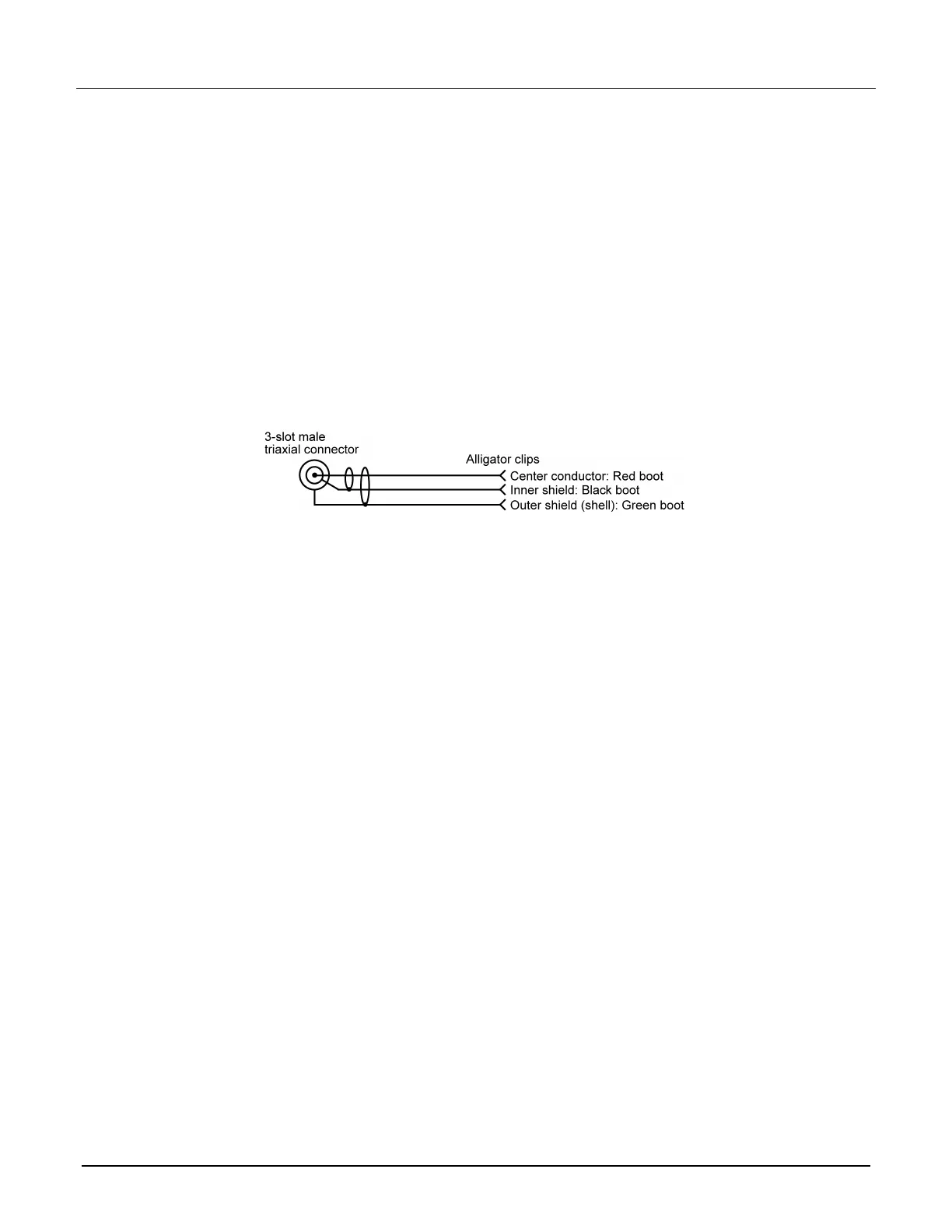

A schematic of the cable is shown in the figure below.
Figure 2: Model 237-ALG-2 schematic
Electrical characteristics
Working voltage: 600 V peak center conductor to inner shield; 1,300 V peak center conductor and inner shield
to outer shell
Contact resistance: < 0.5 Ω
Insulation resistance: 10
15
Ω, center conductor to inner shield (500 V test voltage, 23 °C at < 40 percent
relative humidity)
General characteristics
Operating environment: 32 °F to 122 °F (0 °C to 50 °C), up to 70 percent relative humidity at ≤ 95 °F (35 °C)
