FAQs
How do I save data to a USB ash drive?
1. Insert a USB ash drive into the USB port.
2. Press the MENU key.
3. Under Measure, select Reading Buers. The MANAGE
READING BUFFERS window is displayed.
4. Select the reading buer that you want to save.

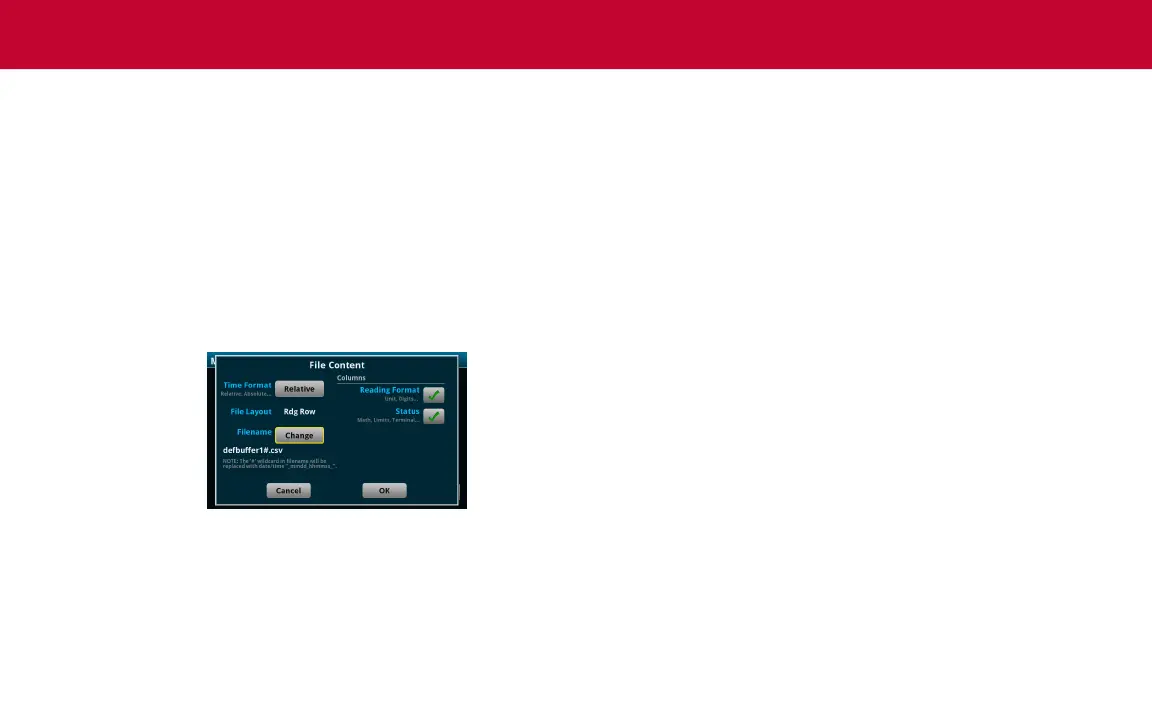

5. Select Save To USB. The File Content dialog box is
displayed.
6. To change the le name, select Change. A keyboard is
displayed.
7. Enter the name of the le in which to save the readings.
8. Select OK to save the le. When the MANAGE
READING BUFFERS window is displayed again, the le
is saved.
The data is saved to a .csv le.
My data looks odd or is wrong. What should I do?
Verify the connections from the instrument to the test xture.
Also check the connections from the DUT to the test xture
socket.
How do I change the command set?
In addition to the front panel options, you can use a remote
interface to set up the instrument. You can choose one of the
following command sets:
• SCPI: An instrument-specic language built on the SCPI
standard.
• TSP: A programming language that can be used to send
individual commands or combine commands into scripts.
You cannot combine the command sets.
As delivered from Keithley Instruments, the DMM7510 is set
to work with the SCPI command set.
To set the command set using the front panel:
1. Press the MENU key.
2. Under System, select Settings.
3. Select Command Set.
4. Select the command set.
5. You are prompted to reboot the instrument.
