Getting Started with the MSO/DPO2000 , M SO/DPO30 00, and MSO/DPO4000 Series Oscilloscopes
3. Turn multipurpose knob a to select Frequency.
Push the side-bezel OK Add Measurement
button.
Frequency
4. Turn multipurpose knob a to select Pe riod.
Push the side-bezel OK Add Measurement
button.
Period

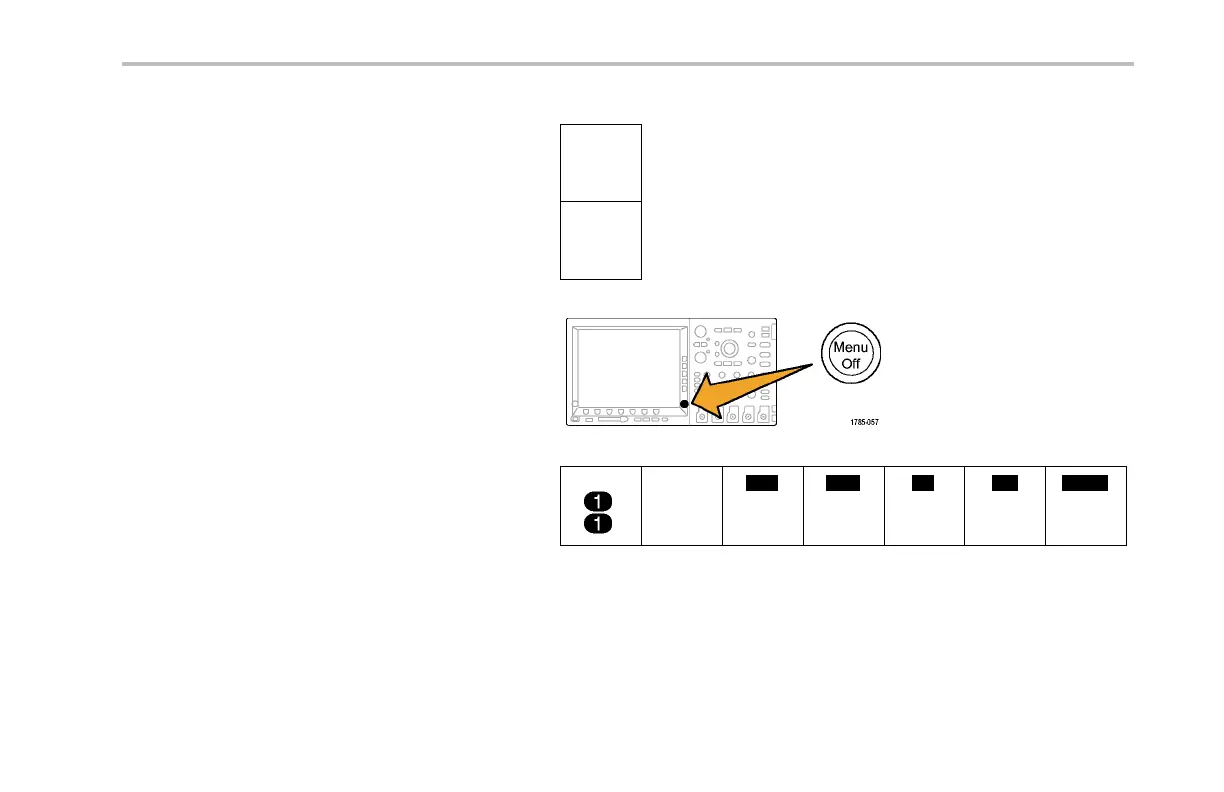

5. Push Menu Off to the lower-right of the display
to remove the side menu.
6. Observe the measurement readout.
Frequency
Period
Value
1.250MHz
800.0ns
Mean
1.250M
800.0n
Min
1.250M
799.9n
Max
1.250M
800.1n
Std Dev
45.44
31.98
The readout indicates the frequency
and period. On the MSO/DPO3000 and
MSO/DPO4000, it also shows the mean ,
minimum, maximum, and standard deviation
of the measurements.
Demo 2 Board Instruction Manua l 15
