TOHATSU MFS 9.9 User Manual

5
5-29
4st 9.9/15/20 2008

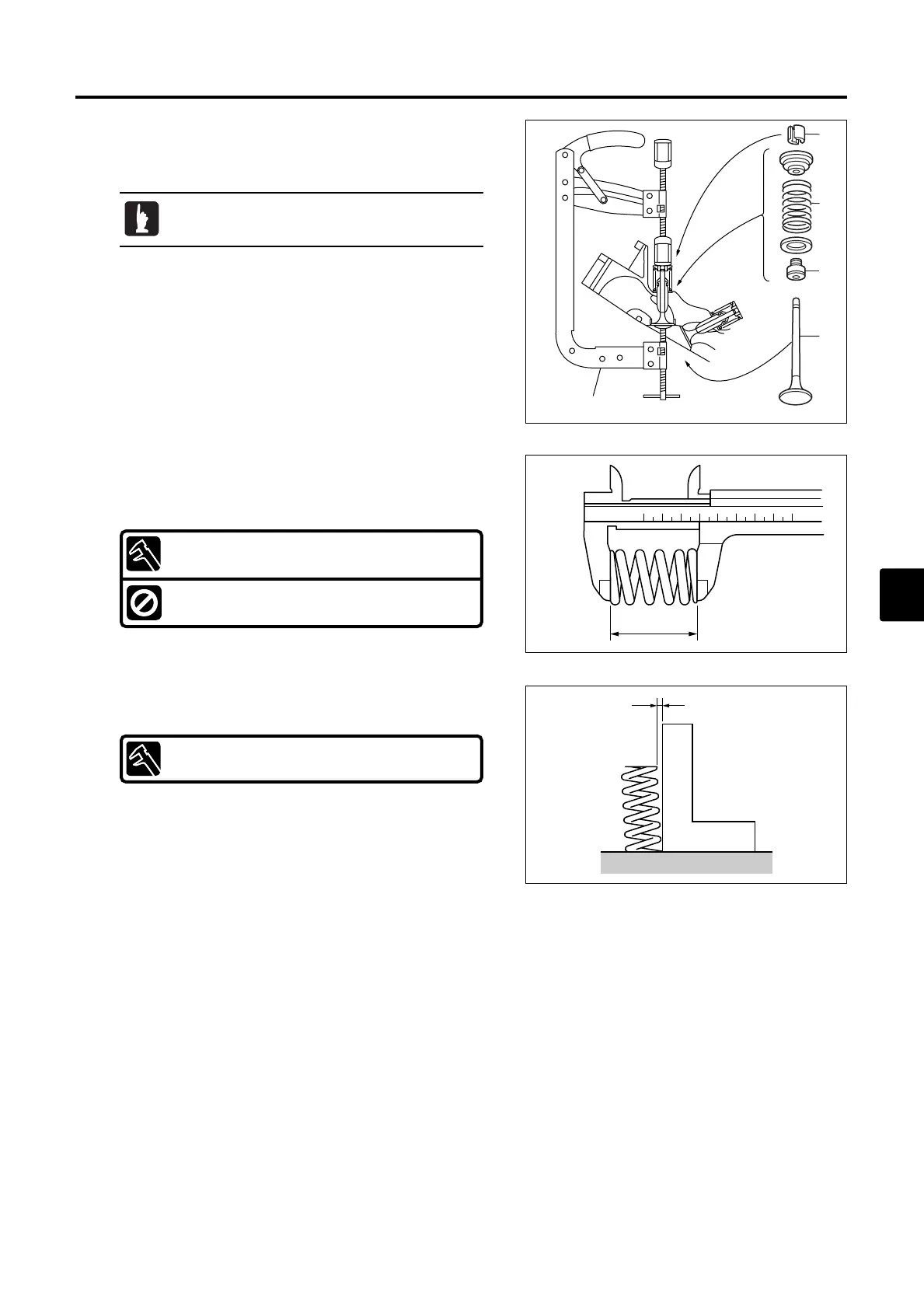

12) Inspection of Valve Spring
1. Measure valve spring free length a. Replace if the length is
less than specified value.
2. Measure valve spring inclination b. Replace if it is over
specified value.
b
Valve Spring Inclination Limit b :
1.5 mm (0.06 in)
a
Valve Spring Free Length a : Standard Value
35.0 mm (1.38 in)
Functional Limit :
33.5 mm (1.32 in)
X
9
6
7
5
8
12. Compress valve spring 5 using a commercially available
valve spring compressor 6, remove cotter 7, and then,
remove spring 5 and valve 8.
Valves, springs and other related parts should
be arranged in the order they are removed.
13. Remove stem seal 9.
E_MFS20C_ch05_090105.qxd 09.1.20 5:25 PM ページ 29

TOHATSU MFS 9.9 Specifications

General

Brand	TOHATSU
Model	MFS 9.9
Category	Outboard Motor
Language	English
