TOHATSU MFS 9.9 User Manual

Bracket
7-4
4st 9.9/15/20 2008
24
23
26
27
22
25
31
30
31
6
12
39
40
9
10
20
40
38
2
7
9
8
9
9
10
4
11-1
5
12
11
37
3-1
3-3
3-2
14
16
17
13
33
28
29
36
35
36
32
15
19
18
34
3
7
21
1
G
REASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREA
SE
OBMOBM
OBM
TB
13421342
1342
11 N·m (8 lb·ft) [1.1 kgf·m]
TB
13421342
1342
27 N·m (20 lb·ft) [2.7 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]

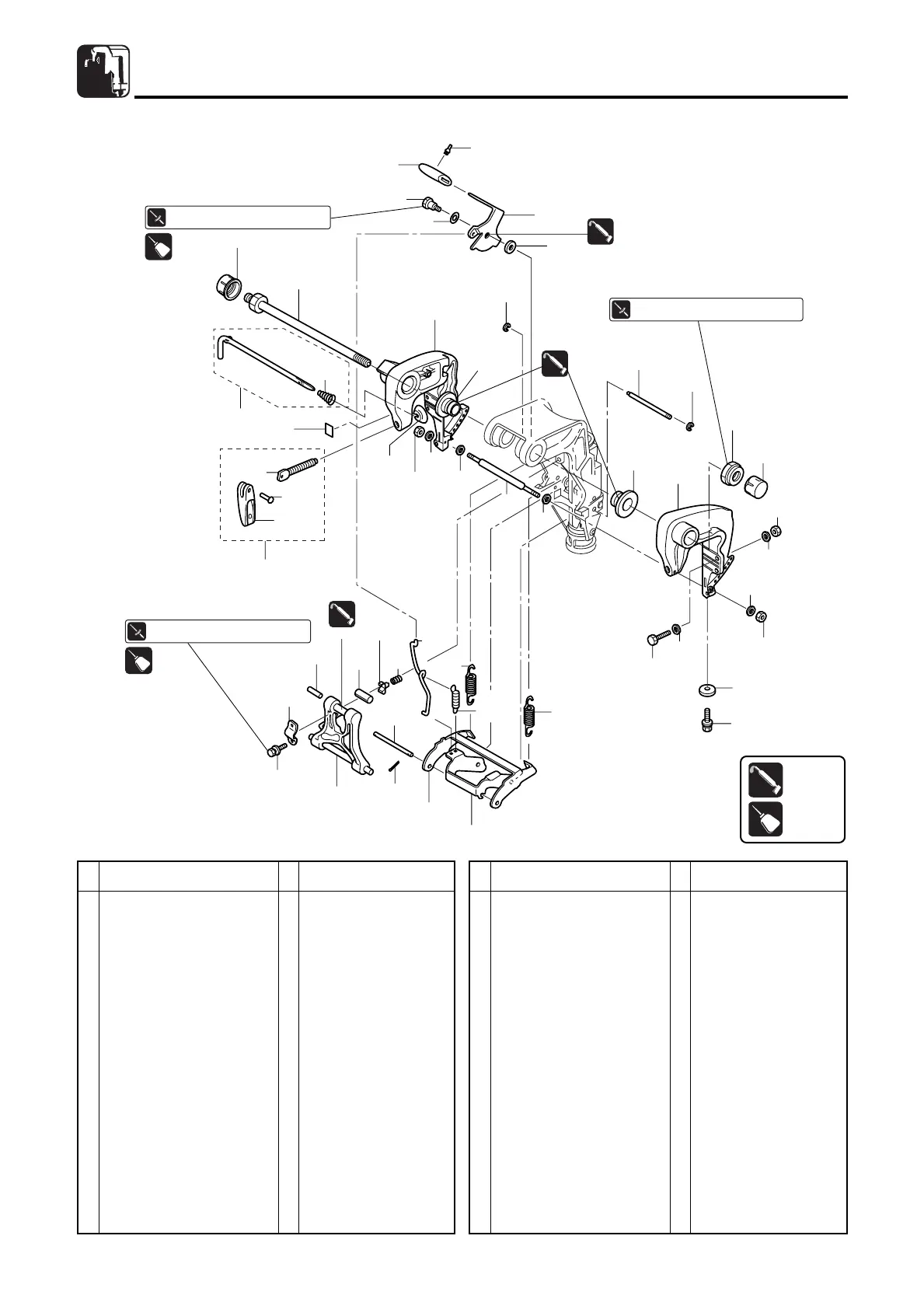

Clamp Bracket & Reverse Lock
1 Clamp Bracket (Right) 1 Starboard
2 Clamp Bracket (Left) 1 Port
3 Clamp Screw Ass'y 2
3-1 Clamp Screw 2 M14 P2.0
3-2 Clamp Screw Handle 2
3-3 Rivet, 3-22 2
4 Clamp Screw Pad 2
5 Swivel Bracket Shaft 1 Bracket Bolt
6 Nylon Nut, 7/8 1
7 Bracket Shaft Bushing 2
8 Distance Piece 1
9 Washer 4
10 Nut 2
11 Thrust Rod Ass'y 1
11-1 Thrust Rod Spring 1
12 Bracket Shaft Cap 2 for MF & EF
13 Tilt Stopper 1
14 Spring Pin, 5-40 1
15 Bushing, 8.2-10-26.5 1
16 Tilt Stopper Setting Plate 1
17 Bolt 2
18 Tilt Stopper Friction Spring 1
19 Setting Piece 1
20 Anode 1
Ref.
No.
Description Remarks
Q'ty
21 Bolt 1
22 Reverse Lock Link Lever 1
23 Reverse Lock Lever Grip 1
24 Grip Stopper 1
25 Washer, 6-16-1.5 1
26 Reverse Lock Lever Shaft 1
27 Wave Washer, d=8 1
28 Reverse Lock "A" 1
29 Reverse Lock Arm 1
30 Reverse Lock Shaft "A" 1
31 E-Ring, d=6 2
32 Reverse Lock Rod "A" 1
33 Split Pin, 2-12 1
34 Reverse Lock Link "A" 1
35 Reverse Lock Link Spring 1
36 Reverse Lock Spring 2
37 Co-Pilot Decal 1
38 Bolt 4
39 Nut 4
40 Washer 8
Ref.
No.
Description Remarks
Q'ty
P/L Fig. 19
GREASE
OBMOBM
OBM
TB
13421342
1342
E_MFS20C_ch07_081216.qxd 09.1.20 5:40 PM ページ 4
