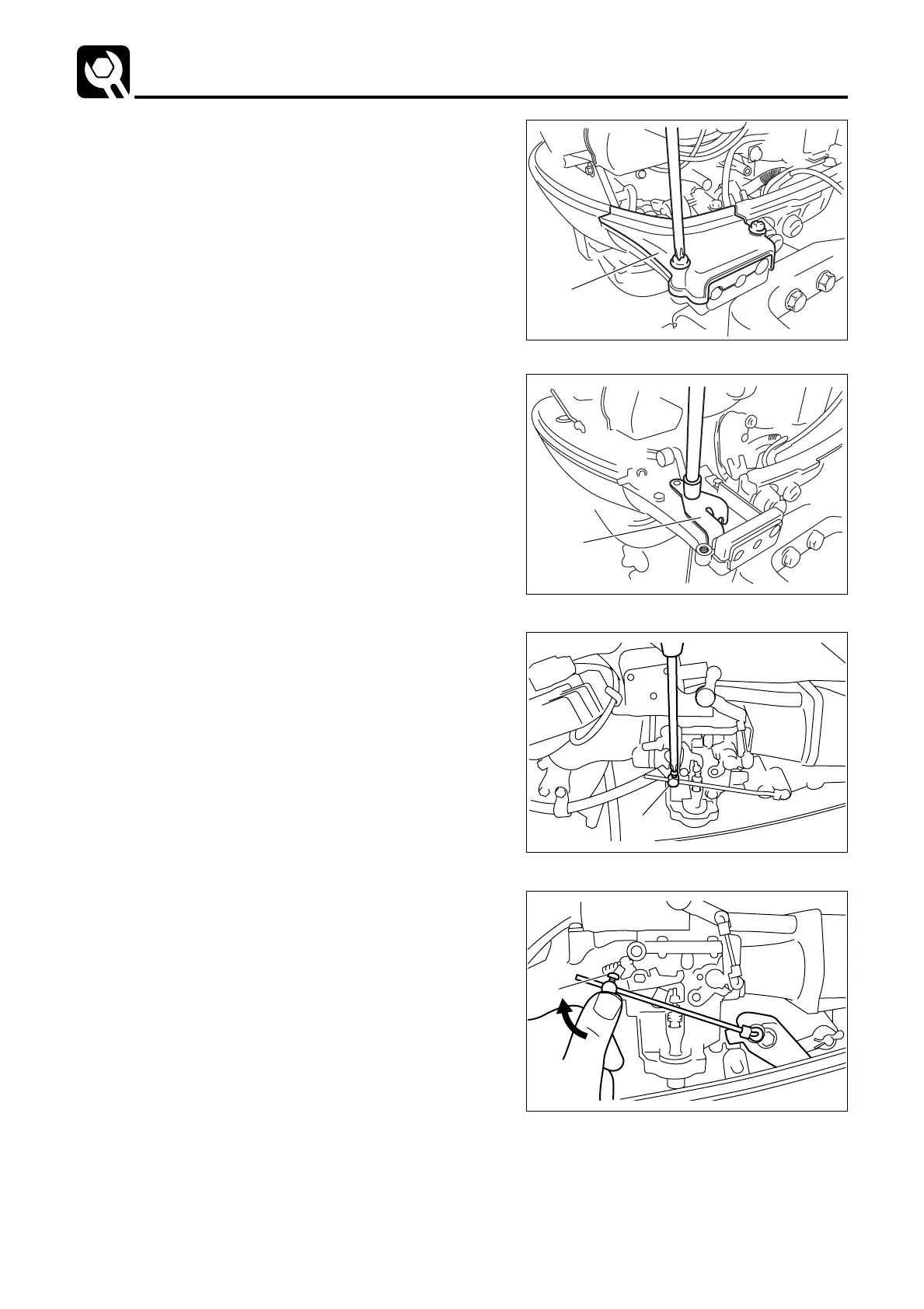

3-22
Maintenance
18) Throttle Cable
Adjustment of Throttle Link
1.
Remove bolt of remote control stay cover
1
and bolt.
1
2.
Remove bolt of cable clip
2
and bolt.
2
3
4
4st 9.9/15/20 2008
3.
Loosen throttle link rod stop screw
3
.
4.
Set carburetor’s throttle link
4
to full open position while
holding throttle lever at full open position.
