SAFETY
PRECAUTIONS
Decals

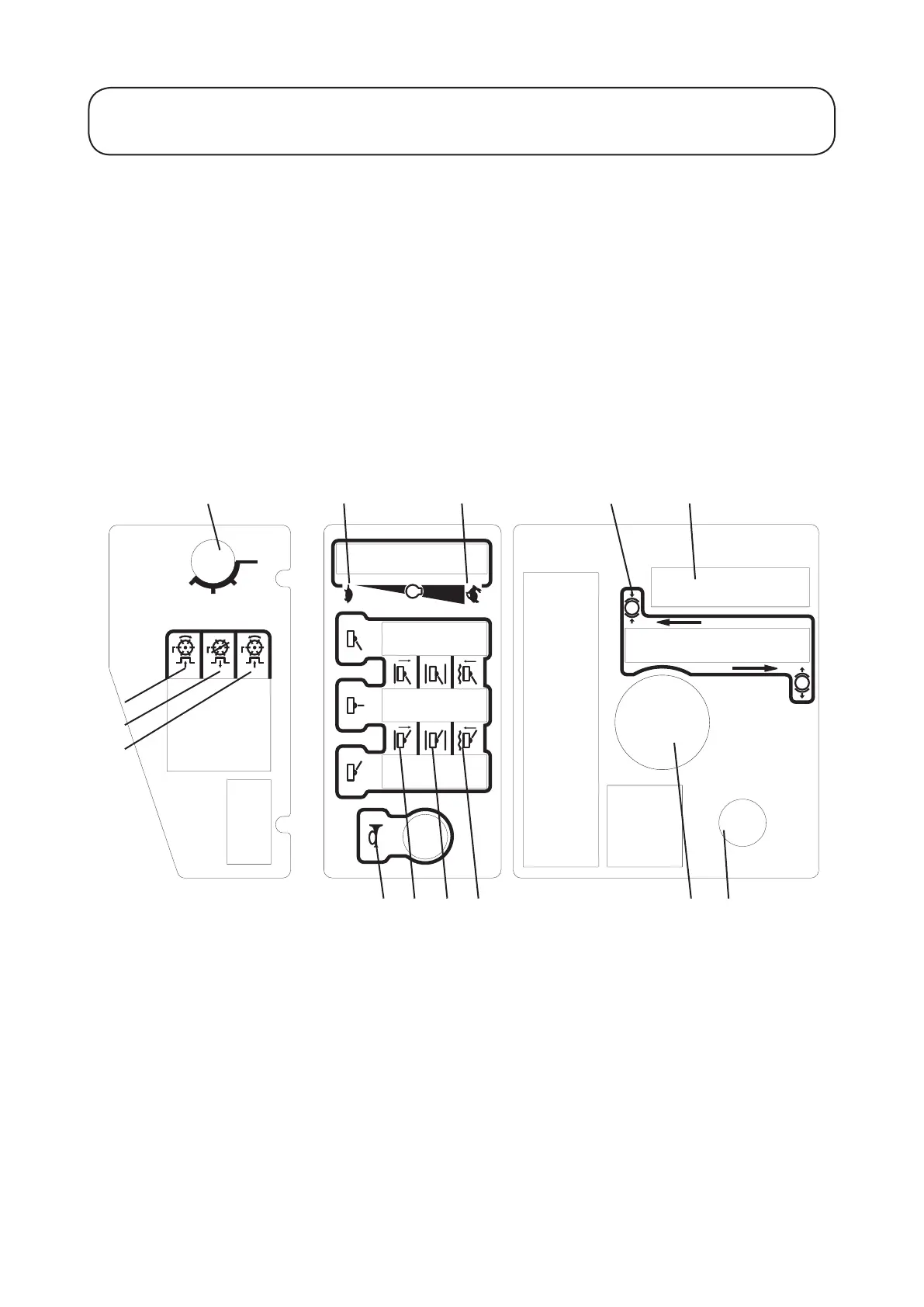

Decal - Control Panel
Part No: 994912 (1)
Location: Control Panel
a)
Ignition Switch
h)
Cutters - off
b)
Engine Speed - Slow
i)
Cutters - Forward
c)
Engine Speed - Fast
j)
Horn
d)
Parking Brake - Engage
k)
Cutters - Lift
e)
Parking Brake - Disengage
l)
Cutters - Hold
f)
W
eight T
ransfer - Control
m)
Cutters - Drop/Float
g)
Cutters - Reverse
n)
Hour Meter
P
P
I
II
III
O
A
F
B
C
D
E
N
M
L
K
J
G
H
I
