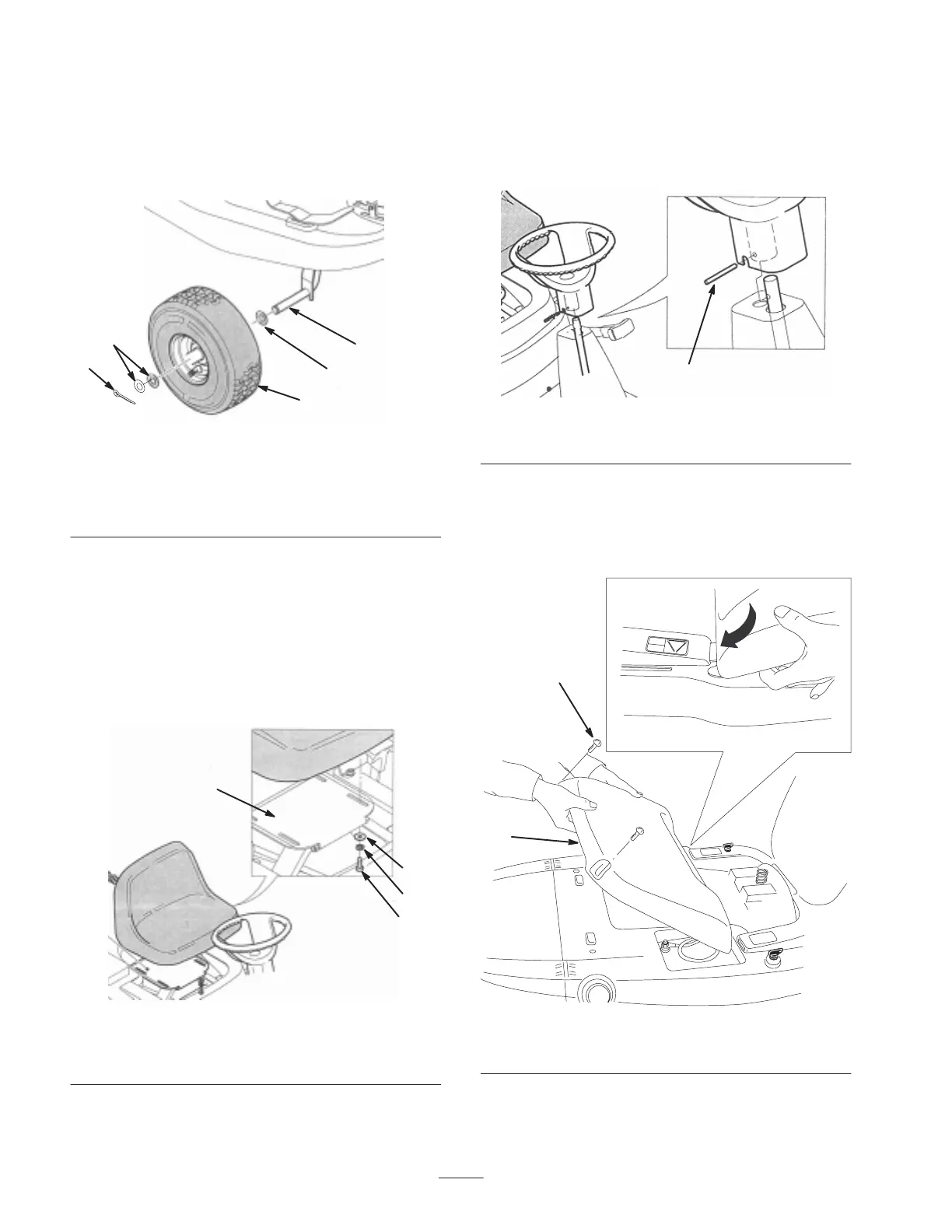

Assembling the Tractor
Installing the Front Wheels
1. Slide a flat washer (M16, 3mm thick) onto each spindle
(Fig. 1).
1
2
3
4
5
Figure 1
1. Spindle
2. Wheel
3. Flat washer
(M16, 3 mm thick)
4. Spacers
(M16, 1 mm thick)
5. Cotter pin
2. Mount the wheels and secure each of them with
2 spacers (M16, 1 mm thick) and a cotter pin (Fig. 1).
3. Grease the wheels.
Installing the Seat
Attach the seat to the support plate with 4 flat washers
(M9), lock washers, and screws (M8 x 18 mm) (Fig. 2).
1
2
3
4
Figure 2
1. Seat Support plate
2. Flat washer (M9)
3. Lock washer
4. Screw (M8 x 18 mm)
Note: Before tightening the screws, adjust the seat to a
position that is most comfortable for you.
Attaching the Steering Wheel
1. Rotate the steering wheel upward until it is aligned with
the steering column.
2. Secure the steering wheel with the socket pin (Fig. 3).
1
Figure 3
1. Socket pin
Installing the Engine Cover
1. Slide the tabs on the engine cover into the slots on the
body of the tractor (Fig. 4).
m–5980
2
1
Figure 4
1. Engine cover 2. Screw
2. Secure the cover with 2 screws (M6 x 25 mm) (Fig. 4).
