Toro 21462 User Manual

AWDFrontHeight-of-CutInstallation(continued)

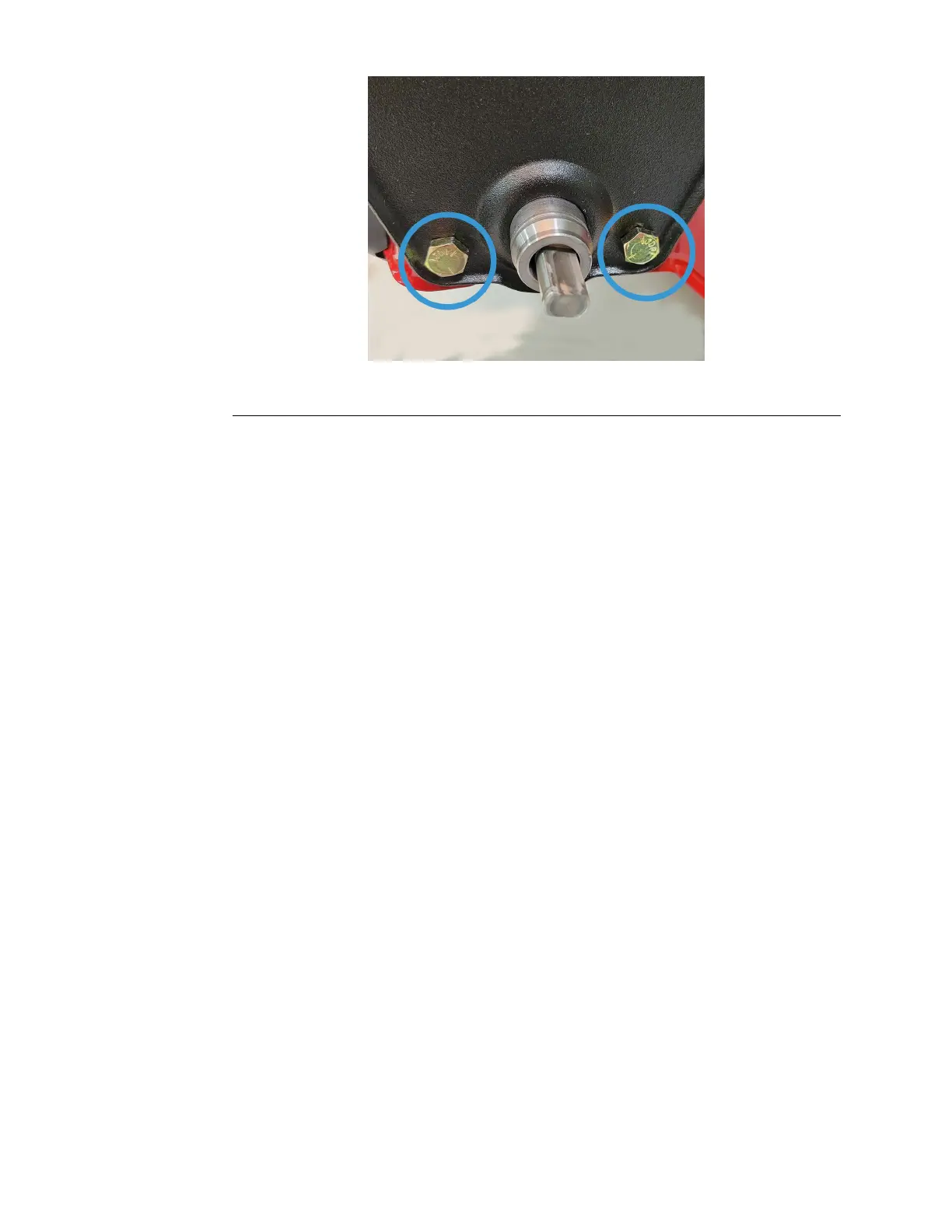

g360548
Figure102
2.InstalltheLHspringarmandpivotarmontothetransmission.Repeaton
theRHsideoftheunit.
3.InstallthelargesnapringtotheLHbushingretainer.RepeatontheRH
sideoftheunit.
4.InstalltheAWDfrontwheels.AWDFrontWheelInstallation(page7–8)
RearHeight-of-CutReplacement
RearHeight-of-CutRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Modelsequippedwiththe60vpowerhead,removetheharnessfrom
powerhead.
3.Modelsequippedwithelectricstartonly,removethe2(M4.2x2.0)
screwssecuringthebatterycover.Removethebatterycoverandfoampad.
Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
4.Removethegrassbaggerassemblyifattached.
5.Removetherearwheels.RearWheelRemoval(page7–10)
6.Removethe2(5/16–18inch)screwsand2locknutssecuringtheLH
height-of-cutplatetothedeck.RepeatontheRHsideoftheunit.
Deck:ServiceandRepairs
Page6–12
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
