3 - 10 260 Series Tractor Service Manual

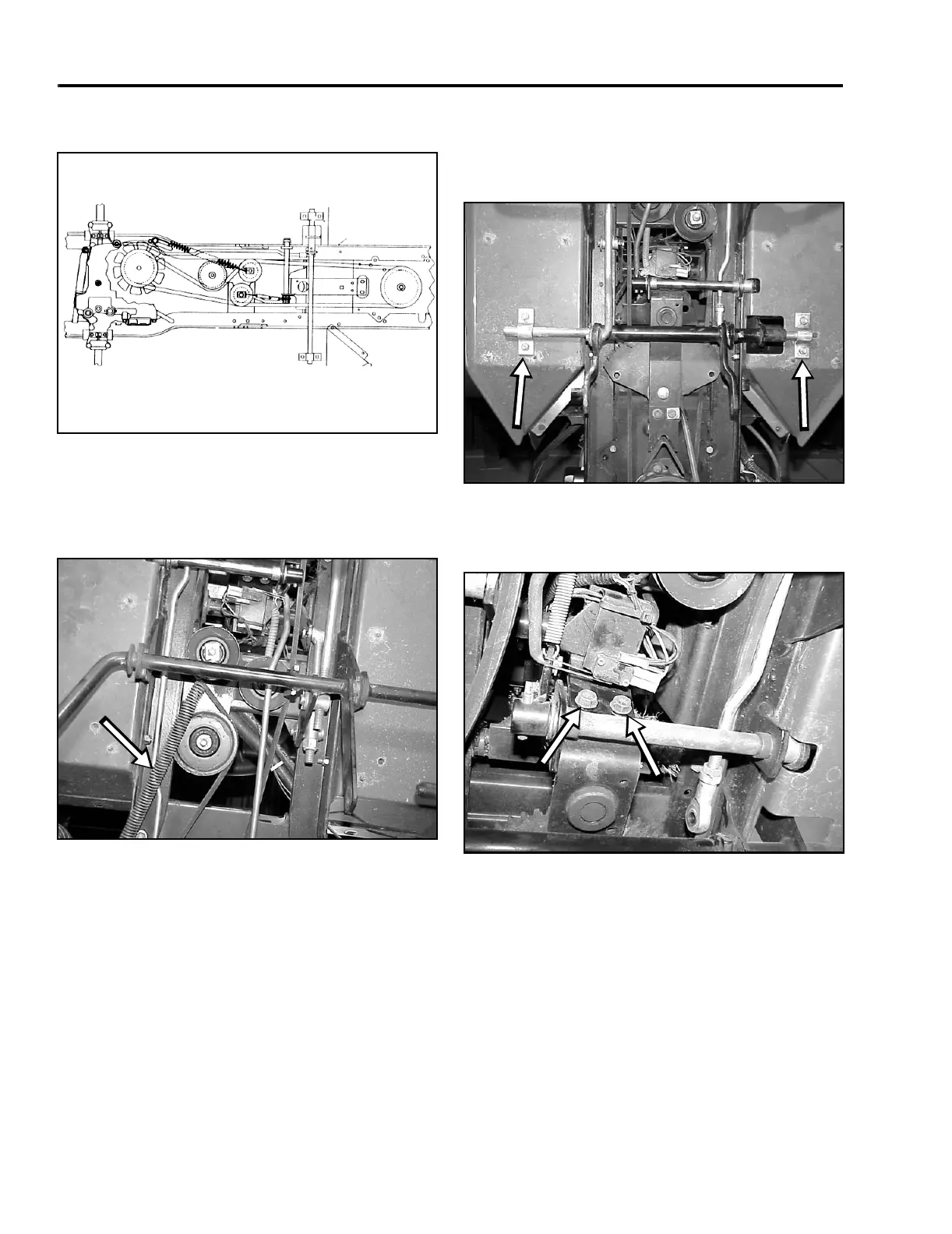

Belt Routing
Figure 96
Beltroute
14. Install the belt around the transaxle input pulley
and then around the idler pulley assembly. Install
the id ler s pring to the bolt, spacer, and washer
located on the right side of the frame (Figure 97).
Figure 97
MVC-356X
15. Slide the brake shaft back through the bushing
and install the roll pin. Raise the pedal pivot shaft
up to the footrest and install and tighten the
clamps (Figure 98).
Figure 98
MVC-357X
16. Install the 2 bolts in the safety neutral bracket and
tighten the bolts (Figure 99).
Figure 99
MVC-346X
