Changing the Front Axle
Lubricant
After every 800 hours of operation the oil in the front axle
must be changed.
1. Position machine on a level surface.
2. Clean area around the drain plug (Fig. 54).
1

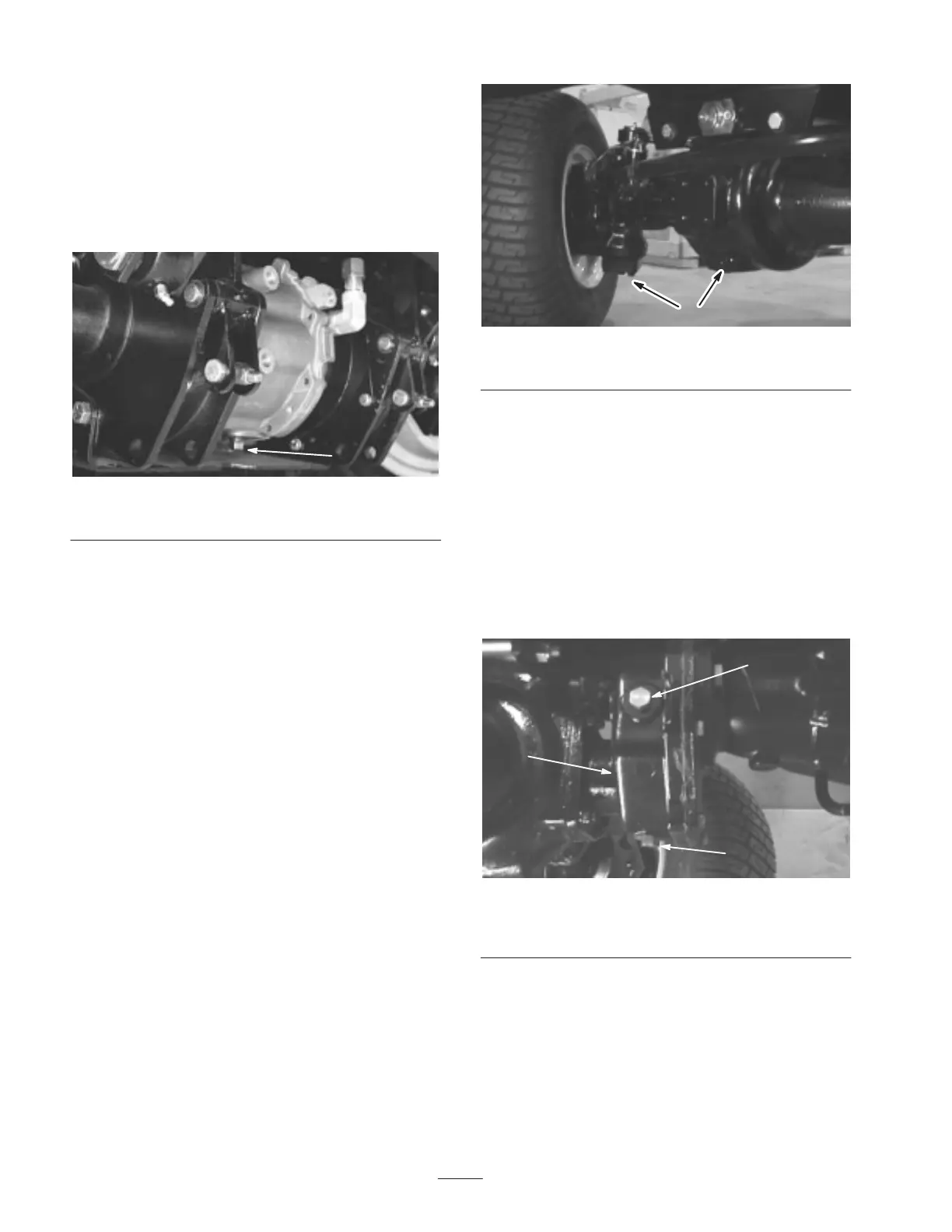

Figure 54
1. Front axle drain plug
3. Remove plug allowing oil to drain into drain pans.
4. After oil is drained, reinstall drain plug into axle.
5. Fill axle with lubricant; refer to Checking the Front
Axle Oil Level, page 13.
Changing the Rear Axle
Lubricant (Model 30455 Only)
After every 400 hours of operation the oil in the rear axle
must be changed.
1. Position machine on a level surface.
2. Clean area around the 3 drain plugs, one on each end
and one in the center (Fig. 55).
3. Remove plugs allowing oil to drain into drain pans.
4. After oil is drained, apply thread sealing compound
on drain plug threads and reinstall in axle.
5. Fill axle with lubricant; refer to Checking the Rear Axle
Lubricant, page 13.
1
Figure 55
1. Drain plugs (3)
Changing the Bidirectional
Clutch Lubricant
(Model 30455 Only)
After every 800 hours of operation the oil in the clutch
housing must be changed.
1. Position the machine on a level surface.
2. Remove drain plug from clutch housing (Fig. 56)
allowing fluid to drain into drain pan.
1
2
3
Figure 56
1. Clutch housing
2. Check/fill plug
3. Drain plug
3. After fluid is drained, reinstall drain plug.
4. Remove check/fill plug and add 8 oz. of Mobil DTE
15 M anti-wear hydraulic fluid.
Note: Do not use gear lube in clutch housing.
5. Install check/fill plug.
