Install Cutting Unit Lift Latch
1. Rotate latches and remove control panel cover (Fig. 2).
2. Under front of control panel, locate ends of capscrews
securing control panel to frame (Fig. 2).
3. Insert left hand latch bracket up thru lift lever slot and
onto capscrew. Loosely secure with 1/4–20 flange nut
(Fig. 2).
4. Insert right hand latch bracket up thru lift lever slot and
onto capscrew. Loosely secure with 1/4–20 flange nut
(Fig. 2).
5. On top of control panel, insert each end tab of lift latch
into holes in latch brackets (Fig. 2). Tighten flange nuts.
1
5
4
6
3
2

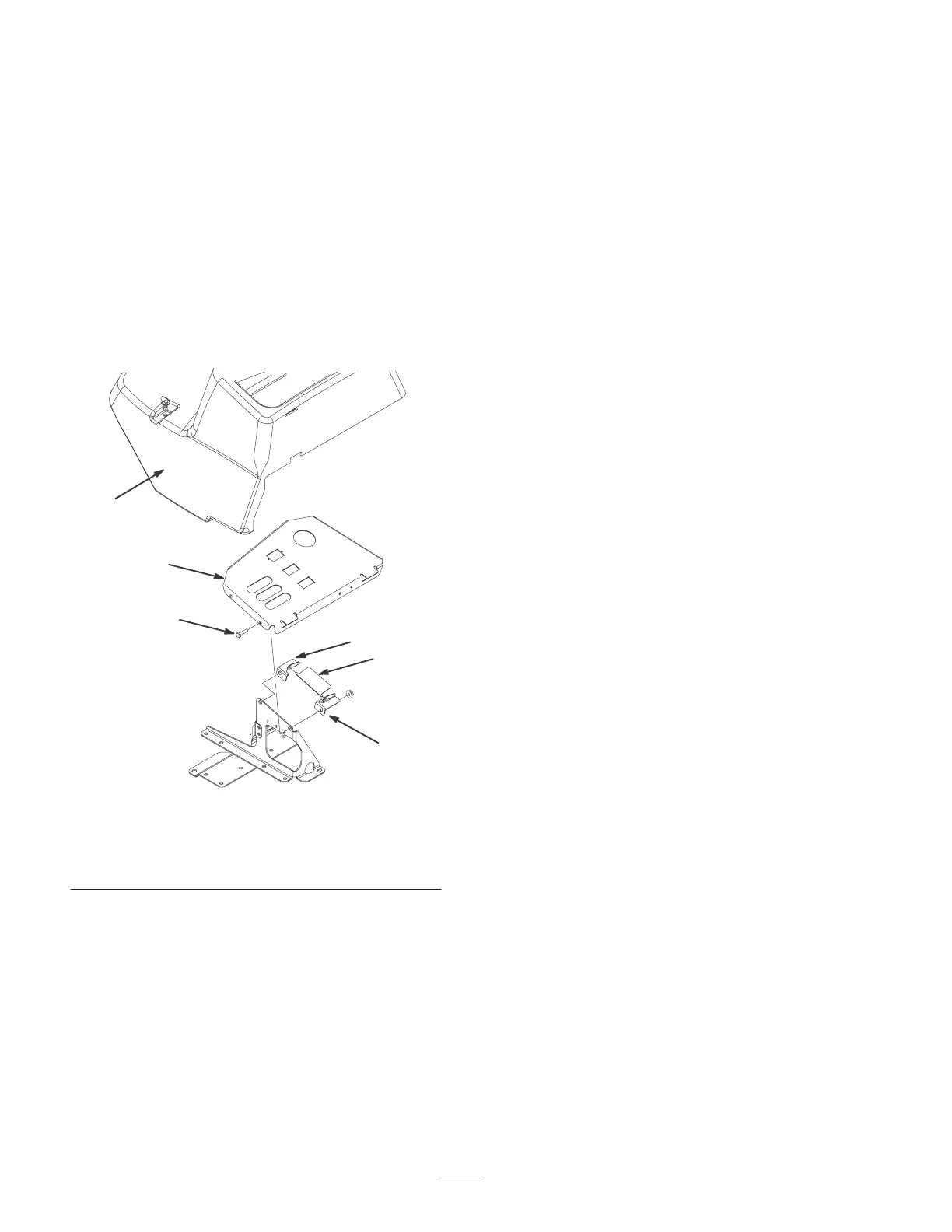

Figure 2
1. Control panel cover
2. Control panel
3. Capscrews
4. L.H. latch bracket
5. R.H. latch bracket
6. Lift latch
