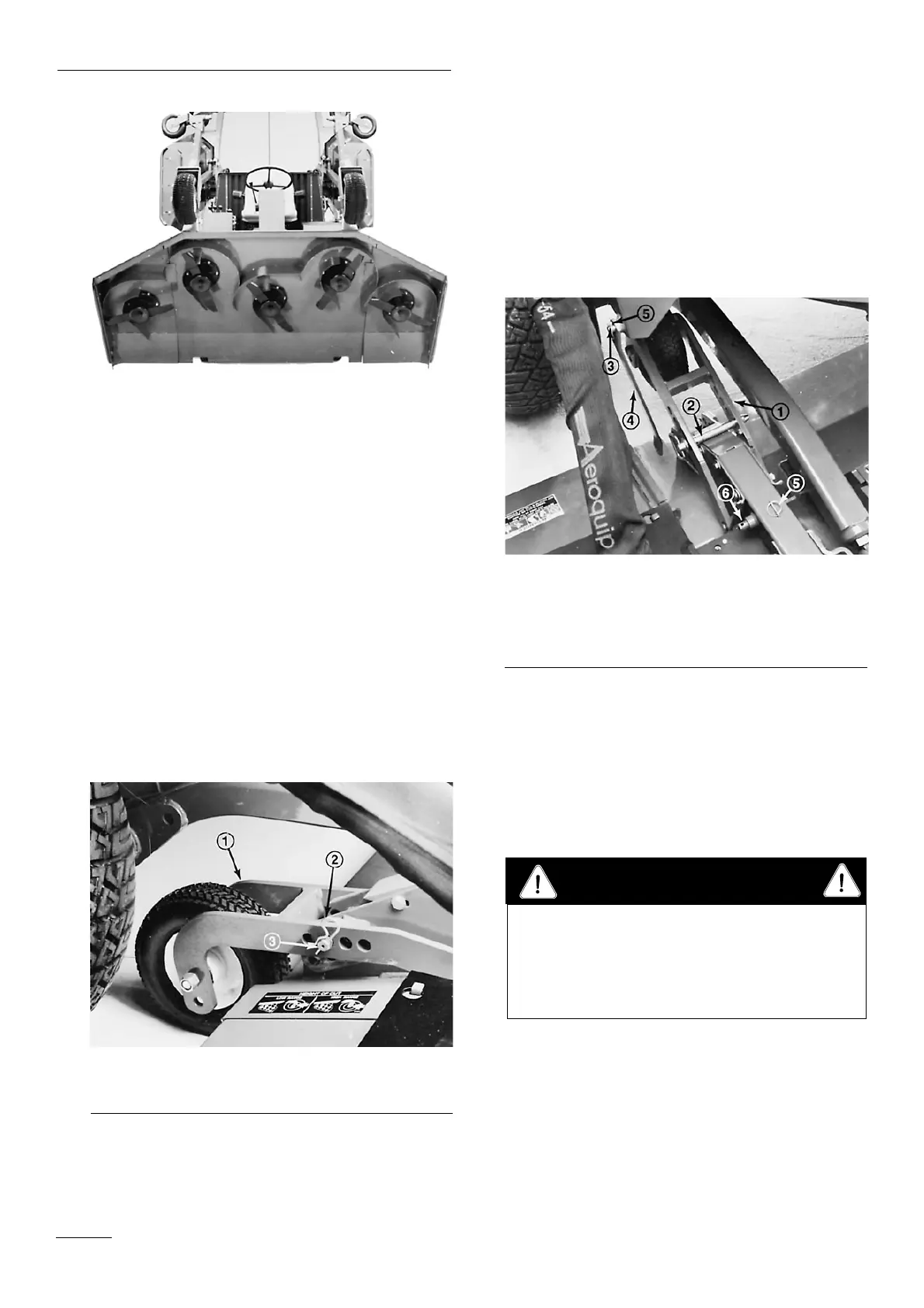

Figure 56
To Pivot (Tilt) the Cutting Unit Upright:
1. Position the front cutting unit so the rear castor
wheels just clear the floor, set the parking brake and
shut off the engine.
2. Remove the deck tilt link from the tool box under
the traction unit floor (Fig. 53) and klik pins from
the weldments on the traction unit frame and
cutting unit lift arm.
3. Remove the hairpin cotters and clevis pins from the
(2) rear castor assemblies (Fig. 57). Set the left-
hand clevis pin aside and insert the right-hand clevis
pin into the most forward holes in the castor wheel
arm on the right side of the unit (Fig. 58). The
castor arm and pin should be resting on top of the
unit.
Figure 57
1. Rear Castor wheel assembly
2. Hair pin cotter
3. Clevis pin
4. Sit on the seat, start the engine and raise the cutting
unit to the full up position so the spring latch on the
left lift arm disengages from the cutting unit. Stop
the engine and remove the key from the ignition
switch.
5. Fit the deck tilt link over the weldment on the right
side of the traction unit and secure with a klik pin.
Position a link so it clears when the cutting unit is
raised. Keep the remaining klik pin handy to secure
the opposite end of the link to the cutting unit arm
weldment (Fig. 58).
Figure 58
1. Right rear castor wheel assembly
2. Clevis pin
3. Weldment
4. Deck tilt link
5. Klik pin (2)
6. Cutting unit arm weldment
6. Use at least one other person to tilt the cutting unit.
Grasp the front of the unit and lift it to an upright
position (Fig. 56).
7. Hold the unit upright, fit the link end over the pin
on the cutting unit lift arm weldment and secure
with a klik pin.
To Pivot the Cutting Unit down into Operating Position:
1. With the help of an assistant, hold the unit upright,
remove the klik pin securing the link end and
remove link end from the weldment.
2. Pivot (tilt) the cutting unit downward.
Maintenance
40
The cutting unit is too heavy for one person to pivot
up or down. Use at least one other person to assist in
lifting or lowering the unit. Always use proper
lifting techniques and hold unit securely when
pivoting it up or down.
