HYDRO-GEAR TRANSAXLE
4 - 14 TimeCutter
Z Service Manual

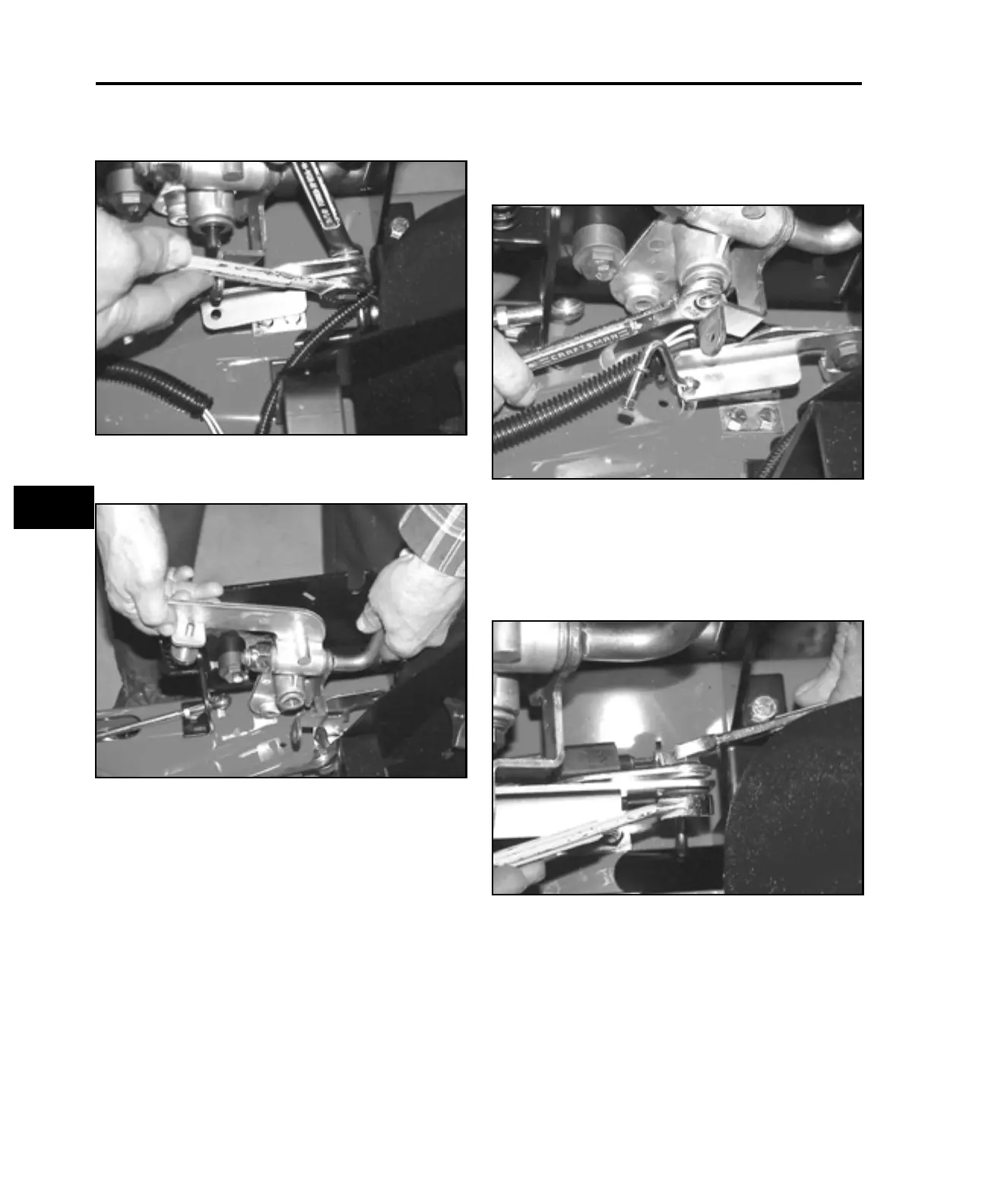

7. Remove the bolt and nut holding the bellcrank and
remove (Figure 71).
Figure 71
mvc-158
8. Slide the actuator off the welded stud (Figure 72).
Figure 72
mvc-159
Actuator Arm Installation
1. Slide the actuator on the welded stud and install a
washer and nut and tighten (Figure 73).
Figure 73
mvc-155
2. Install the park brake switch in the lower bellcrank
bracket and plug in the wire connector.
3. Install the bellcrank with bolt and nut. The washer
gets installed between the brackets (Figure 74).
Figure 74
mvc-161
4
