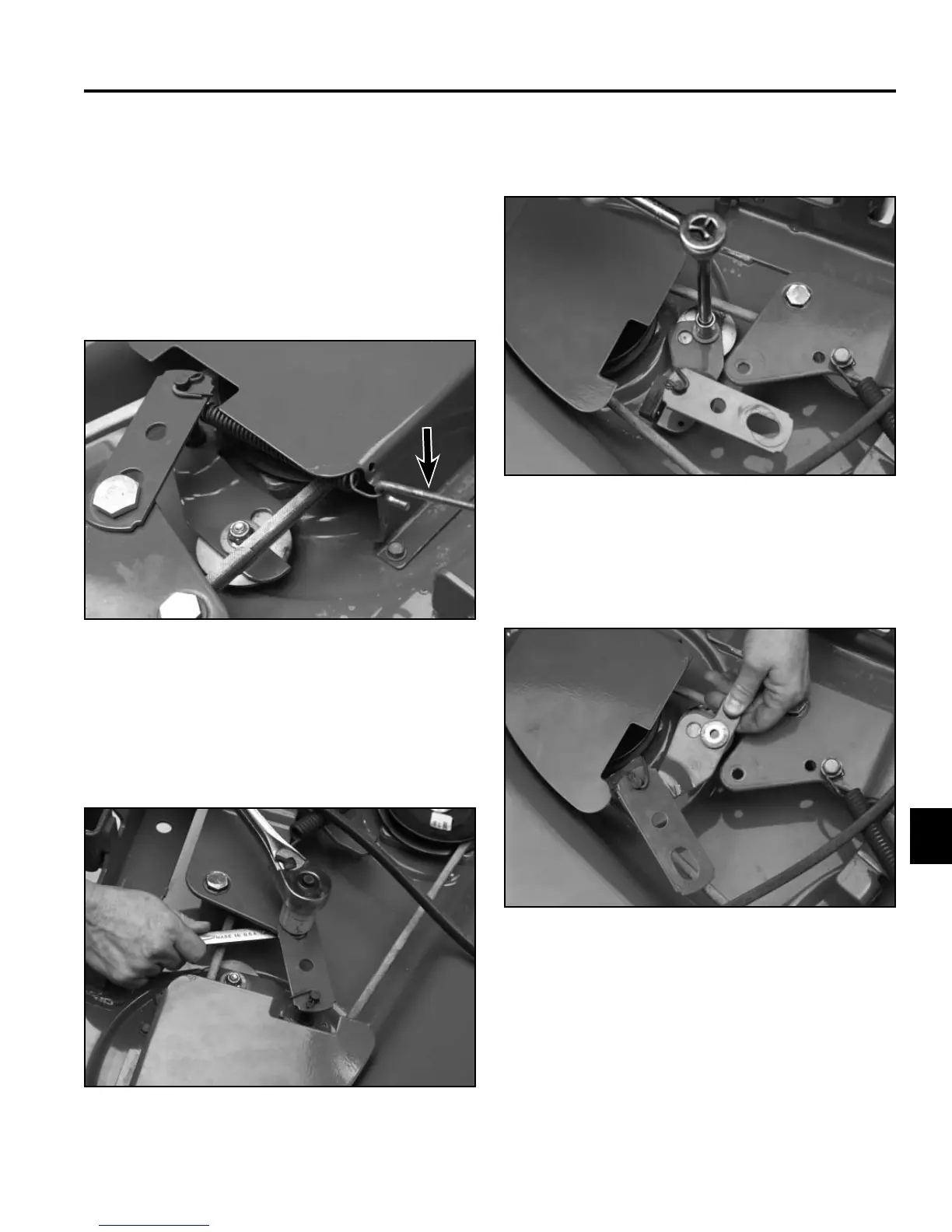

46” Mower Deck - Brake Assembly
Removal
1. Remove the mower deck from the tractor. Refer to
“46” Mower Deck Removal”, page 7-69.
2. Remove the extension spring between the right hand
belt cover and the brake pin (Fig. 613).
4. Loosen and remove the bolt and nut from the brake
assembly bracket (Fig. 615).
Fig 613 PICT-7851
Fig 615 PICT-7915
5. Remove the small shoulder spacer and the brake
bracket from the deck (Fig. 616).
3. Remove the shoulder bolt and nut from the brake
bracket and the right hand idler bracket (Fig. 614).
Fig 616 PICT-7916
Fig 614 PICT-7914
A. Spring removal tool (Toro P/N 92-5771)
A
A
