HighViscosityIndex/LowPourPoint
Anti-wearHydraulicFluid,ISOVG46(cont'd.)
PourPoint,ASTMD97-37°Cto-45°C(-34°F
to-49°F)
IndustrySpecications:EatonVickers694(I-286-S,
M-2950-S/35VQ25or
M-2952-S)
Note:Manyhydraulicuidsarealmostcolorless,
makingitdifculttospotleaks.Areddyeadditivefor
thehydraulicuidisavailablein20ml(0.67oz)
bottles.Abottleissufcientfor15to22L(4to6US
gallons)ofhydraulicuid.OrderPartNo.44-2500
fromyourauthorizedTorodistributor.
Important:ToroPremiumSynthetic
BiodegradableHydraulicFluidistheonly
syntheticbiodegradableuidapprovedbyToro.
Thisuidiscompatiblewiththeelastomersused
inTorohydraulicsystemsandissuitablefora
wide-rangeoftemperatureconditions.Thisuidis
compatiblewithconventionalmineraloils,butfor
maximumbiodegradabilityandperformance,the
hydraulicsystemshouldbethoroughlyushedof
conventionaluid.Theoilisavailablein19L(5
USgallons)pailsor208L(55USgallons)from
yourauthorizedTorodistributor.
CheckingtheHydraulic
Fluid
ServiceInterval:BeforeeachuseordailyCheckthe
levelofthehydraulicuidbefore
theengineisrststartedanddaily
thereafter.
Important:Iftheuidbecomescontaminated,
contactanauthorizedTorodistributortohavethe
systemushed.
Contaminateduidlooksmilkyorblackwhen
comparedtocleanuid.
1.Positionthesprayeronalevelsurface,engage
theparkingbrake,shutoffthespraypump,shut
offtheengine,andremovethekey.
2.Cleantheareaaroundthehydraulic-uid-tank
dipstickcapandremoveit(Figure96).

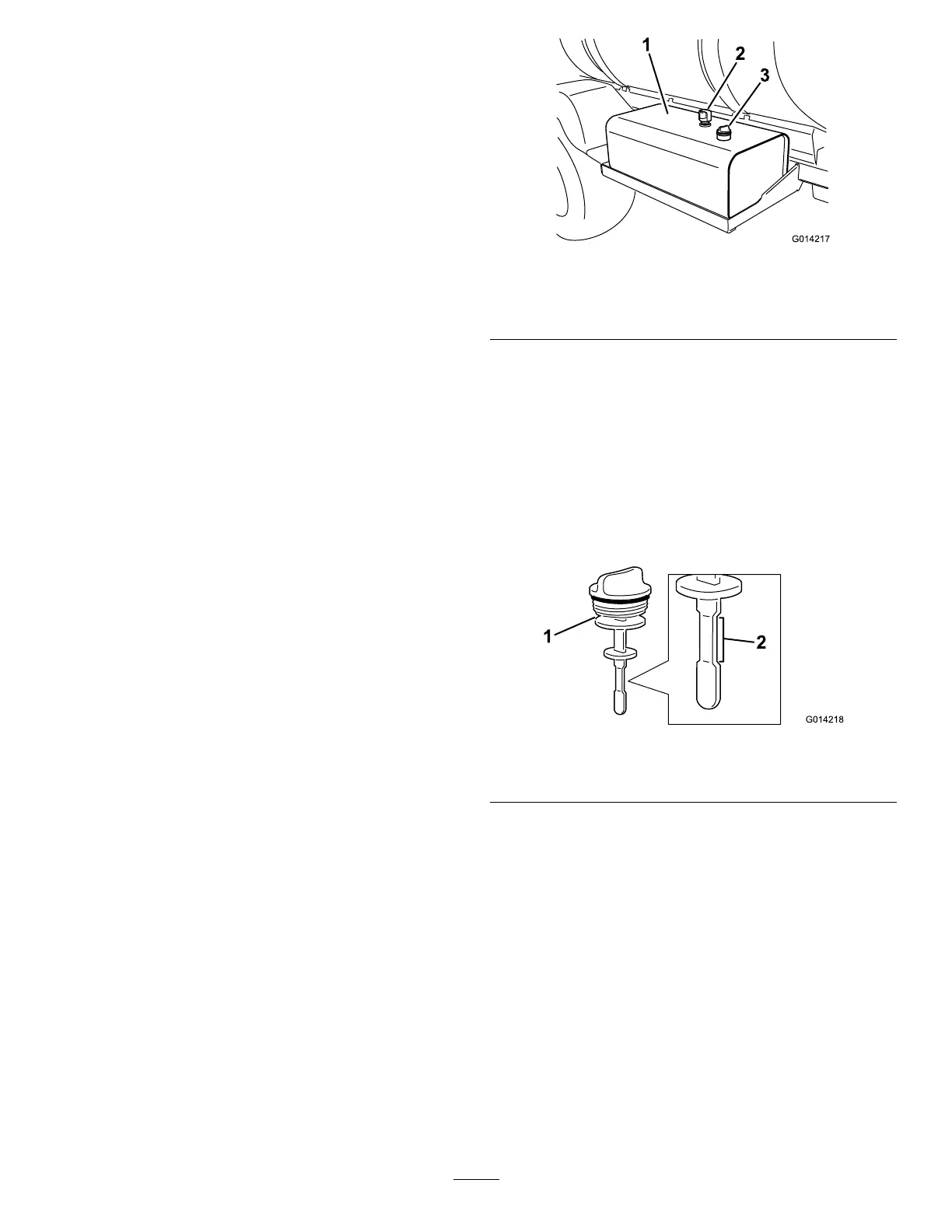

g014217
Figure96
1.Hydraulic-uidtank
3.Dipstickcap
2.Vent
Important:Beverycarefulnottogetdirtor
othercontaminantsintotheopeningwhen
checkingtheuid.
3.Wipethedipstickcleanwithaclothandreplace
itcompletelyinthetank.
4.Removethedipstickfromthellerneckand
checktheuidlevel(Figure97).
Note:Theuidlevelshouldbeatthelower
markonthedipstickwhentheuidiscold.
g014218
Figure97
1.Dipstick
2.Safe-operatingrange
5.Iftheuidislow,llthetankwiththespecied
hydraulicuidtoraisetheleveltothelower
mark;refertoHydraulicFluidSpecications
(page71).
6.Installthedipstickcapintothetankandsecure.
ReplacingtheHydraulic
Filters
ServiceInterval:Every1,000hours—Ifyou
areusingtherecommended
hydraulicuid,replacethe
hydrauliclter.
Every800hours—Ifyouarenotusingthe
recommendedhydraulicuidorhaveever
72
