RemovingtheMowerDeck
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Lowertheheight-of-cutlevertothelowest
position.
4.Removethehairpincotterfromthefrontsupport
rod,andremovetherodfromthedeckbracket
(Figure66).

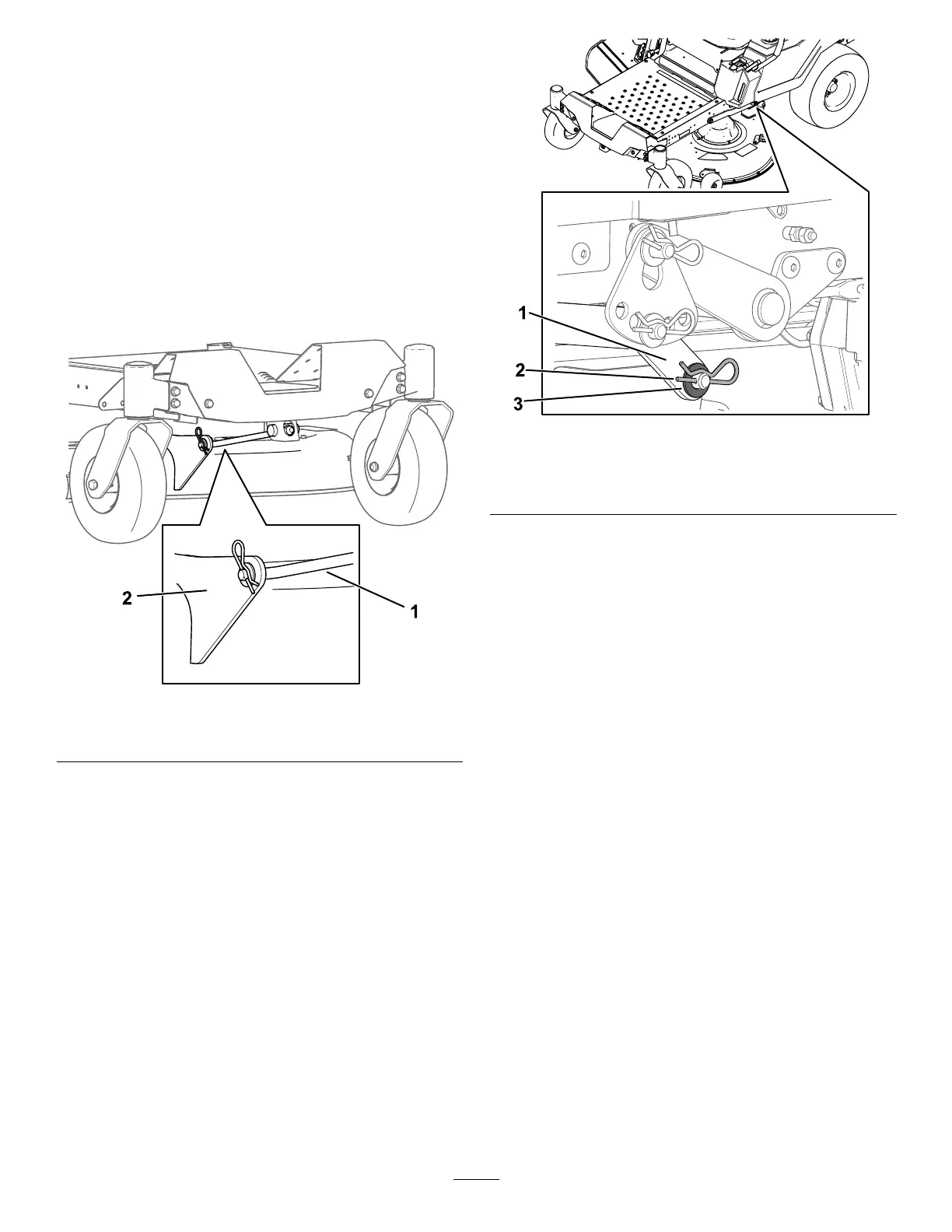

g366001
Figure66
1.Frontsupportrod2.Deckbracket
5.Carefullylowerthefrontofthemowerdeckto
theground.
6.On1sideofthemachine,removethewasher
andhairpincotterfromthedeckpin(Figure67).
g295768
Figure67
1.Liftarm
3.Washer
2.Hairpincotter
7.Removetheliftarmfromthedeckpin(Figure
67).
8.Repeatsteps6and7fortheothersideofthe
machine.
9.Slidethemowerdeckrearwardtoremovethe
mowerbeltfromtheenginepulley.
10.Slidethemowerdeckoutfromunderneaththe
machine.
Note:Retainallpartsforfutureinstallation.
InstallingtheMowerDeck
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Slidethemowerunderthemachine.
4.Lowertheheight-of-cutlevertothelowest
position.
5.On1sideofthemachine,lifttherearofthe
mowerdeckandinstalltheliftarmtothedeck
pin(Figure67).
6.Installtheliftarmusingthewasherandhairpin
cotter(Figure67).
7.Repeatsteps5and6fortheothersideofthe
machine.
46
