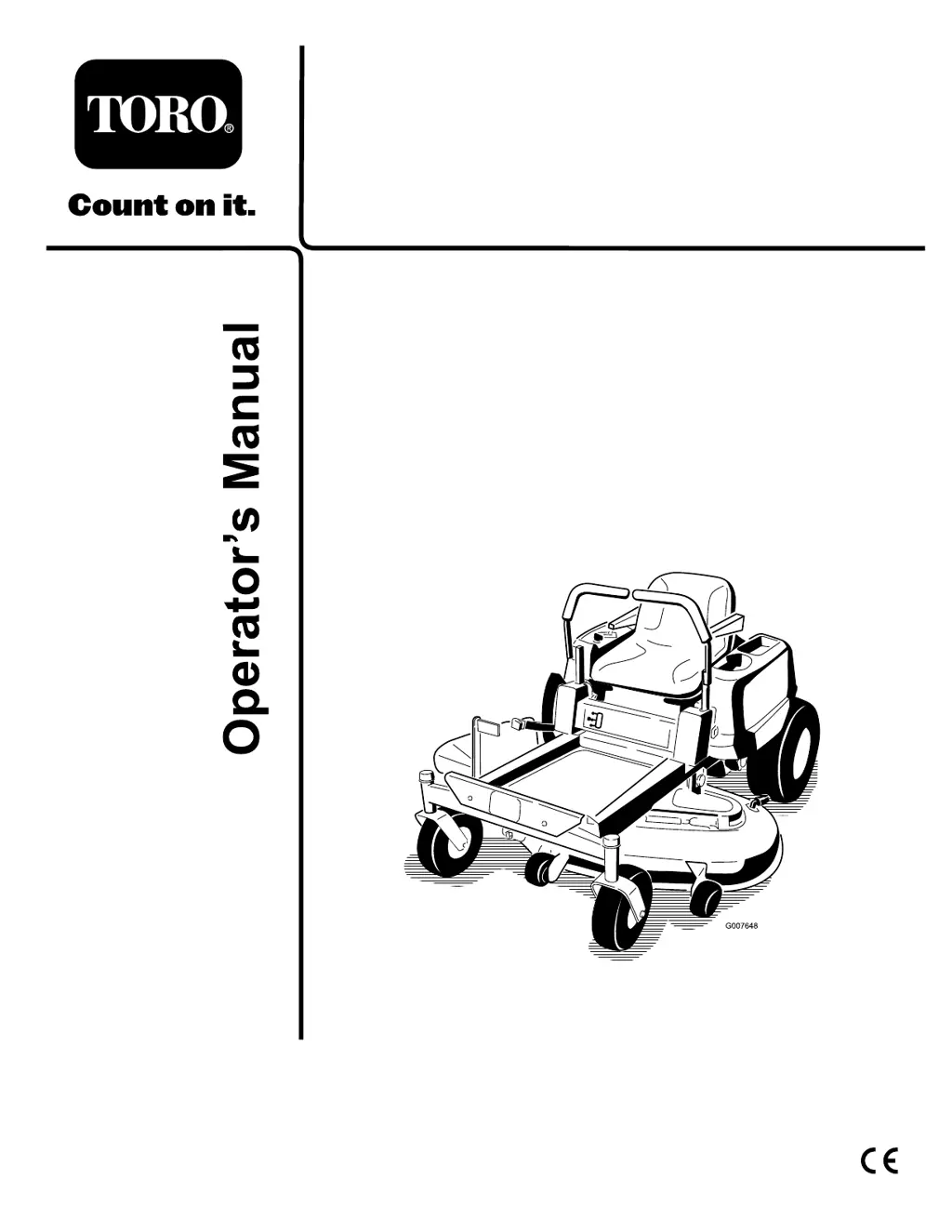

Toro TimeCutter Z4200 User Manual

Name: Toro TimeCutter Z4200
Brand: Toro
Rating: 4 (1 reviews)

52 pages

To Next Page

FormNo.3361-182RevA

TimeCutter

Z4200andZ5000

RidingMower

ModelNo.74380—SerialNo.290000001andUp

ModelNo.74391—SerialNo.290000001andUp

Registeratwww.Toro.com.OriginalInstructions(EN)

Table of Contents2
Introduction2
Safety3
Safe Operation Practices for Ride-On (Riding) Rotary Lawnmower Machines3
Safe Operating Practices3
Toro Riding Mower Safety5
Model 743805
Model 743916
Slope Chart7
Safety and Instructional Decals8
Product Overview12
Controls13
Operation14
Think Safety First14
Recommended Fuel14
Checking the Engine Oil Level16
Starting the Engine16
Operating the Blades17
Stopping the Engine18
The Safety Interlock System18
Driving Forward or Backward19
Stopping the Machine20
Adjusting the Height of Cut20
Positioning the Seat20
Adjusting the Motion Control Levers20
Pushing the Machine by Hand21
Grass Deflector22
Converting to Side Discharge (for Models with 42 Inch Decks)22
Converting to Side Discharge (for Models with 50 Inch Decks)23
Operating Tips24
Maintenance26
Recommended Maintenance Schedule(S)26
Premaintenance Procedures27
Raising the Seat27
Accessing the Battery27
Lubrication27
Greasing the Bearings27
Engine Maintenance28
Servicing the Air Cleaner28
Servicing the Engine Oil29
Servicing the Spark Plug31
Cleaning the Blower Housing31
Fuel System Maintenance32
Replacing the Fuel Filter32
Electrical System Maintenance33
Charging the Battery33
Servicing the Fuses34
Drive System Maintenance35
Checking the Tire Pressure35
Mower Maintenance36
Servicing the Cutting Blades36
Leveling the Mower Deck38
Removing the Mower40
Mower Belt Maintenance41
Installing the Mower42
Replacing the Grass Deflector42
Cleaning43
Washing the Underside of the Mower43
Storage44
Cleaning and Storage44
Troubleshooting46
Schematics48
