Figure 18
1. Lift Assist Lever
Adjusting the Anti-Scalp
Rollers
W henev er y ou c hang e the height-of-cut, it is
recommended to adjust the height of the anti-scalp
rollers .
1. Diseng ag e the PTO , mo v e the motion control
lev ers to the neutral loc k ed position and set
the parking brak e .
2. Stop the engine , remo v e the k ey , and w ait for
all mo ving par ts to stop before lea ving the
operating position.
3. After adjusting the height-of-cut, adjust the
rollers b y remo ving the flang e n ut, bushing,
spacer , and bolt ( Figure 19 , Figure 20 and
Figure 21 ).
Note: T he tw o middle rollers will not ha v e a
spacer ( Figure 20 ).
4. Select a hole so the anti-scalp roller is
positioned to the nearest cor responding
height-of-cut desired.
5. Install the flang e n ut bushing, spacer , and bolt.
T or que to 40-45 ft-lb (54-61 N•m) ( Figure 19 ,
Figure 20 and Figure 21 ).
6. R e peat this adjustment on the other anti-scalp
rollers .

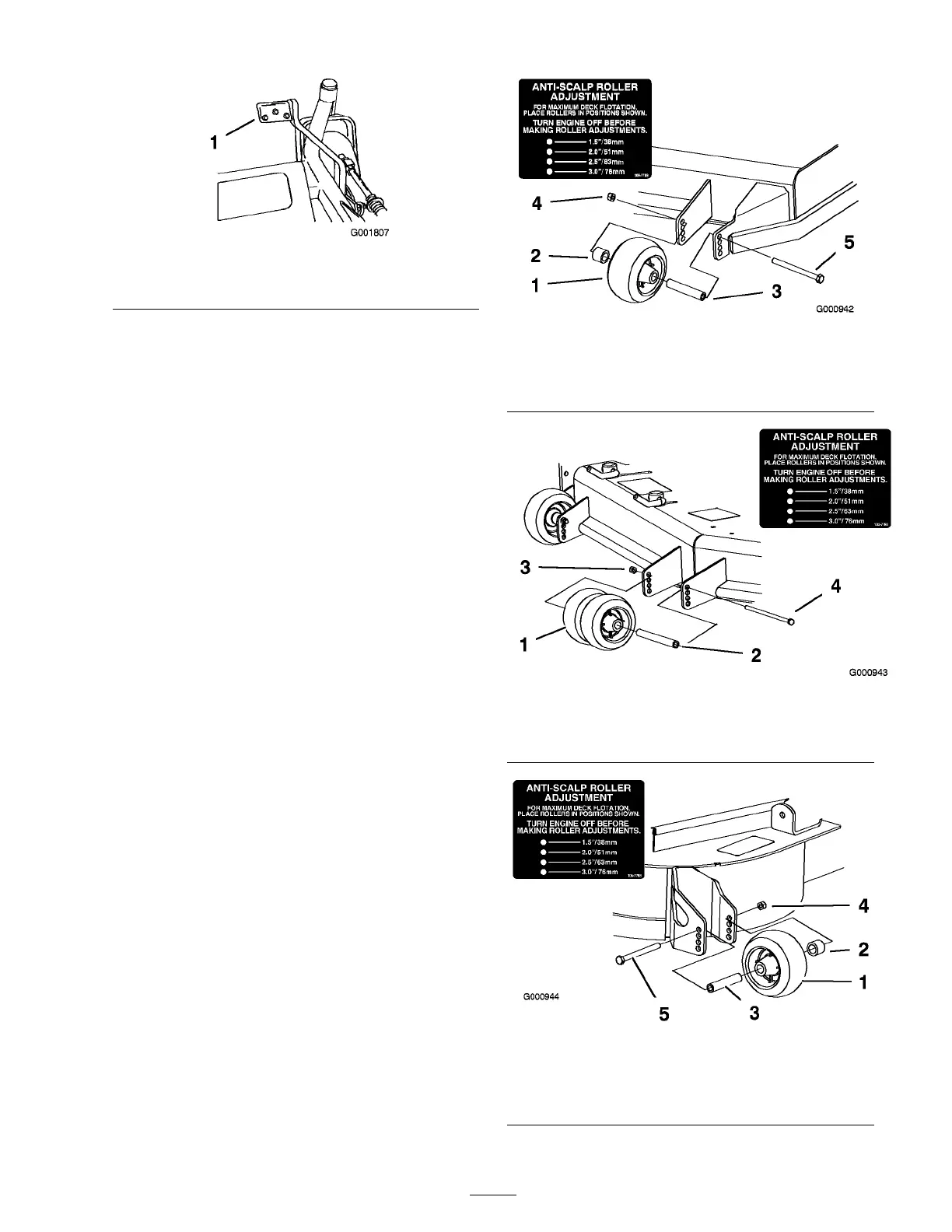

Figure 19
1. Anti-scalp roller 4. Flange Nut
2. Spacer
5. Bolt
3. Bushing
Figure 20
1. Anti-scalp roller 3. Flange Nut
2. Bushing 4. Bolt
Figure 21
1. Anti-scalp roller 4. Flange Nut
2. Spacer
5. Bolt
3. Bushing
23
