e-STUDIO162/162D/151/151D UNPACKING AND INSTALLATION 5 - 2

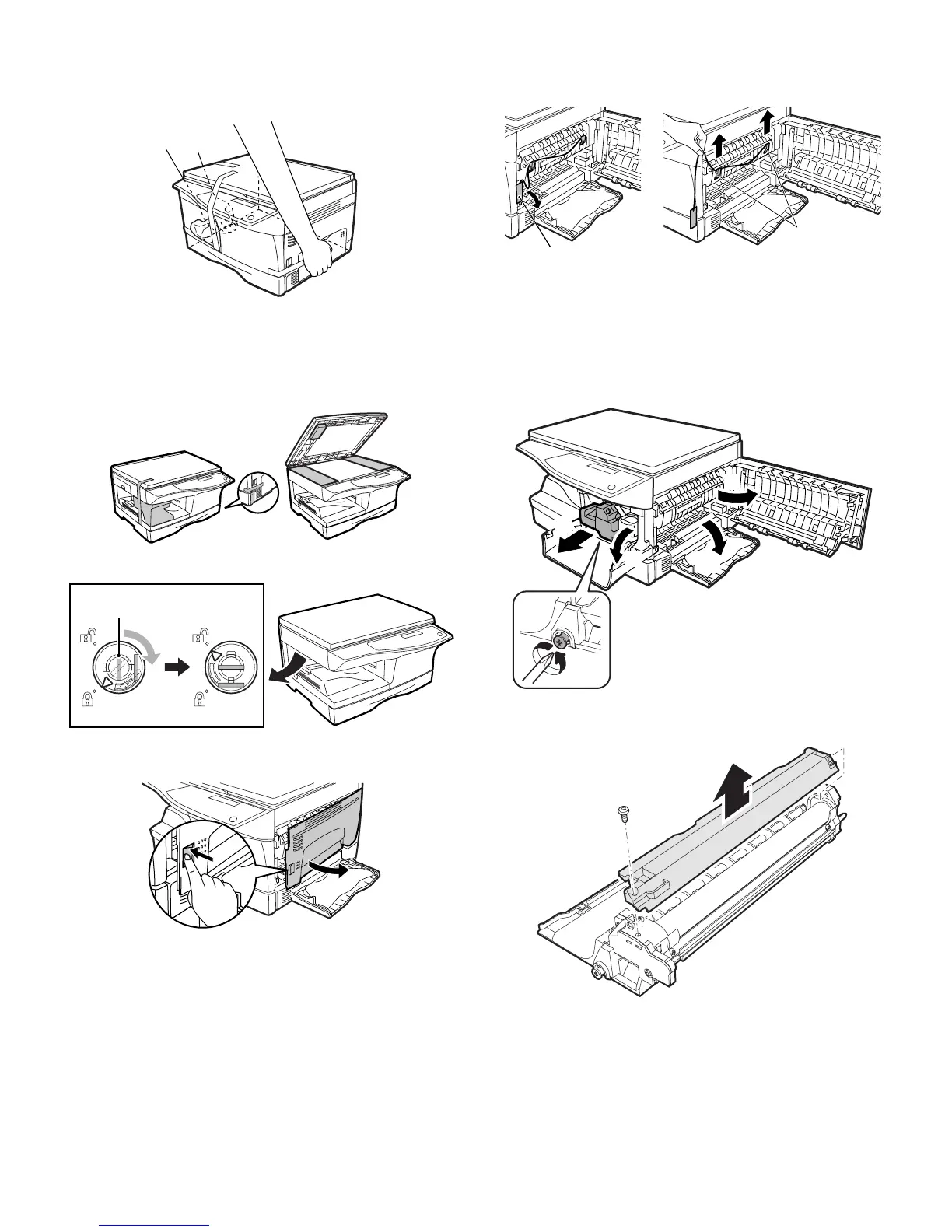

4. Unpacking
Be sure to hold the handles on both sides of the machine to unpack the
machine and carry it to the installation location.
5. Removing protective packing materials
1) Remove all pieces of tape shown in the illustration below and then
open the ADF/RADF and remove the protective materials. Take out
the bag containing the toner cartridge.
2) Release the scan head locking switch.
3) Open the bypass tray, and then open the side cover while pressing
the side cover open button.
4) Remove the CAUTION tape from the front cover and remove the
two protective pins from the fusing machine by pulling the strings
upward one at a time.
6. Developer unit installation
1) 2) 3) Open the side and front cabinets of the copier.
4) Remove the locking tape of the developer unit.
5) Remove the screw which is fixing the copier and Developer unit.
6) Remove Developer unit slowly from the copier.
7) Remove the screw (1 pc).
8) Remove Upper developer unit.
Lock Unlock
Grasp here and turn in
the direction of the arrow.
CAUTION tape
Protective pins
1
3
5
2
4
e-STUDIO162_151.book 2 ページ ２００４年１２月２日 木曜日 午後９時３７分
To Next Page
