E6582051
- 14 -

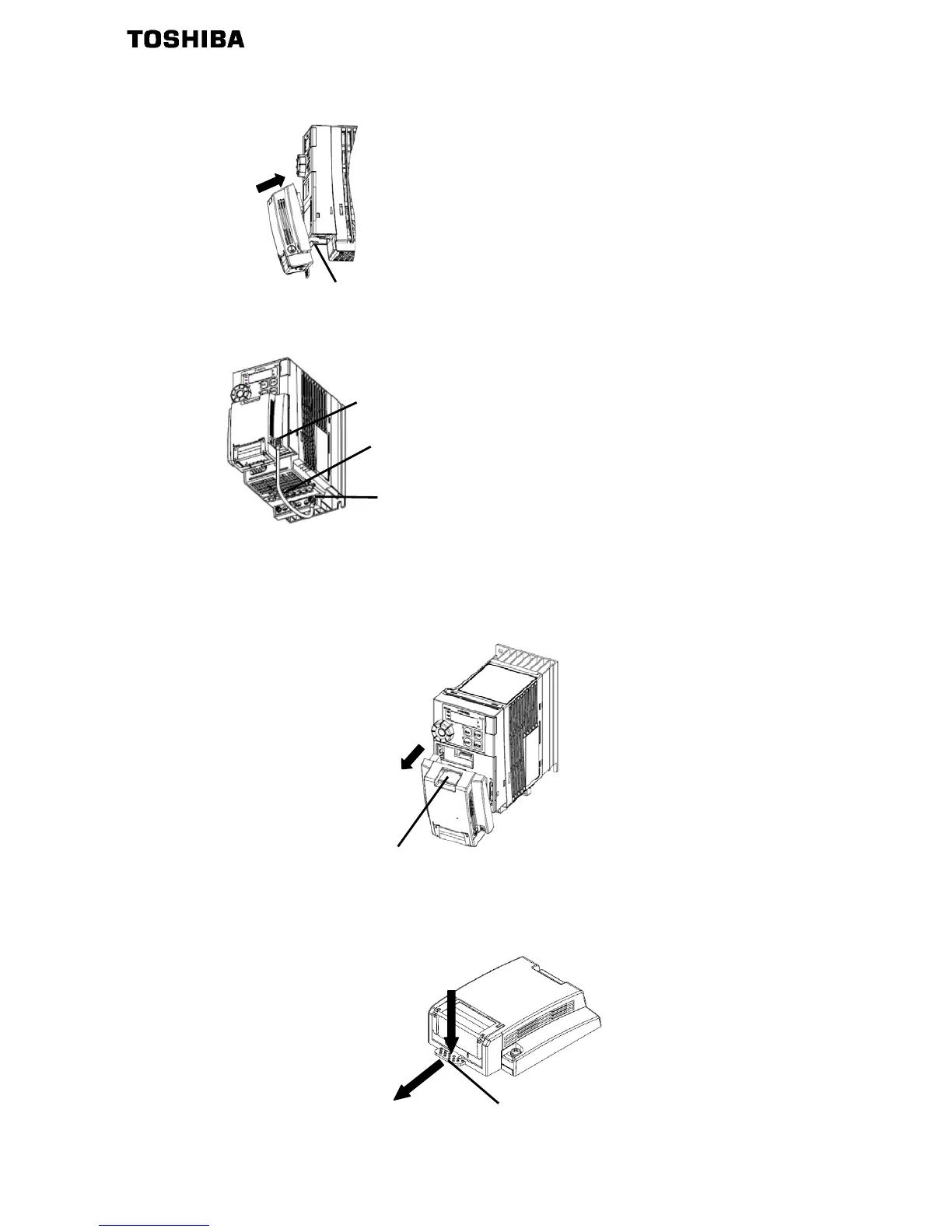

4. Hang the hook of option adapter on the control terminal cover.
Insert the connector in the direction of arrow
3.1.1.2. Earth wire wiring
3.1.1.3. Removing of option
1. Remove the connector in the direction of arrow while pushing the release tab.
2. Remove an option in the direction of arrow ② while pushing the release tab in the direction of arrow ①.
Connect attached grounding wire to grounding terminal of inverter.
Grounding terminal of inverter
Grounding terminal of option adapter
Recommended tightening torque: 0.5N m
Release tab
Release tab
Hook
①
②

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
