Toyota 2004 ECHO User Manual

192 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
! Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.

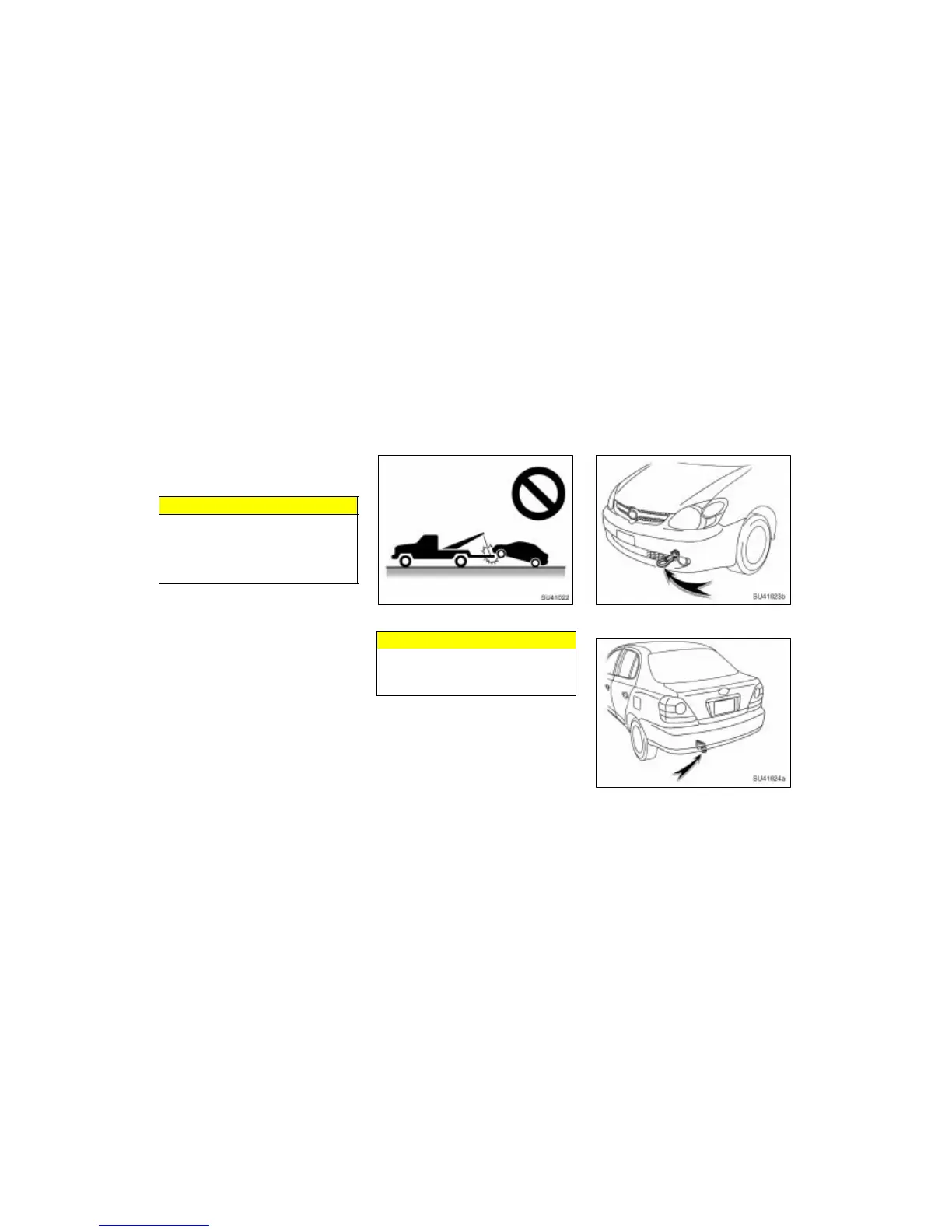

(b) Using flat bed truck
SU41022
(c) Towing with sliding type
truck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
—Emergency towing
SU41023b
Front
SU41024a
Rear
04 01.06
