2005 SOLARA from Sep. ’04 Prod. (OM33690U)
Discharged battery
Booster
battery
Jumper cable
Positive terminal
(“+” mark)
Positive
terminal
(“+” mark)

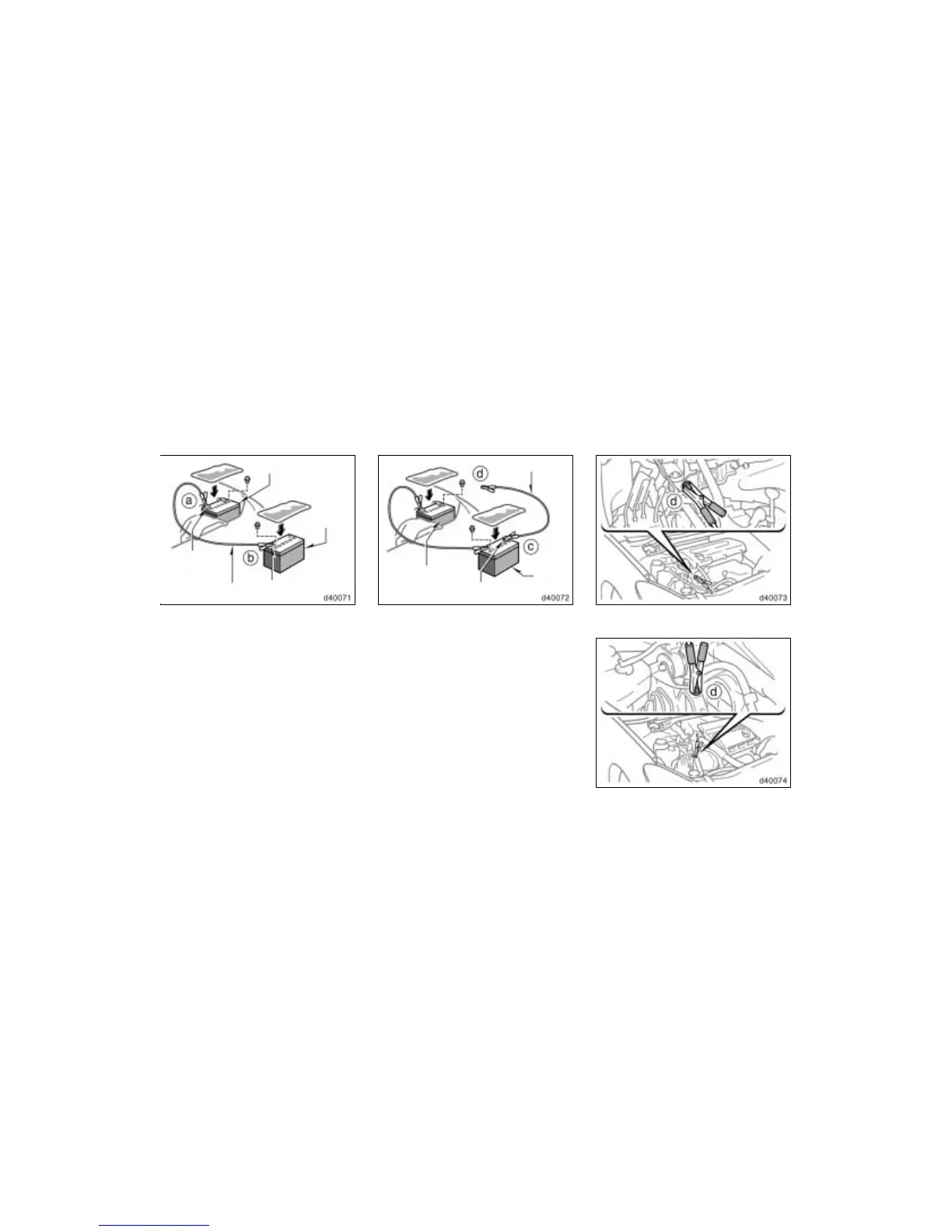

4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal on the discharged battery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
Discharged battery Booster
battery
Jumper cable
Negative terminal
(“- ” mark)
c. Connect the clamp of the negative
(black) jumper cable to the negative (- )
terminal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting points
are shown in the following illustrations:
Connecting point for 2AZ- FE engine
Connecting point for 3MZ- FE engine
