TP-Link AV200 User Manual

TL-PA211 AV200 Powerline Adapter
6
)
Note:
1. If the pair button is pressed till all the LEDs turn off (about 10 seconds), the Powerline Adapter will
leave the network which it is associated with and its network name assumes a random value. The
Power LED turns off when it disconnects from the Powerline network.
2. For detailed information about the Pair button, please refer to Chapter 5 Advanced Feature: How to
Use the Pair Button.
2.4 Connection Instruction
To ensure the optimum performance of the Powerline Adapter and significantly improve the transmission
capacity of the network, we recommend that you comply with the following connection rule:

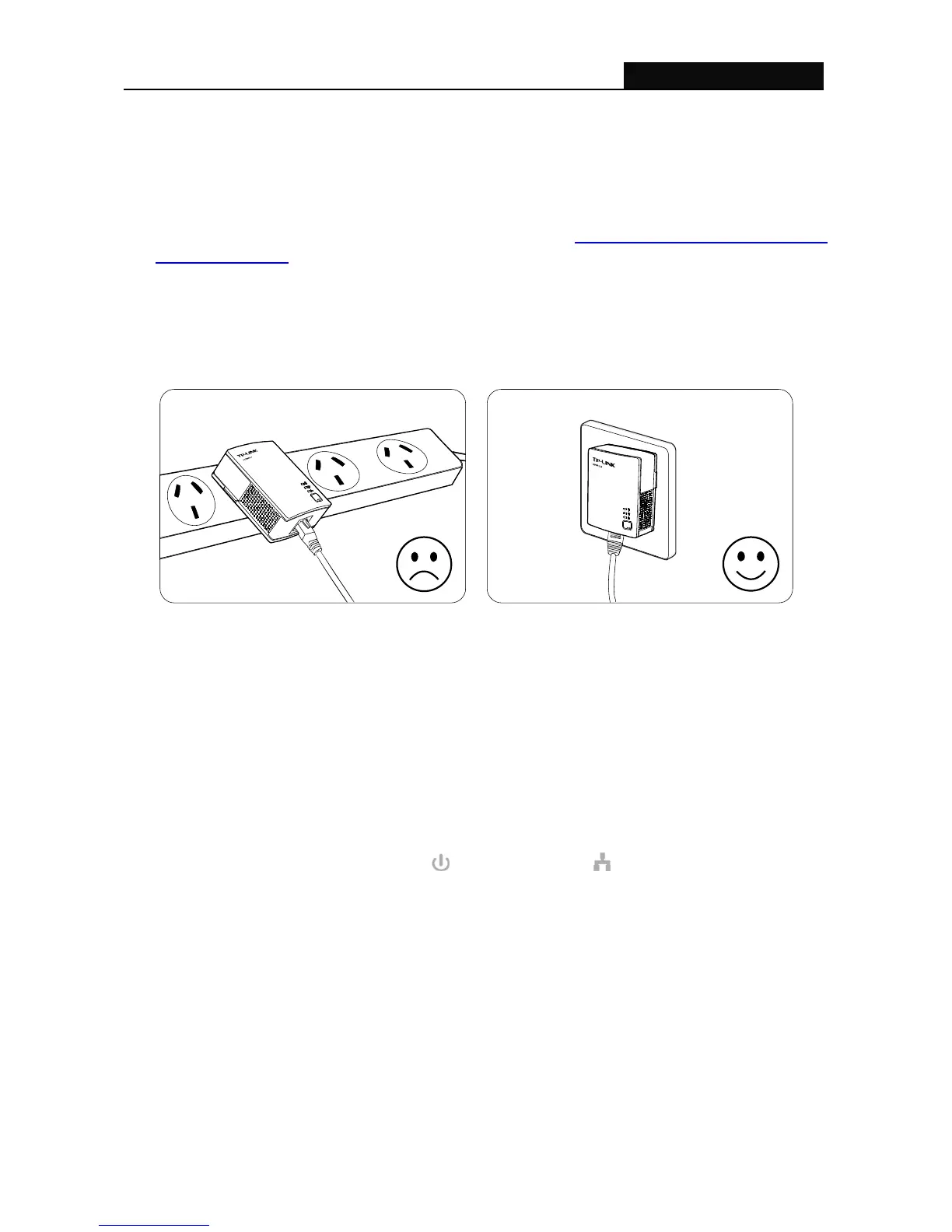

y Plug the Powerline Adapter directly into a wall socket but not the multiple sockets.
2.5 Hardware Connection – Computer
For those computers you wish to be networked by Powerline Adapter, each of the computers must be
properly connected with a Powerline Adapter through an Ethernet (RJ45) cable.
Following are the steps to properly connect the Powerline Adapter to your computer:
1． Connect one end of the provided Ethernet (RJ45) cable to the Powerline Adapter’s Ethernet port.
2． Connect the other end of the Ethernet (RJ45) cable to you computer’s LAN port.
3． Plug the Powerline Adapter into a wall socket next to the computer.
4． Turn on your computer.
5． Check and confirm that the Power LED
and Ethernet LED on the Powerline Adapter are
ON.
The hardware connection mechanism is shown below:

TP-Link AV200 Specifications

General

Wi-Fi	No
Modulation	OFDM
Power plug	-
Ethernet LAN	Yes
PowerLine standard	HomePlug AV
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	200 Mbit/s
Maximum operating distance	300 m
Ethernet LAN interface type	Fast Ethernet
Product color	White
Sustainability certificates	RoHS
Power consumption (typical)	1.6 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Quantity per pack	2 pc(s)

Weight and Dimensions

Depth	58 mm
Width	95 mm
Height	42 mm
